Diagnostic Procedures

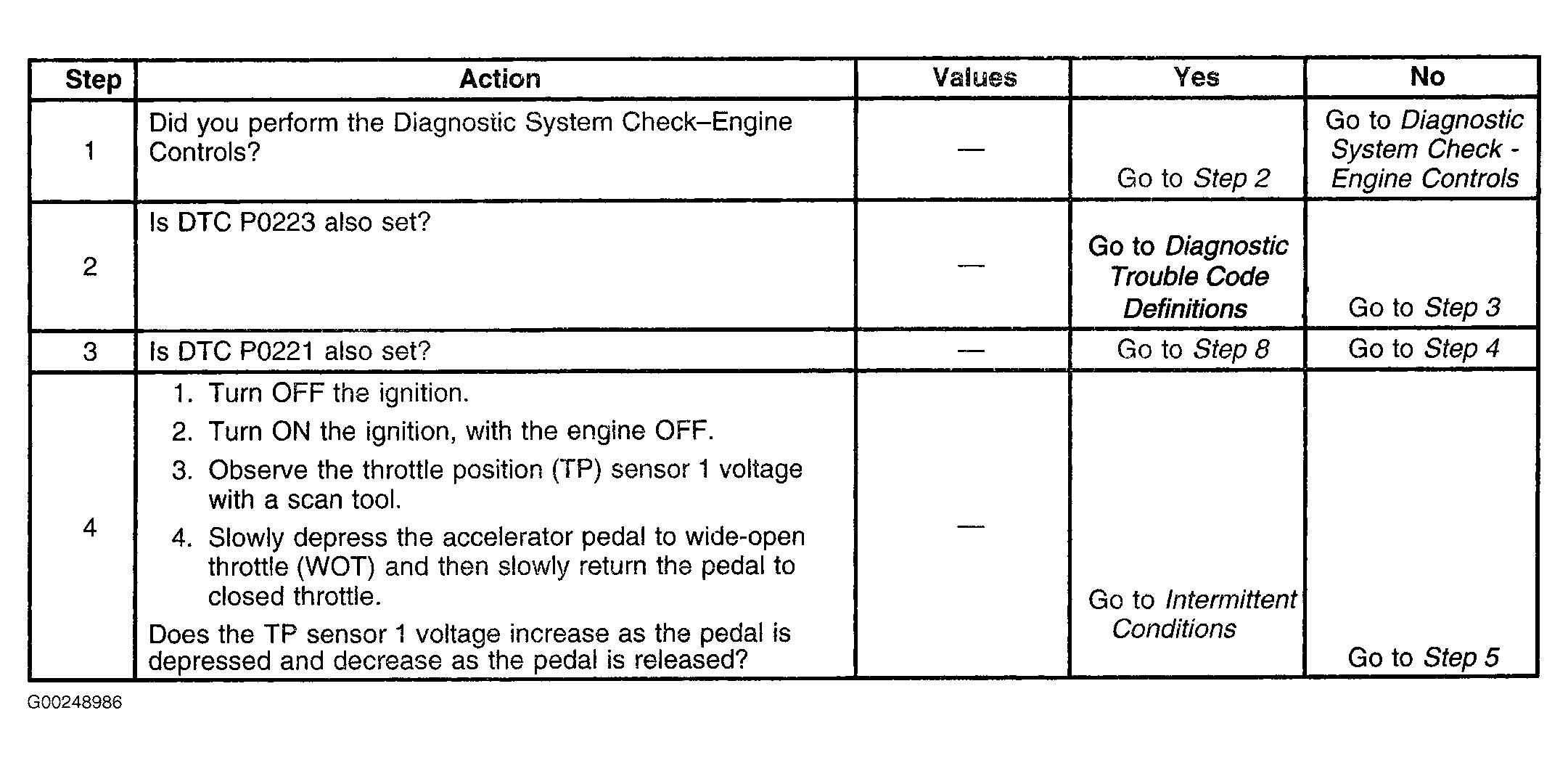

Fig 1: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 1-4)

Courtesy of GENERAL MOTORS CORP.

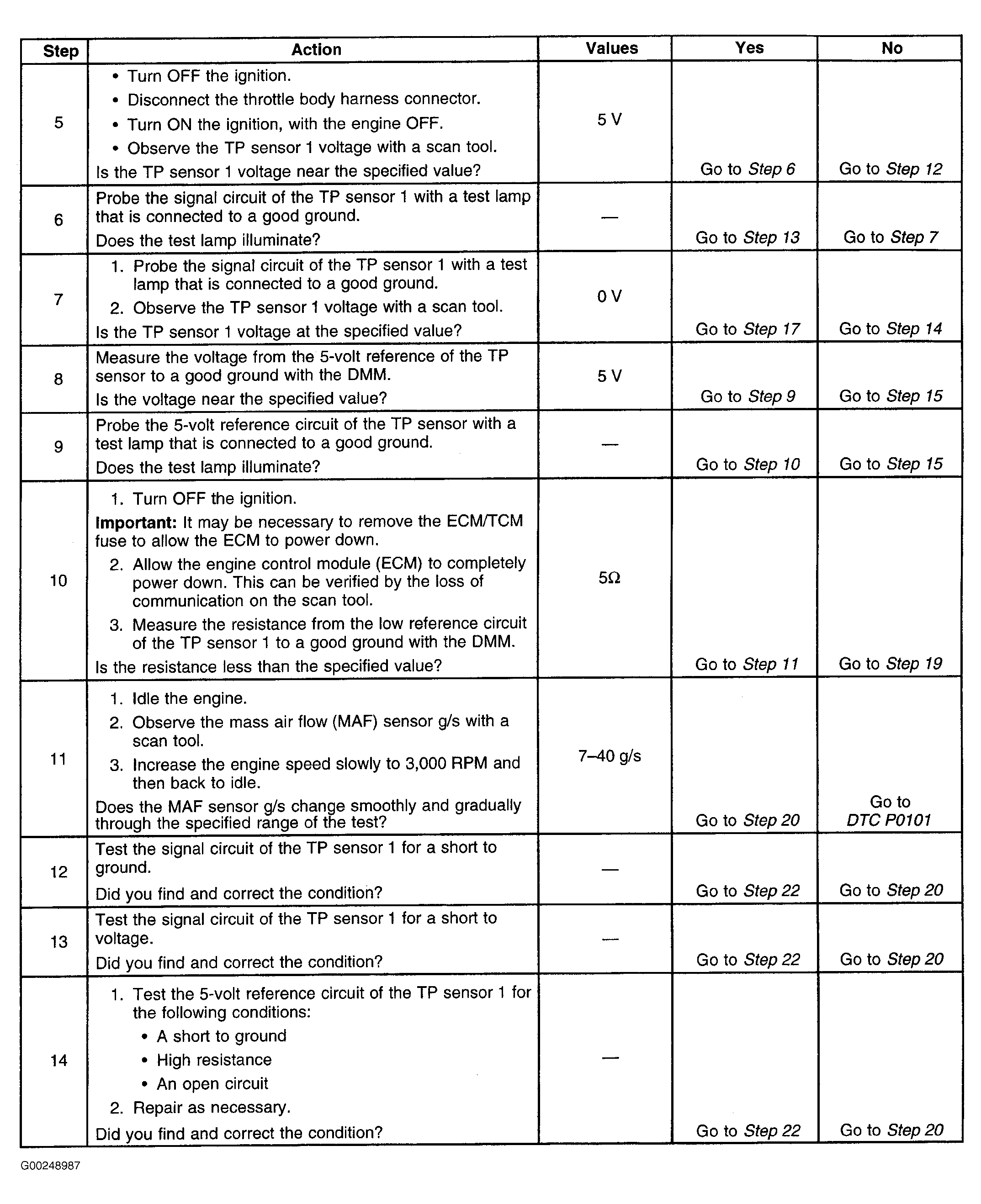

Fig 2: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 5-14)

Courtesy of GENERAL MOTORS CORP.

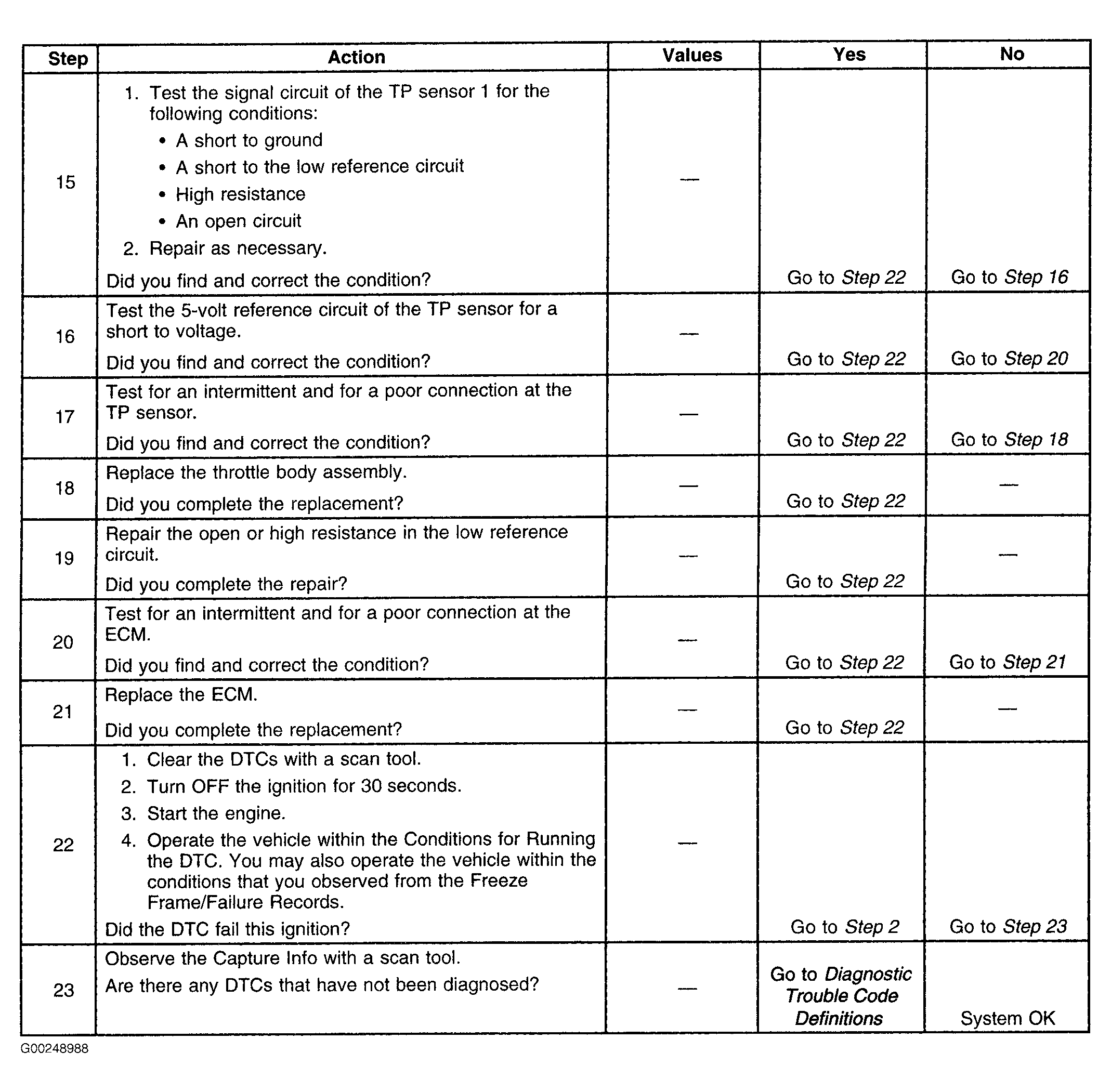

Fig 3: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 15-23)

Courtesy of GENERAL MOTORS CORP.
