Installation Procedure

  1. Install the battery (2) with the positive (+) side up.

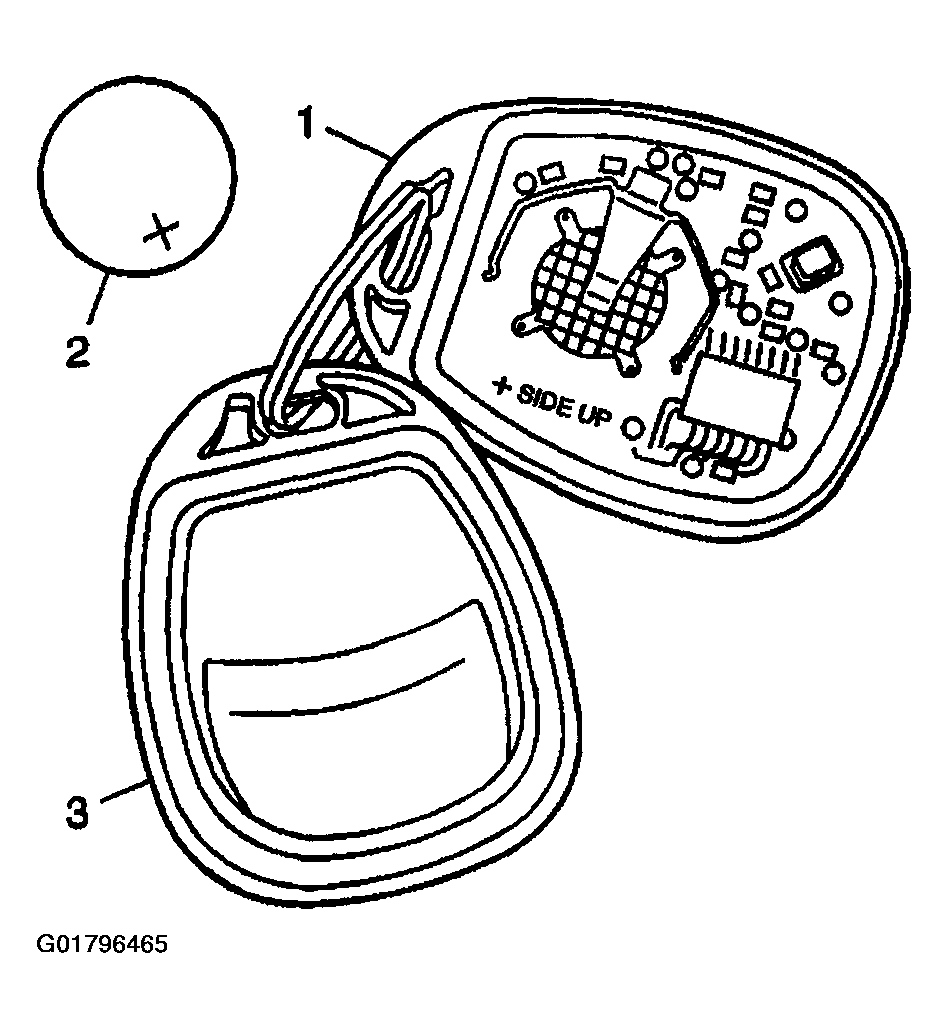

    Fig 1: Identifying Battery
    G01796465Courtesy of GENERAL MOTORS CORP.
  2. Align both halves (1, 3) of the transmitter.
  3. Ensure that the seal is positioned correctly.
  4. Close the transmitter case.
  5. Synchronize the transmitter. Refer to Transmitter Programming .

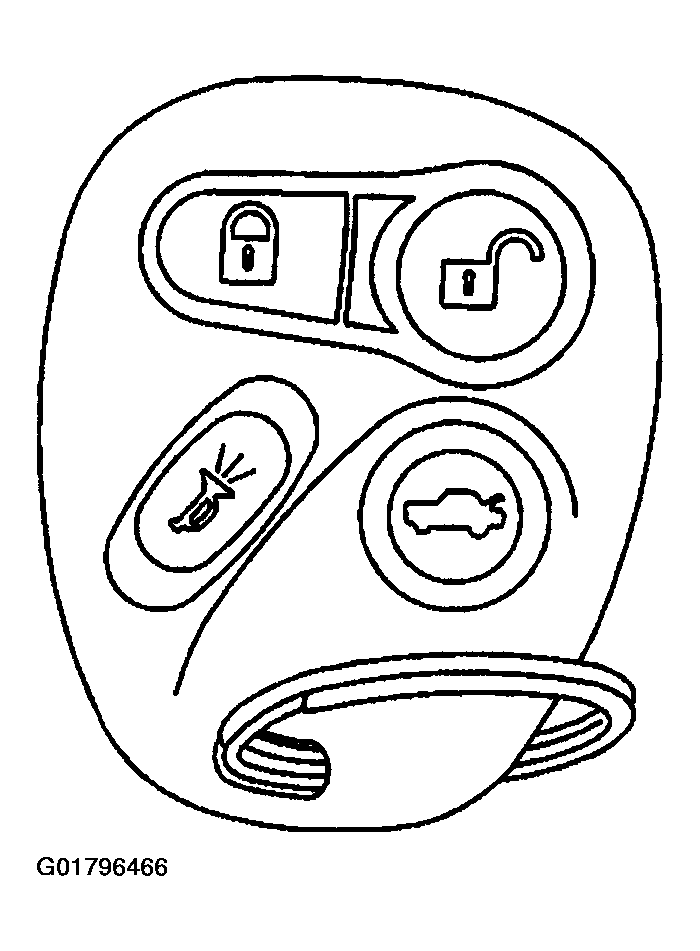

    Fig 2: View Of Transmitter
    G01796466Courtesy of GENERAL MOTORS CORP.
