Electronic Suspension Control (ESC) Module C2 (W/F55)

Electronic Suspension Control (ESC) Module C2 (w/F55)

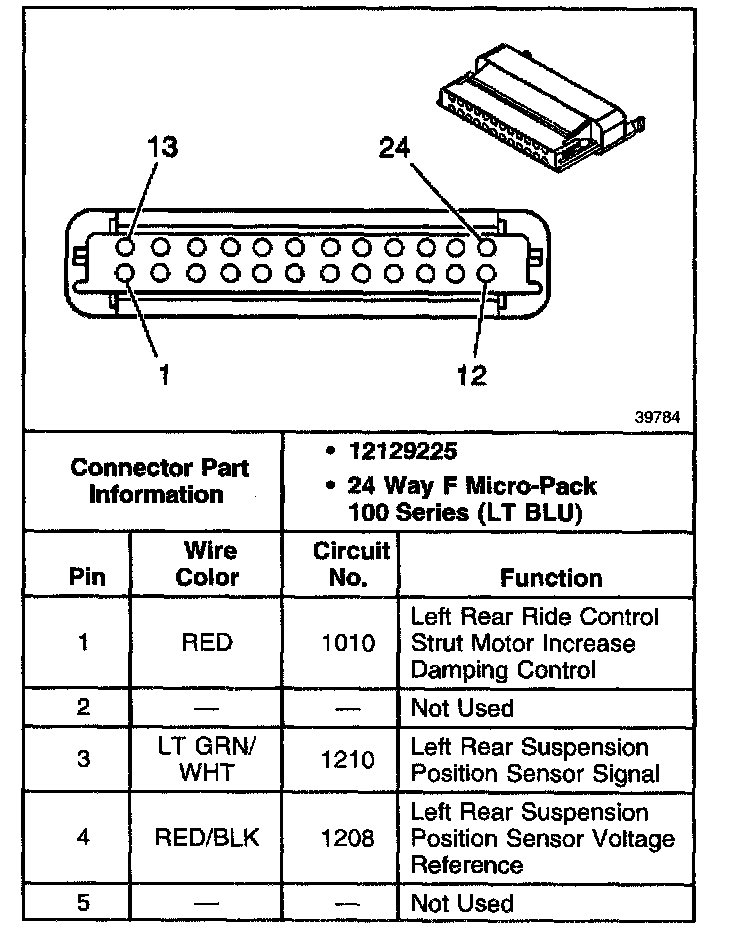

Part 1 of 2

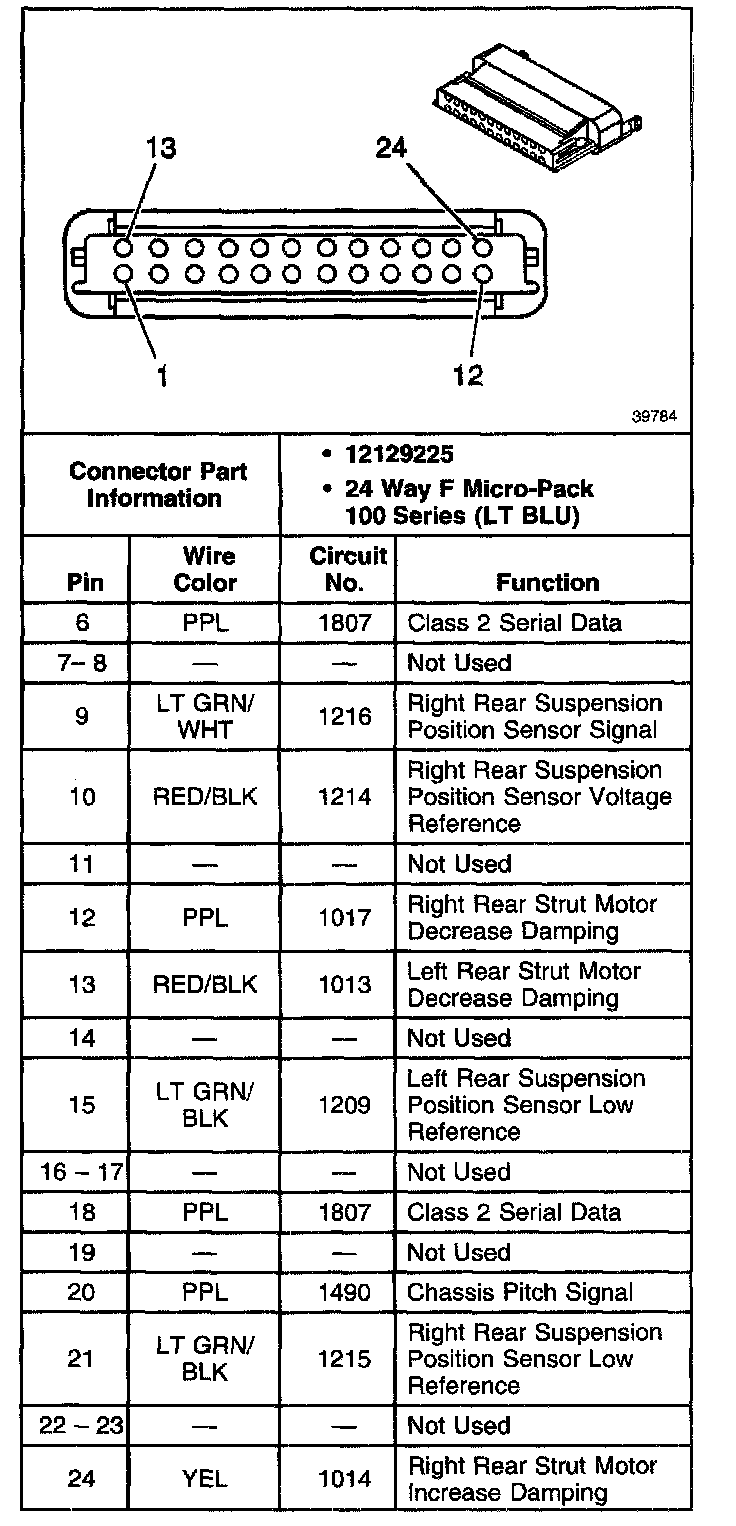

Part 2 of 2
