Electronic Suspension Control (ESC) Module C2 (W/F45)
Electronic Suspension Control (ESC) Module C2 (w/F45)

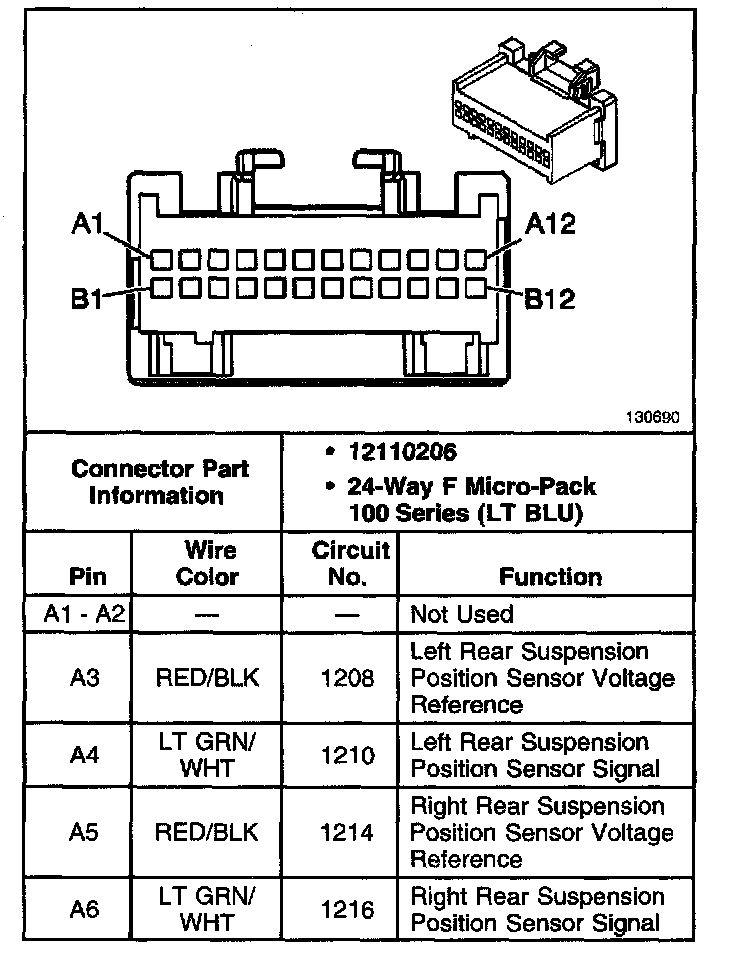

Part 1 of 3

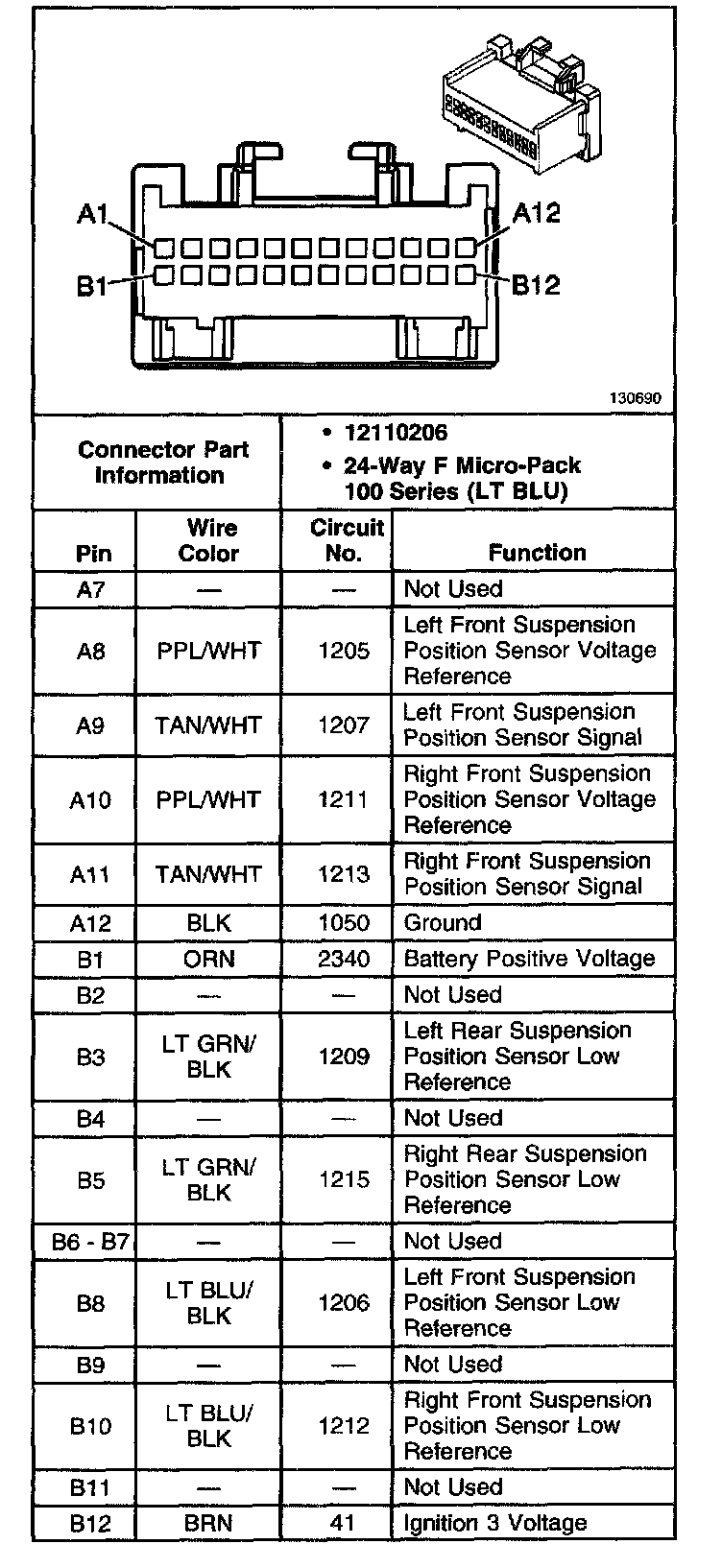

Part 2 of 3
Part 3 of 3
