Driver

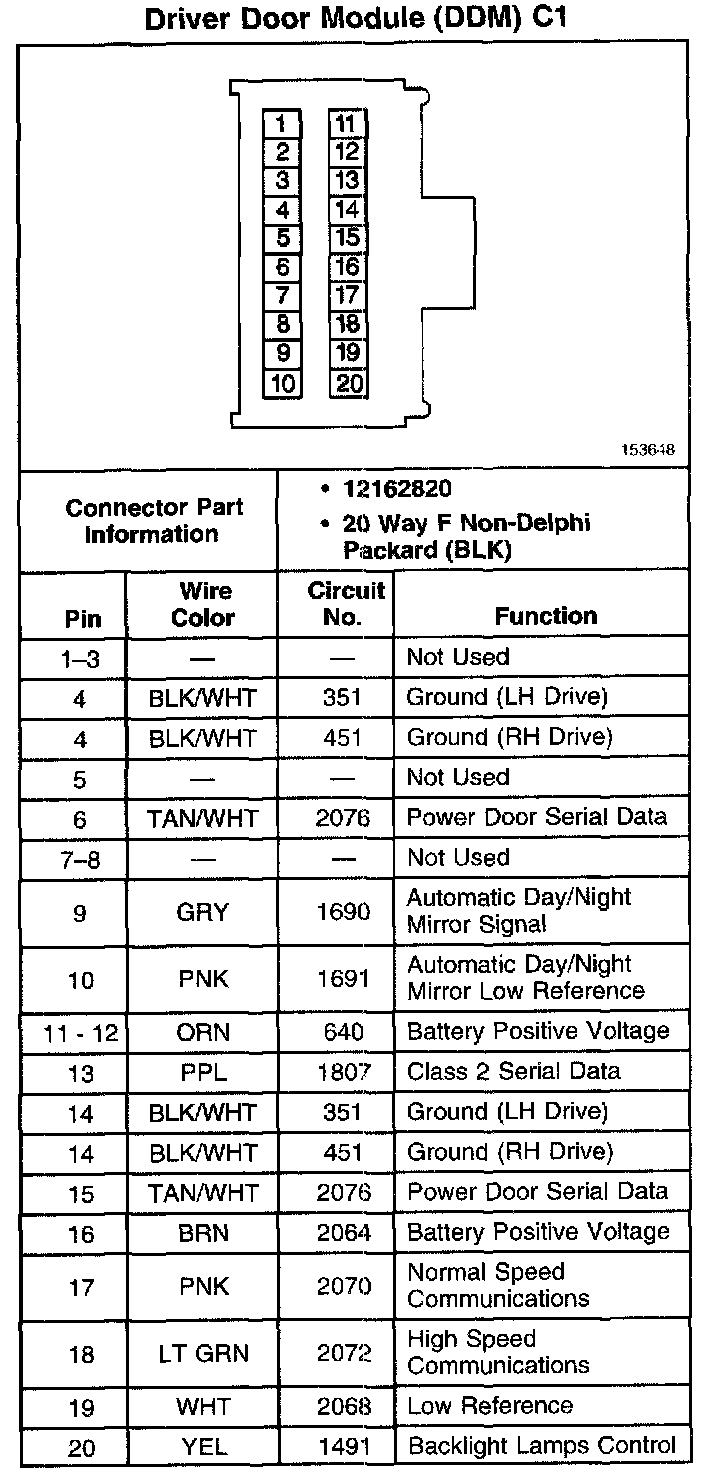

Driver Door Module (DDM) C1:

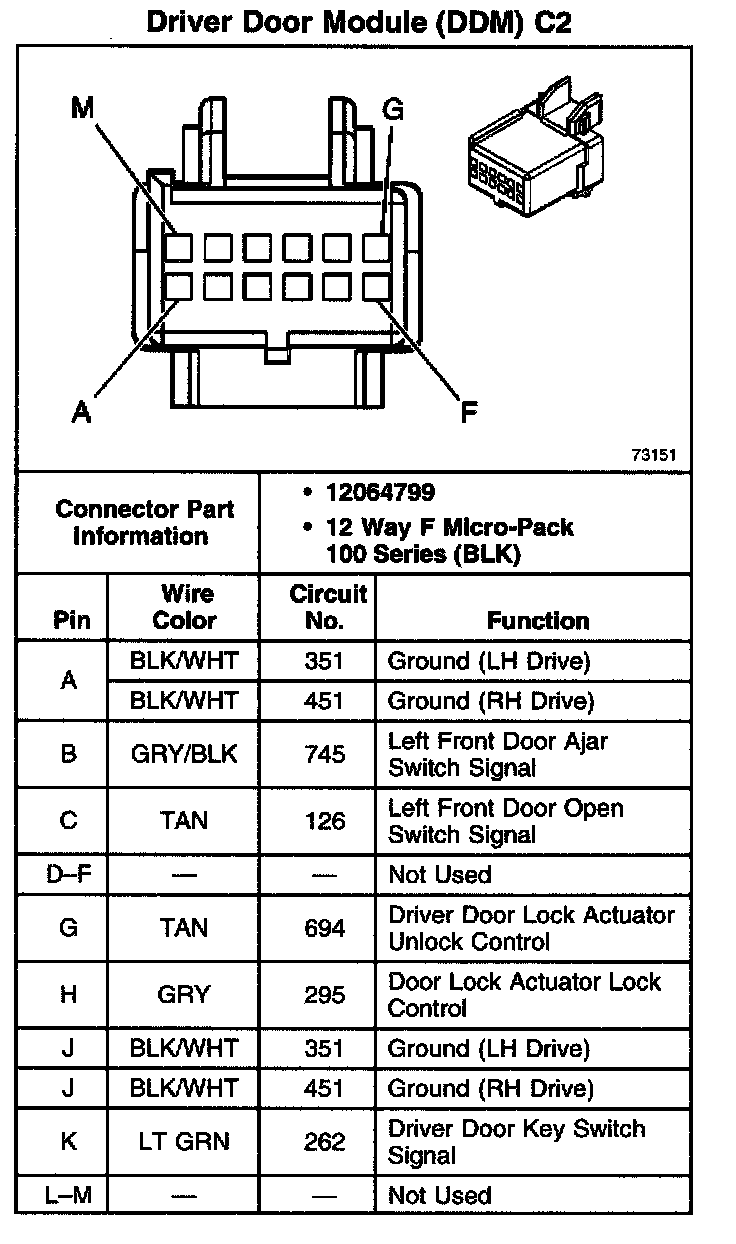

Driver Door Module (DDM) C2:




Driver Door Module (DDM) C3:




Driver Door Module (DDM) C4:




Driver Door Module (DDM) C5:
