Special Tools and Equipment

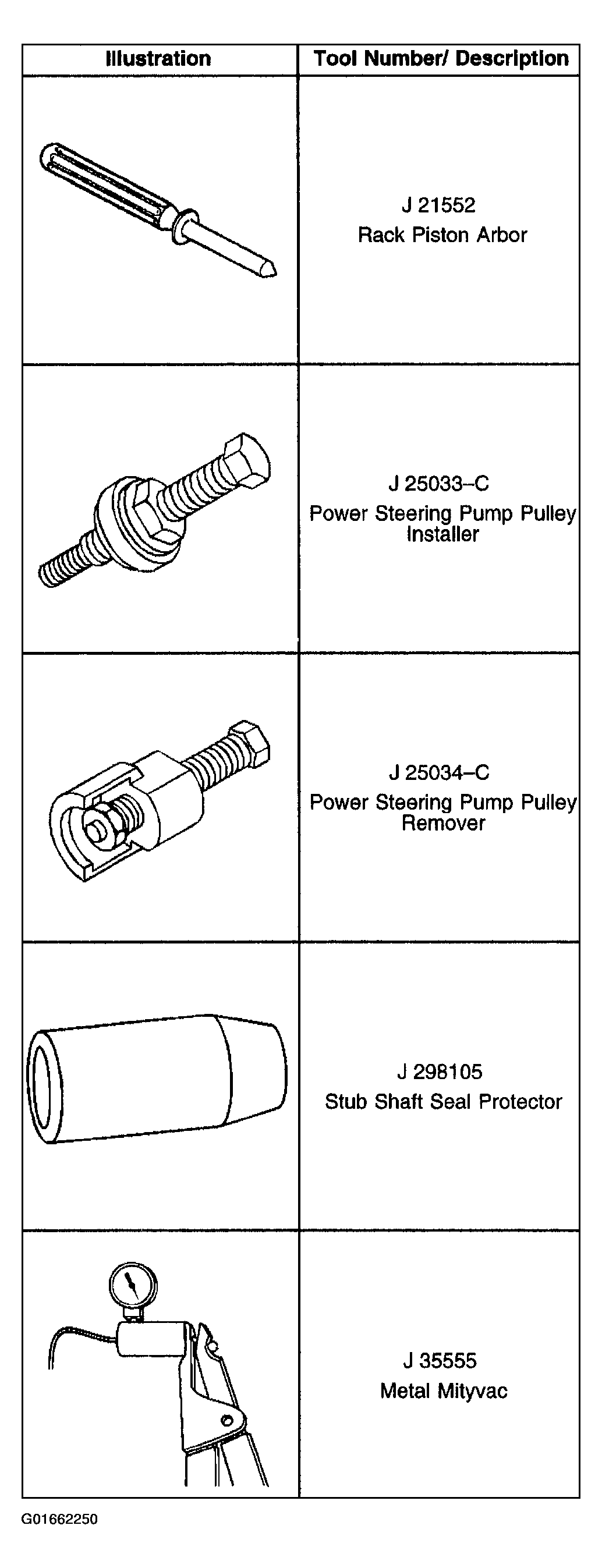

Fig 1: Identifying Special Tools & Equipment (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

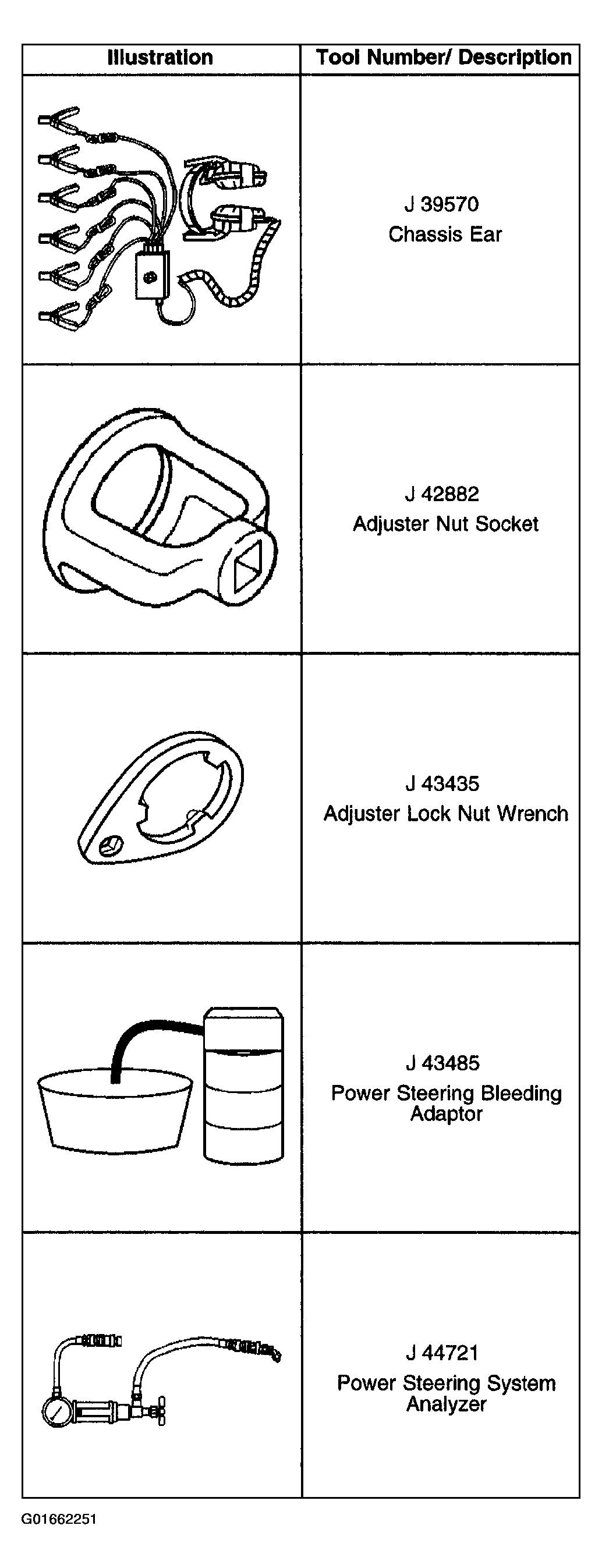

Fig 2: Identifying Special Tools & Equipment (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Special Tools & Equipment (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
