Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the speaker into the opening in the door trim panel (1).
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fasteners (2).

    Tighten

    Tighten to 1.6 N.m (14 lb in).

  3. Install the speaker grill. Refer to Speaker Grille Replacement-Front Door   .
  4. Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .

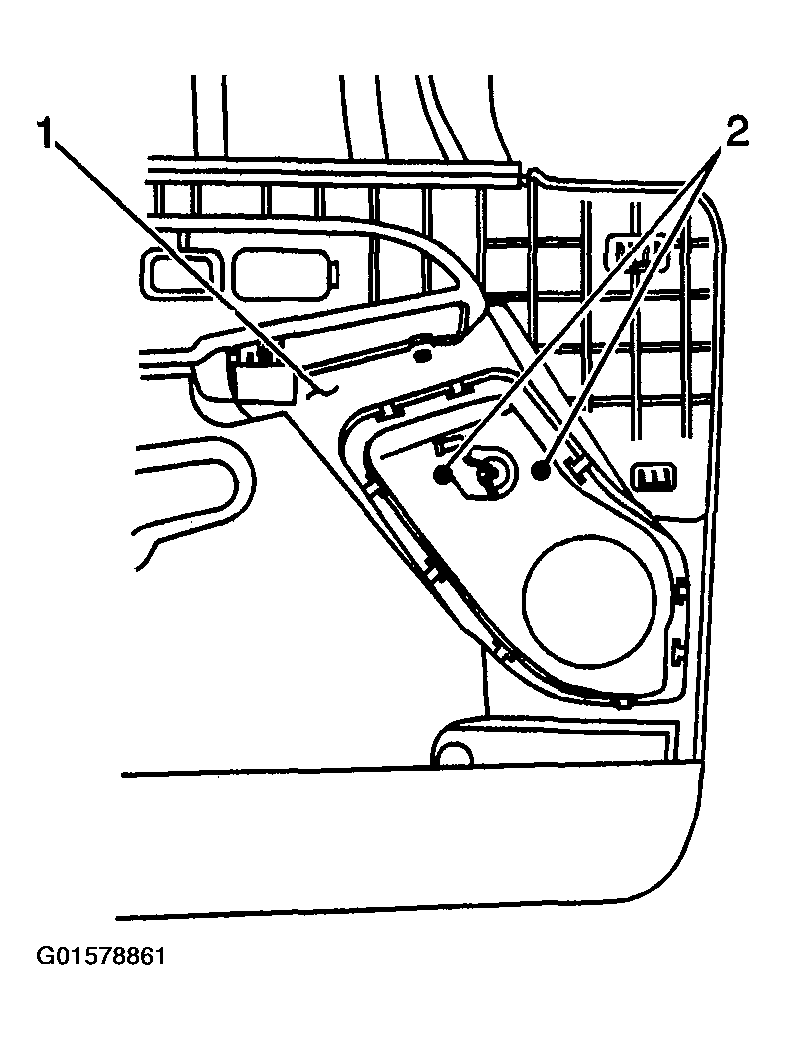

    Fig 1: Front Side Door Upper Speaker
    G01578861Courtesy of GENERAL MOTORS CORP.
