Fuel Pump/Sender Connector End View - Primary

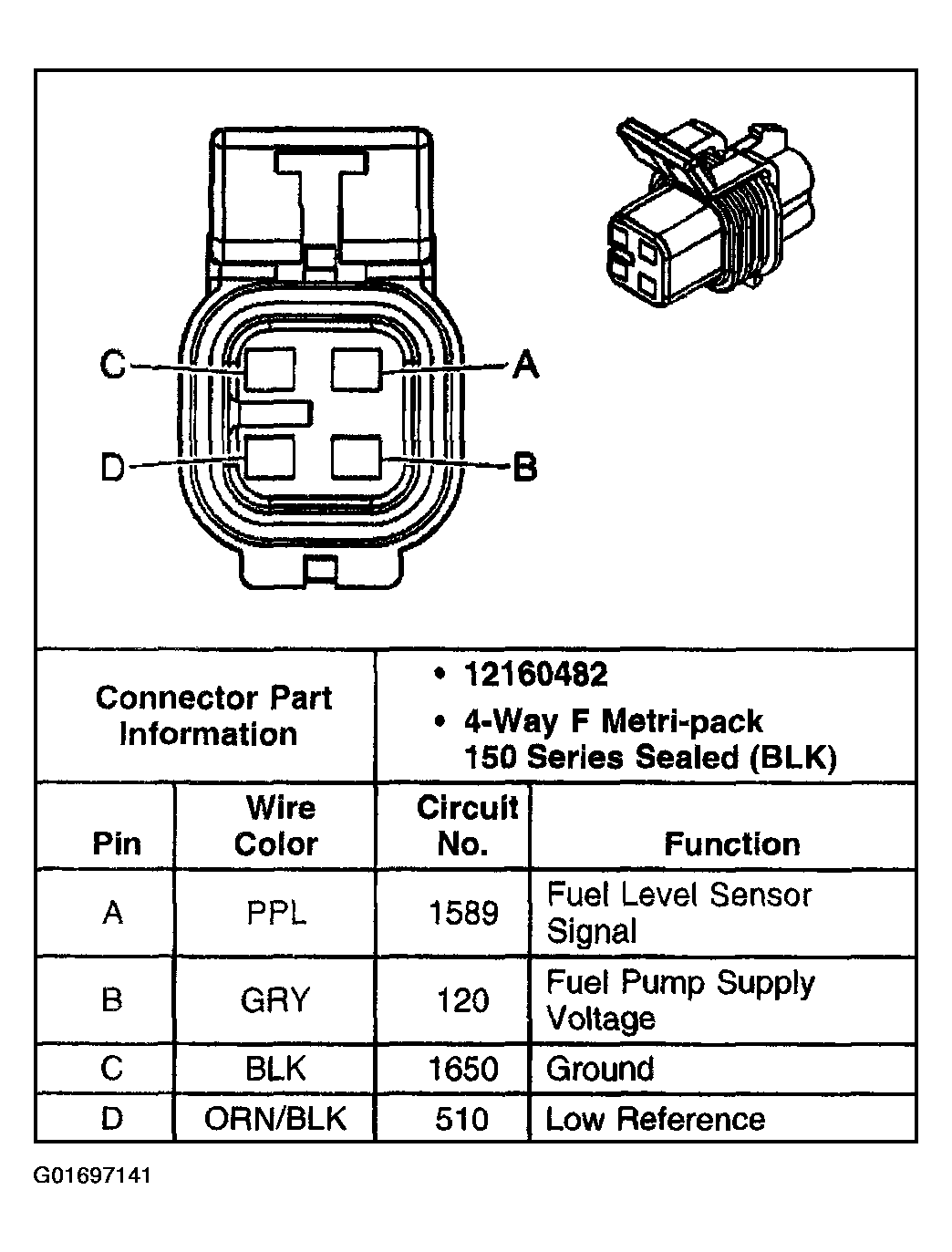

Fig 1: Fuel Pump/Sender Connector End View - Primary
G01697141Courtesy of GENERAL MOTORS CORP.
