Power Window Schematics

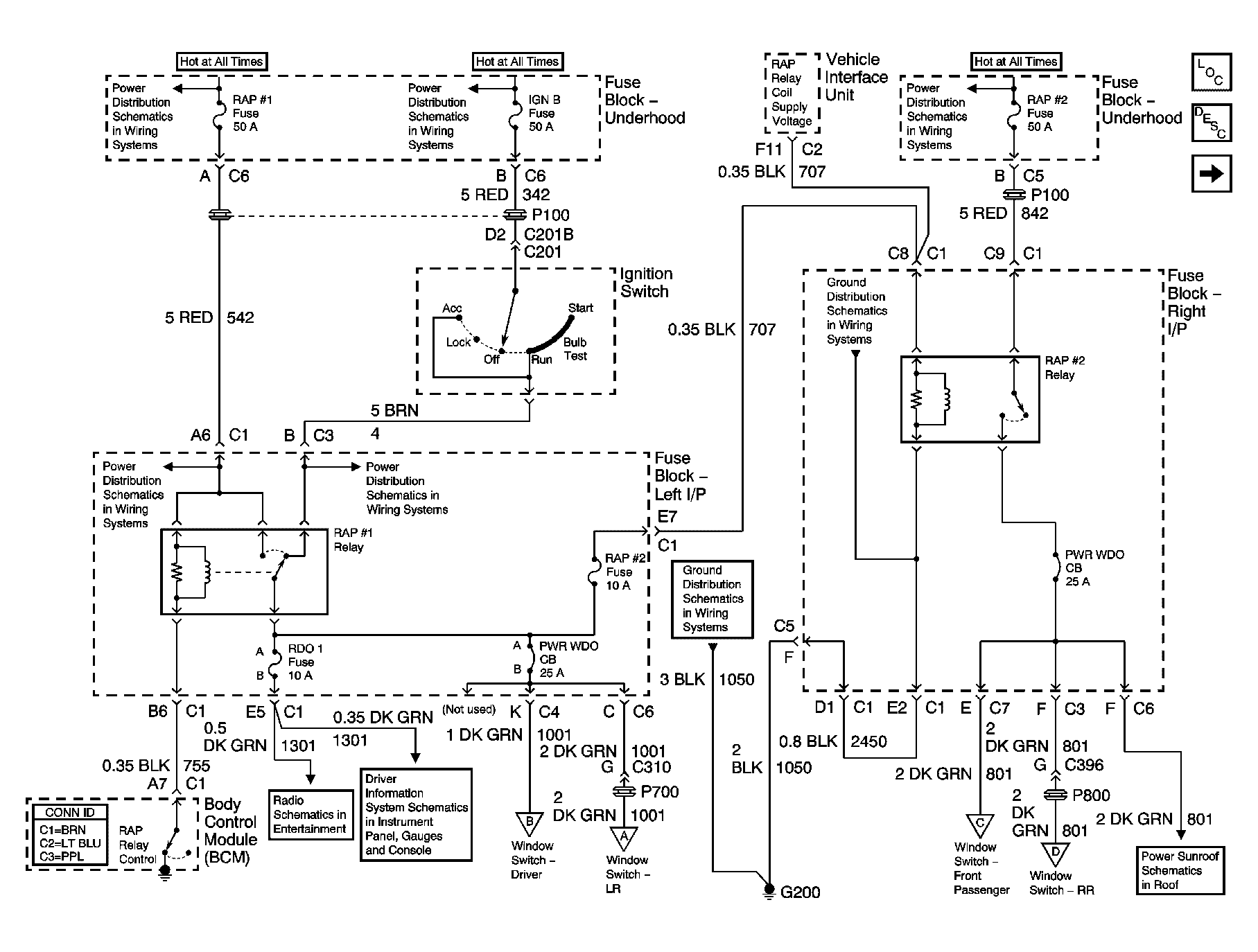

Fig 1: RAP Relay Controls Schematic

Courtesy of GENERAL MOTORS CORP.

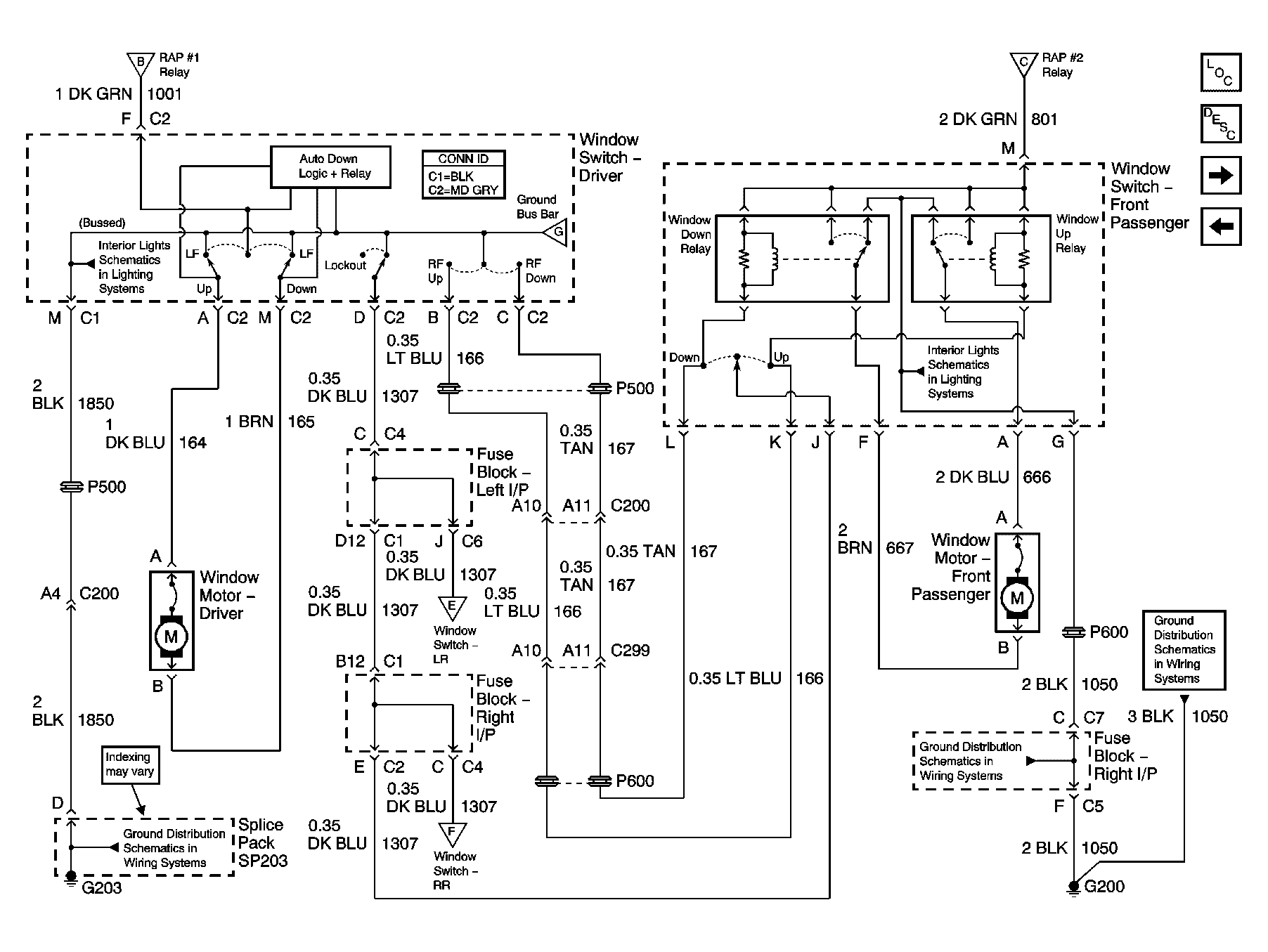

Fig 2: Window Switches and Motors-Front Doors Schematic

Courtesy of GENERAL MOTORS CORP.

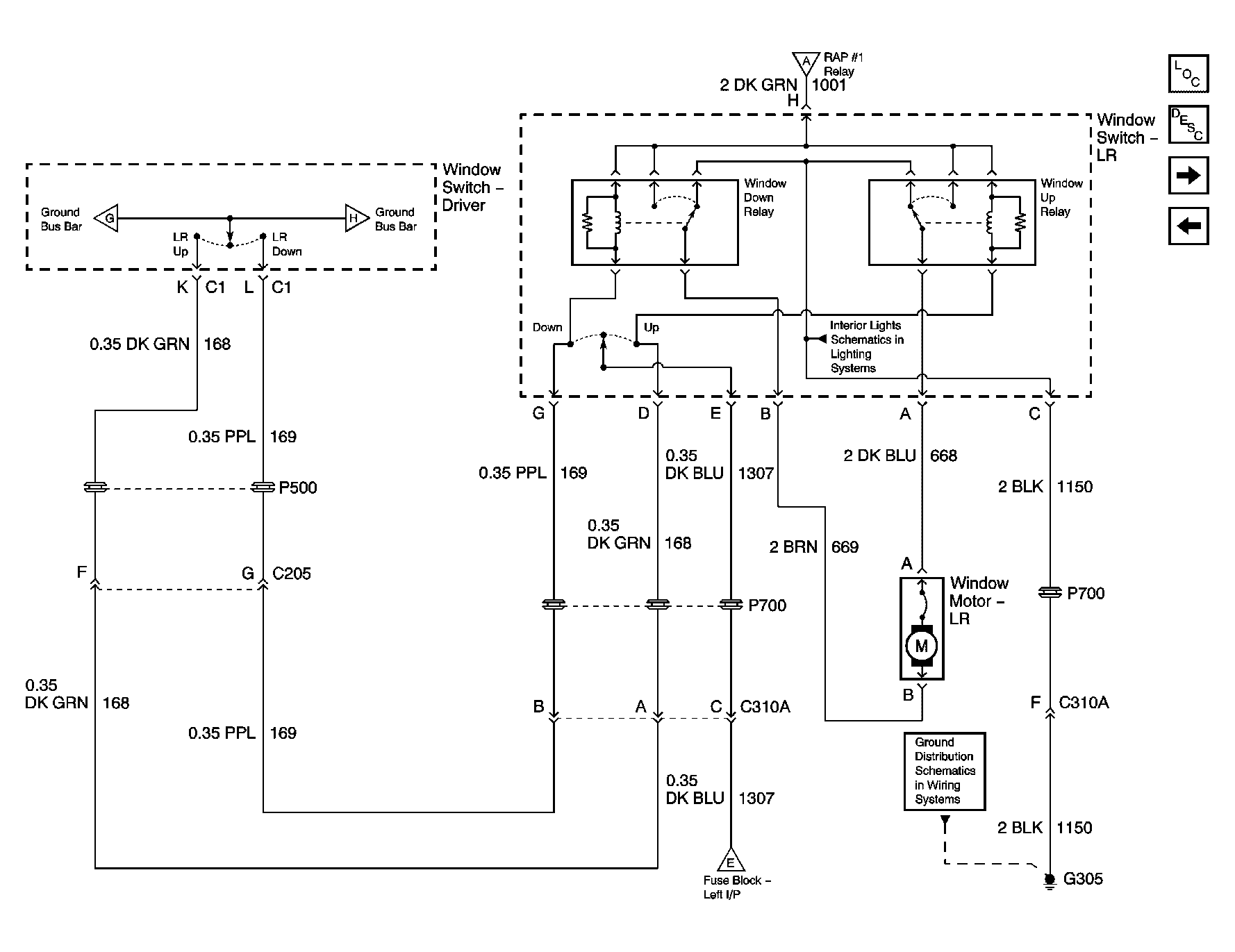

Fig 3: Window Switches and Motor-LR Schematic

Courtesy of GENERAL MOTORS CORP.

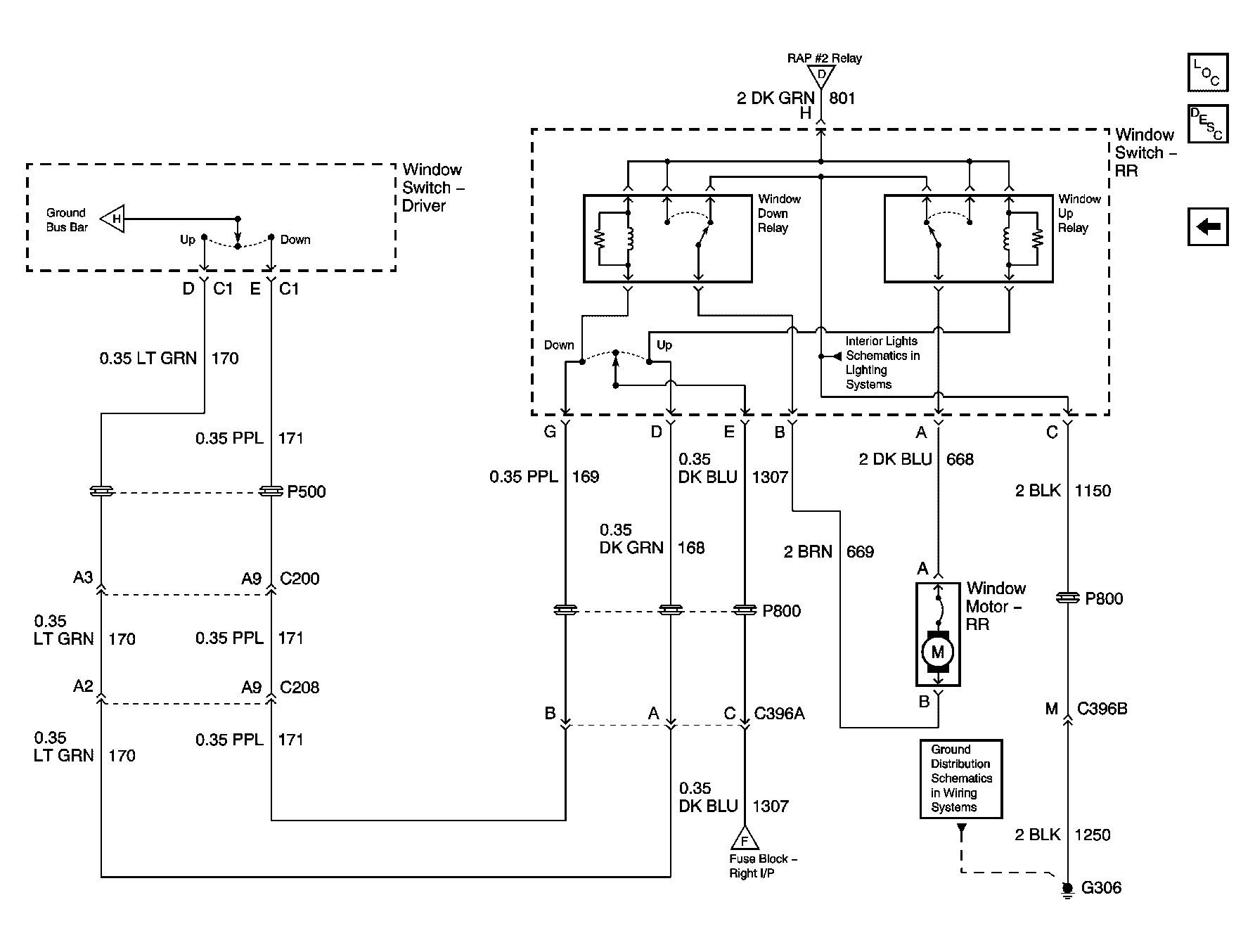

Fig 4: Window Switches and Motor-RR Schematic

Courtesy of GENERAL MOTORS CORP.
