Rear Integration Module (RIM) C2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

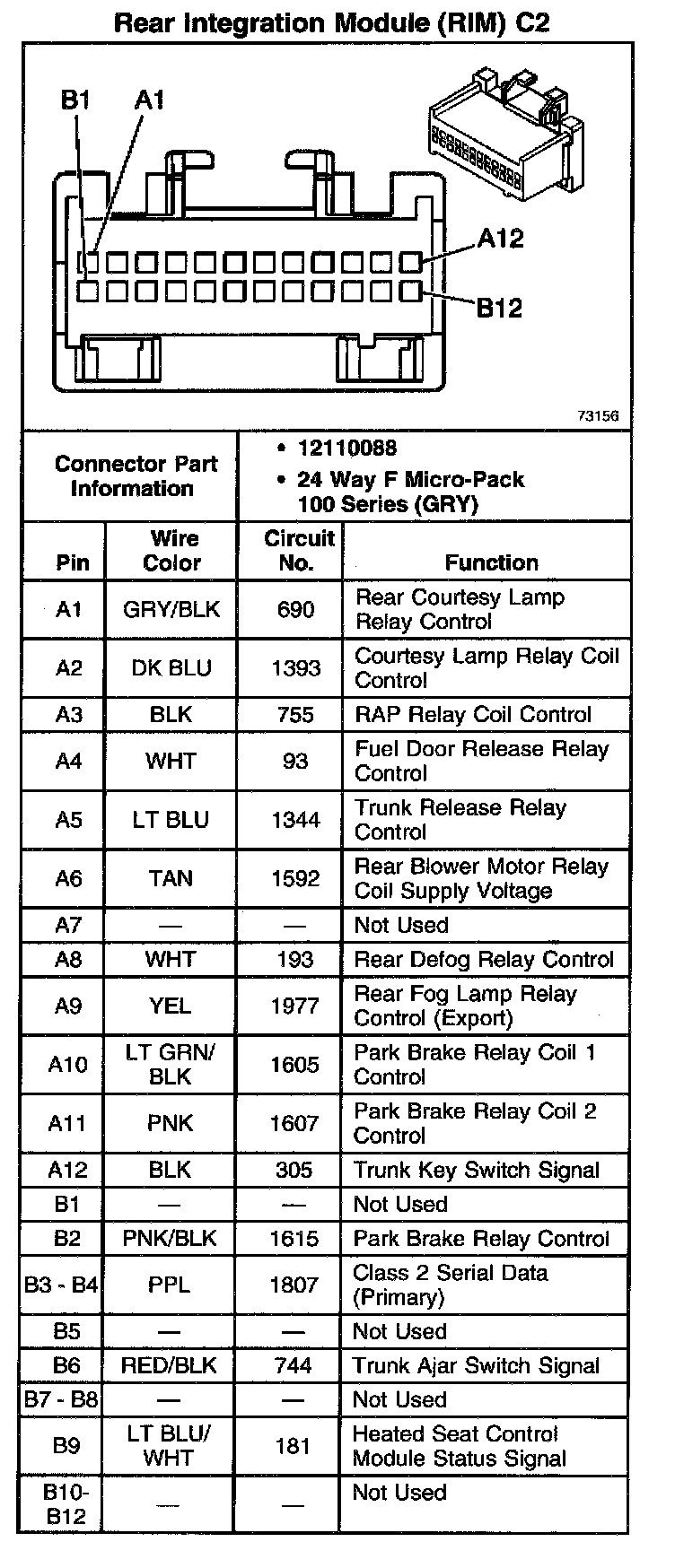

Rear Integration Module (RIM) C2
Rear Integration Module (RIM) C2:
