Window Motor Regulator: Removal

Remove door trim panel. See DOOR TRIM PANEL . Remove door control module. See DOOR MODULE . Remove retainers and remove water shield. See Fig 1 . Connect window switch and door module. Using window switch, raise window to up position. Secure in place with tape.
Loosen window clamp fasteners. Lower regulator clamps to full down position. Remove retainer bolts from window. See Fig 2 . Disconnect window motor harness connector. Remove window motor regulator.

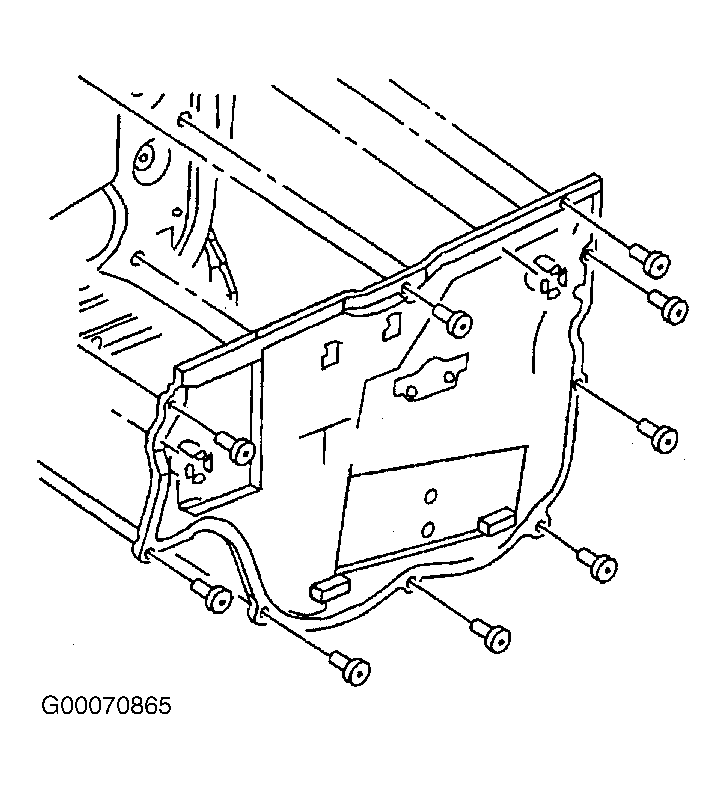

Fig 1: Identifying Front Door Water Shield & Retainers (Other Front Door Similar)

Courtesy of GENERAL MOTORS CORP.

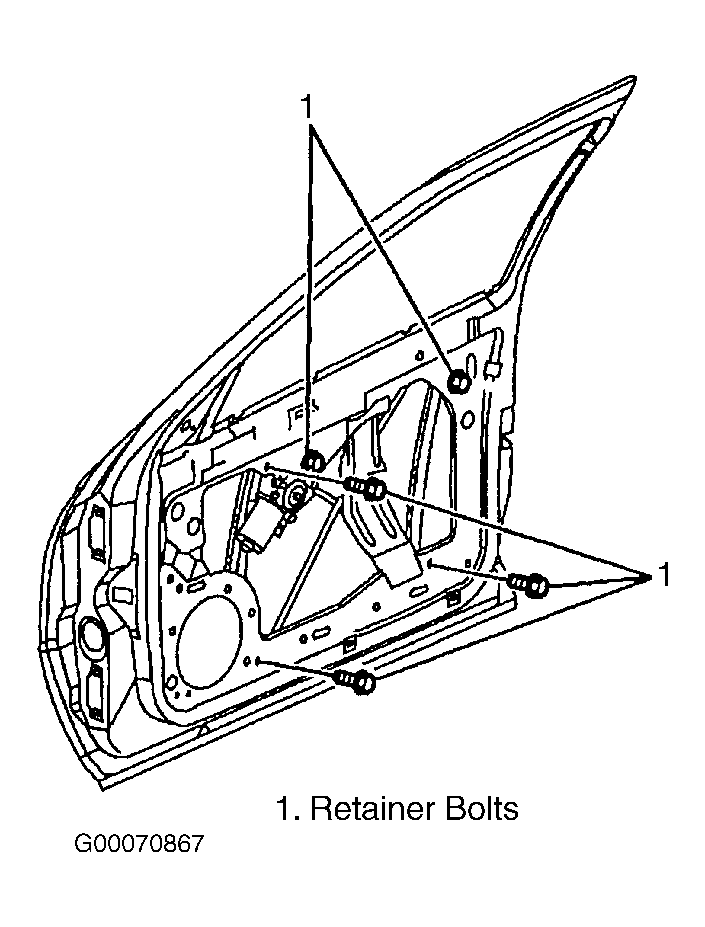

Fig 2: Identifying Window Regulator Retainer Bolts (Other Front Door Similar)

Courtesy of GENERAL MOTORS CORP.

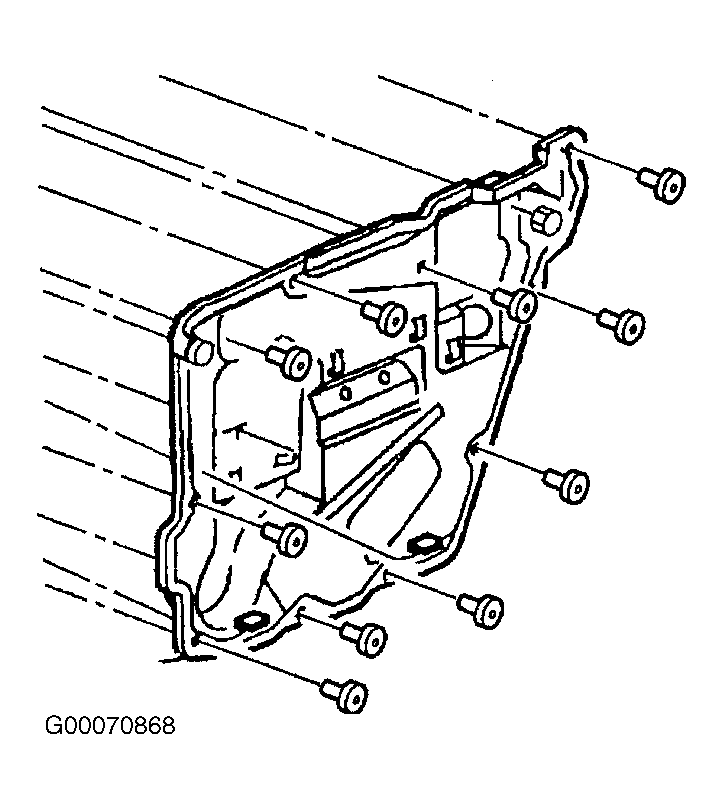

Fig 3: Identifying Rear Door Water Shield & Retainers (Other Rear Door Similar)

Fig 4: Identifying Rear Window Regulator & Retainer Bolts (Other Rear Door Similar)

Courtesy of GENERAL MOTORS CORP.
