Lumbar Massage Module: Installation
- Connect electrical connector to massage module.

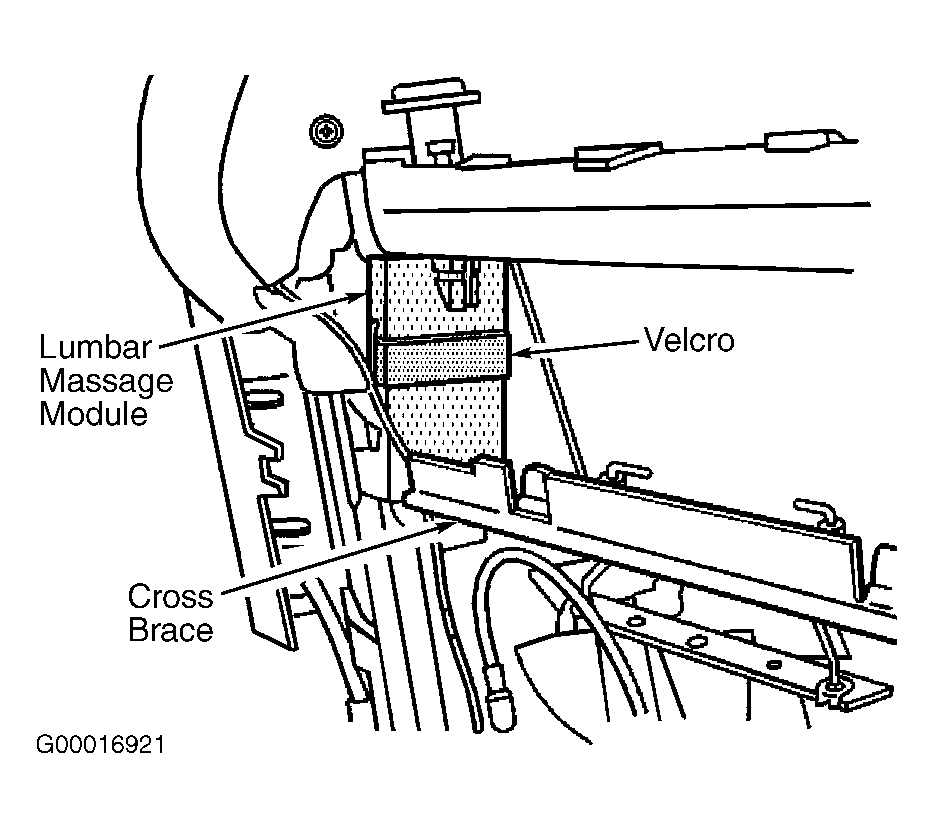

- Install massage module into upper corner of seat back next to shoulder belt adjuster tower.
- Hook tab on massage module to seat back frame cross brace.
- Secure massage module to seat belt shoulder strap adjuster tower and seat back cross brace with hook and loop material.
- Install seat back trim panel.
