Installation Procedure

  1. Connect the electrical connectors.
    CAUTION: Care should be taken not to damage the flat wire harness.
  2. Install the overhead console into the opening in the headliner.
  3. Push in on the overhead console to engage the 4 retainer clips.

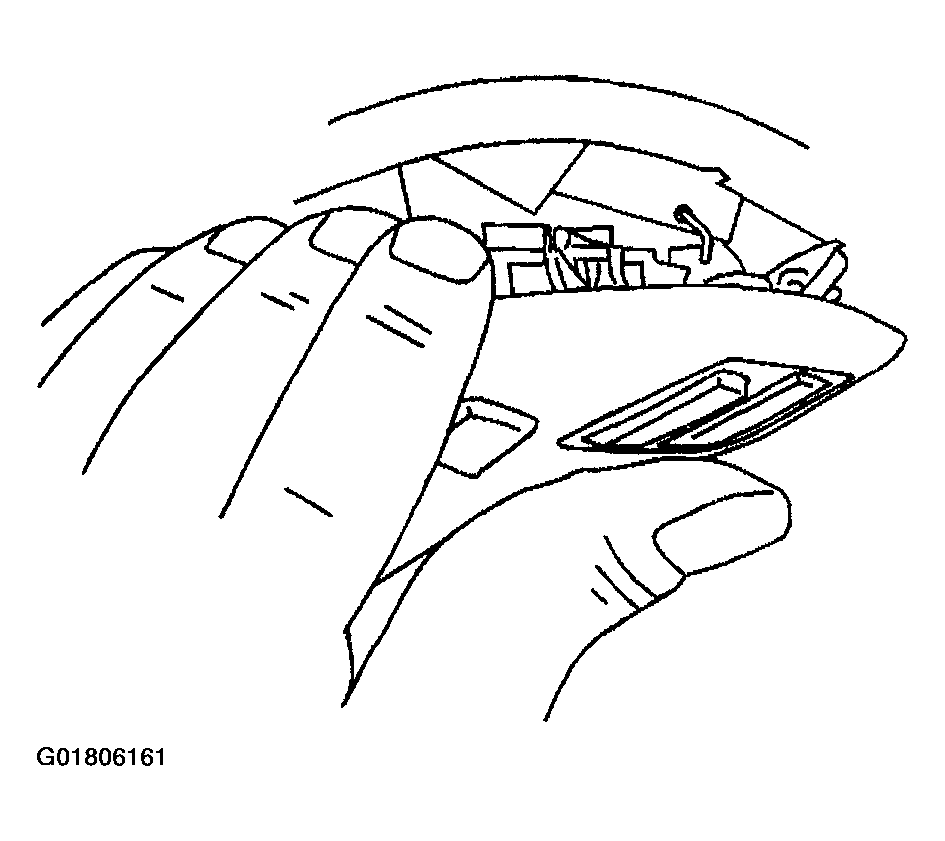

    Fig 1: Installing Overhead Console
    G01806161Courtesy of GENERAL MOTORS CORP.
