Scan Tool Does Not Communicate With Class 2 Device
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Scan Tool Does Not Communicate With Class 2 Device

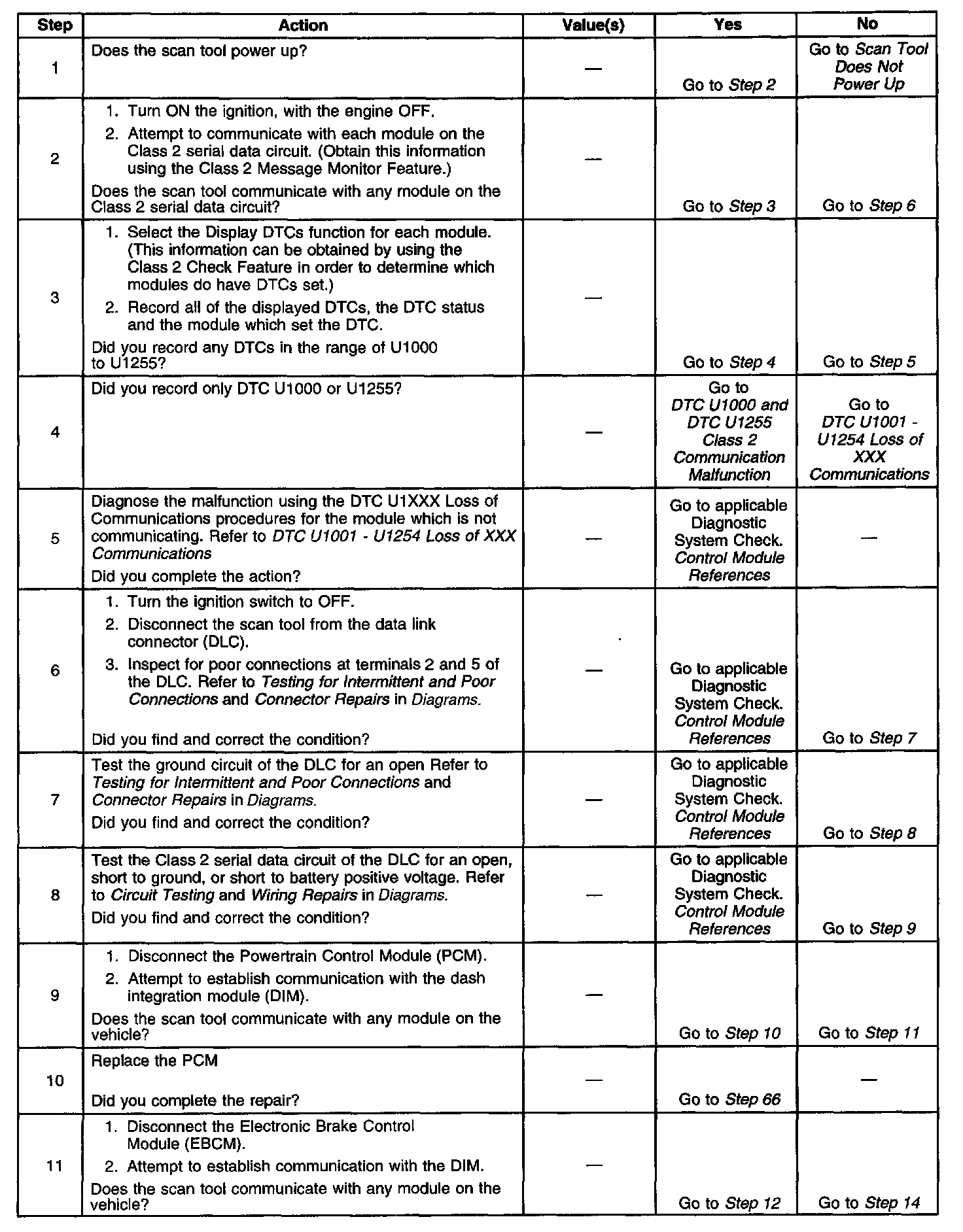

Diagnostic Chart (Part 1 Of 6):

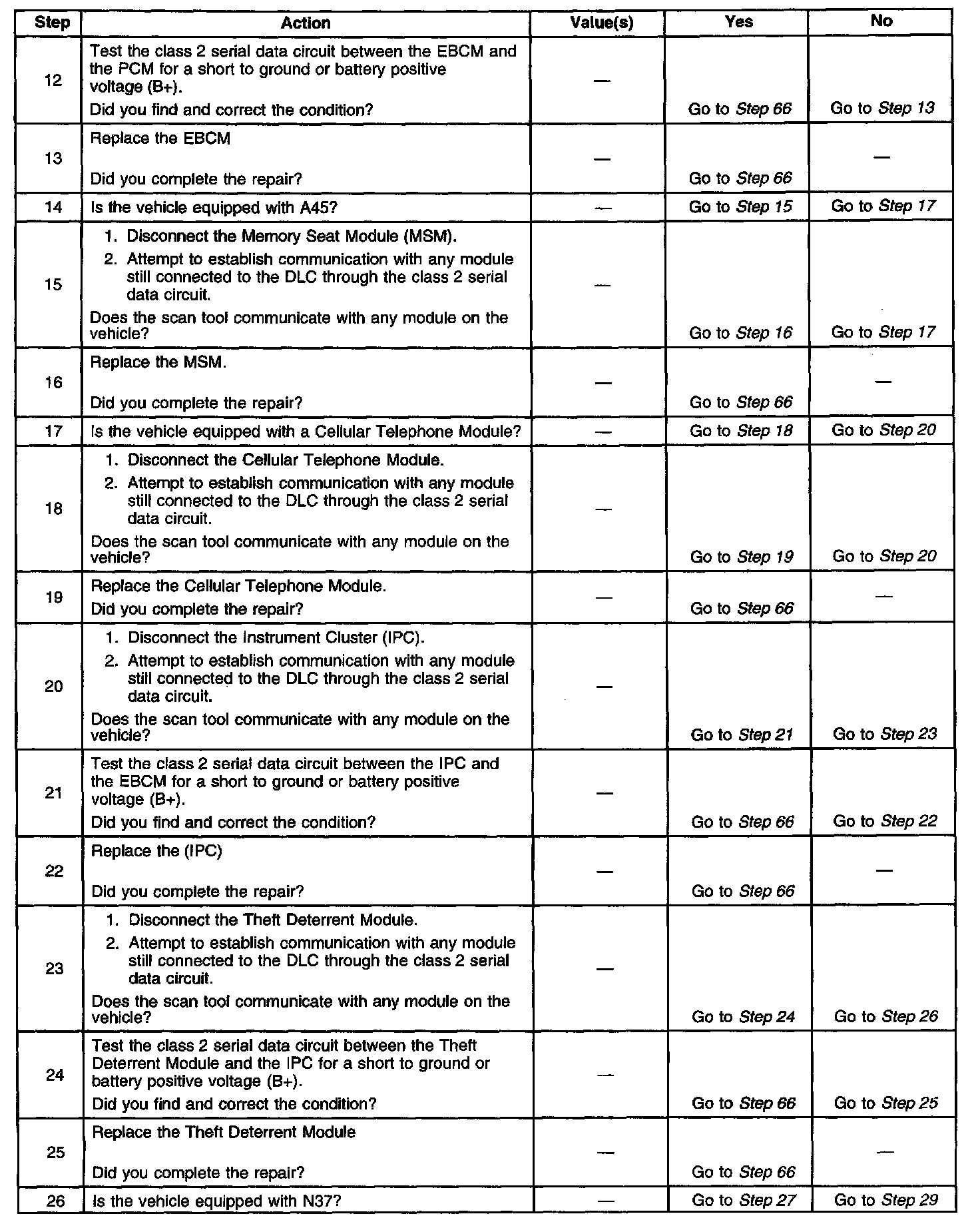

Diagnostic Chart (Part 2 Of 6):

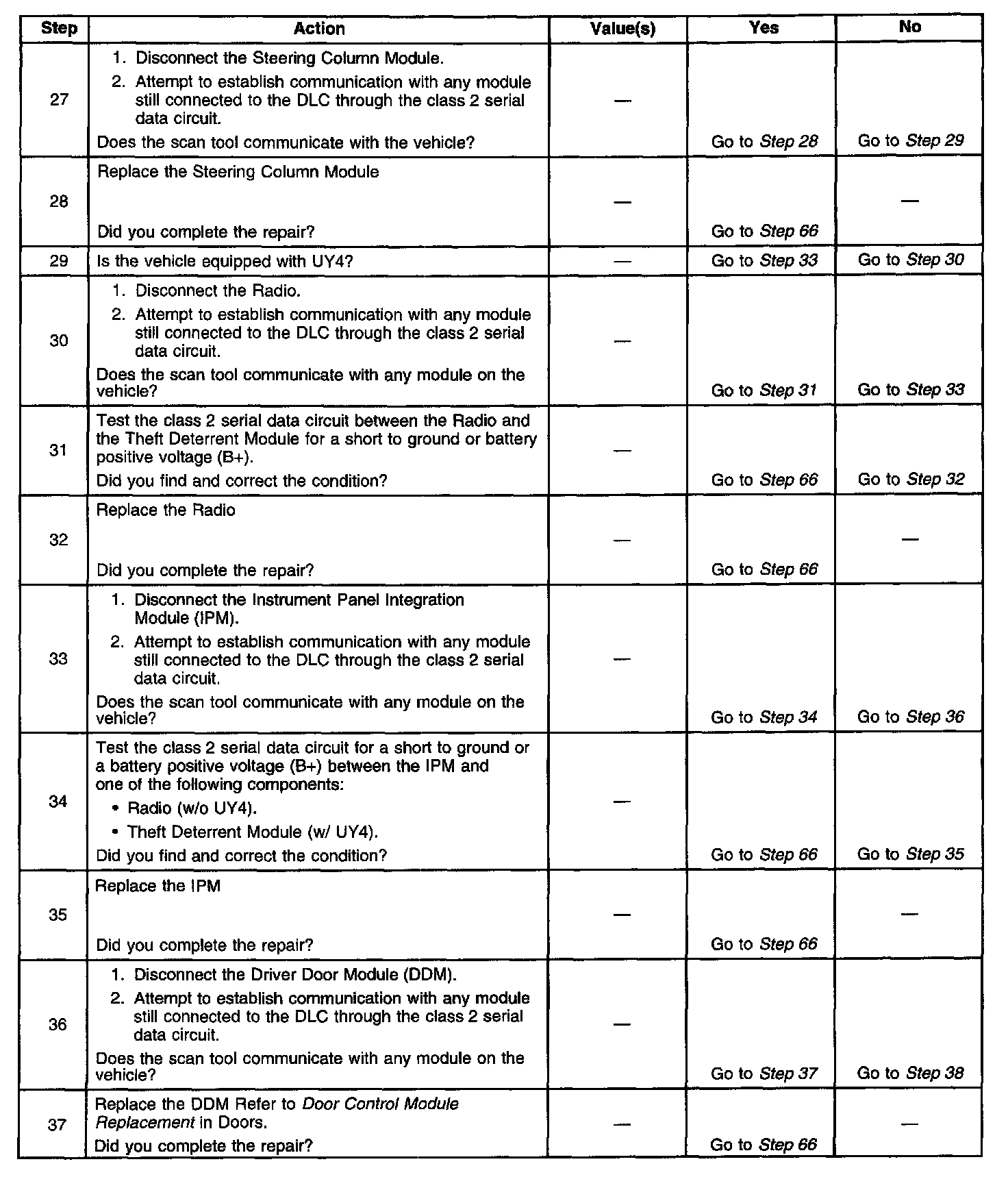

Diagnostic Chart (Part 3 Of 6):

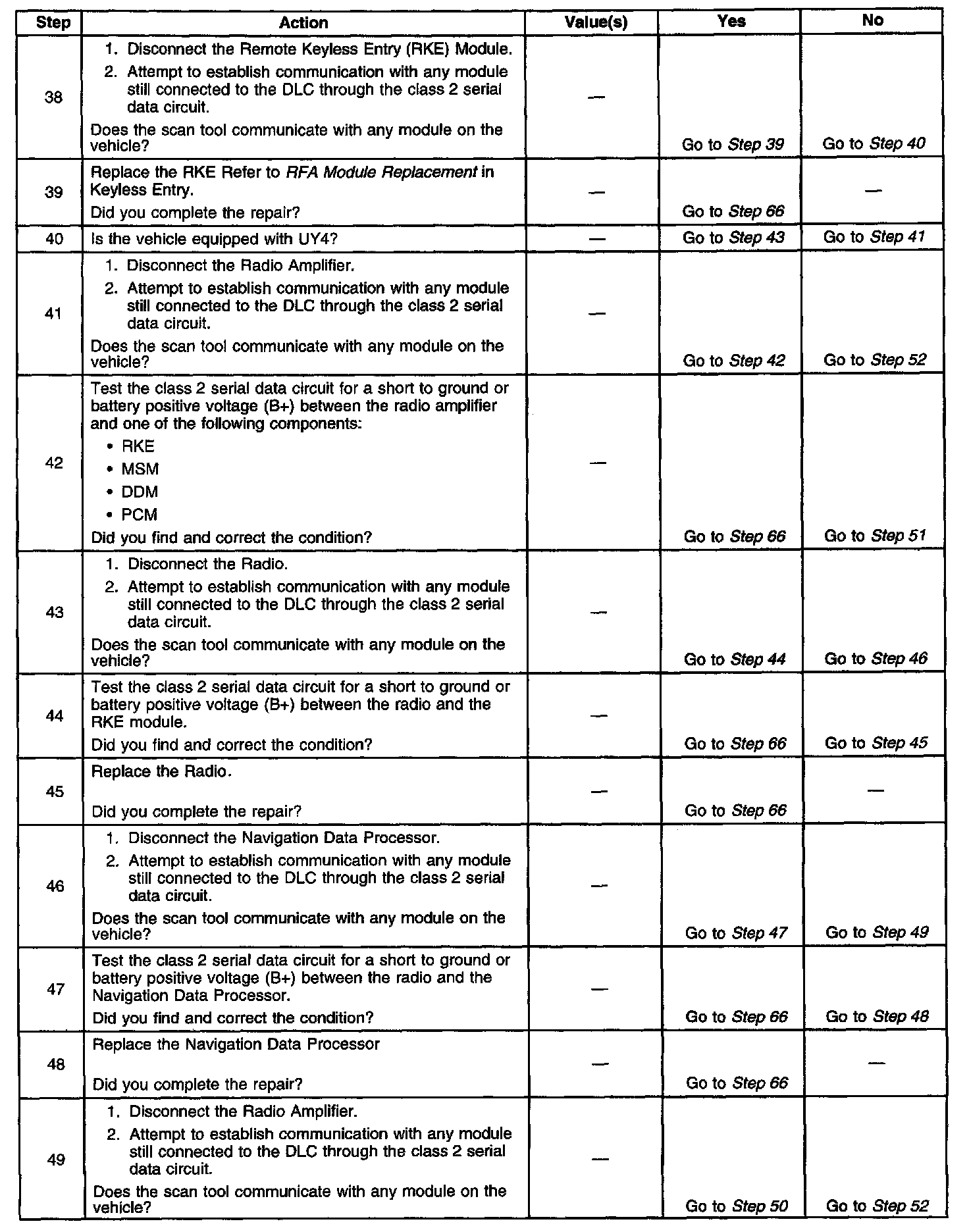

Diagnostic Chart (Part 4 Of 6):

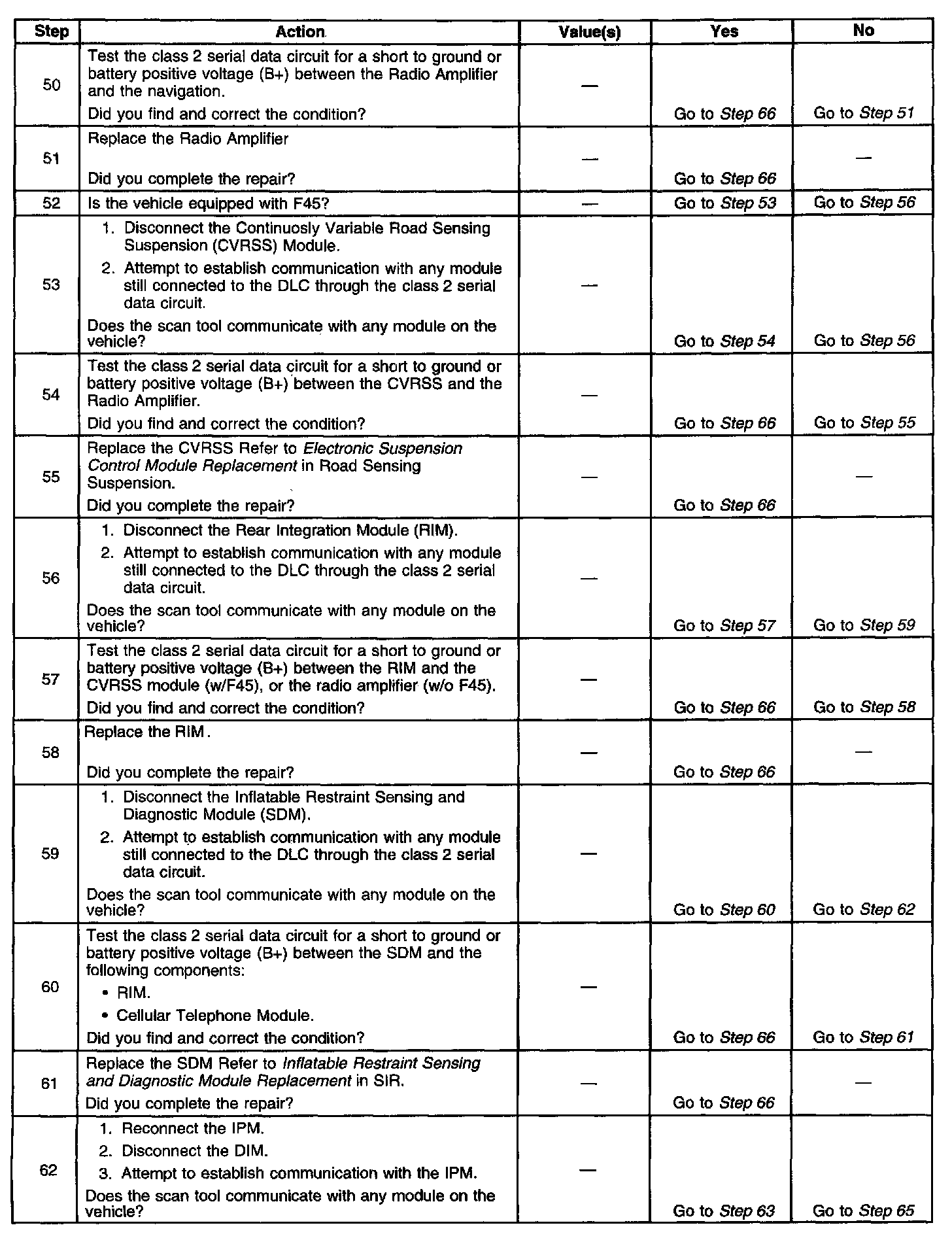

Diagnostic Chart (Part 5 Of 6):

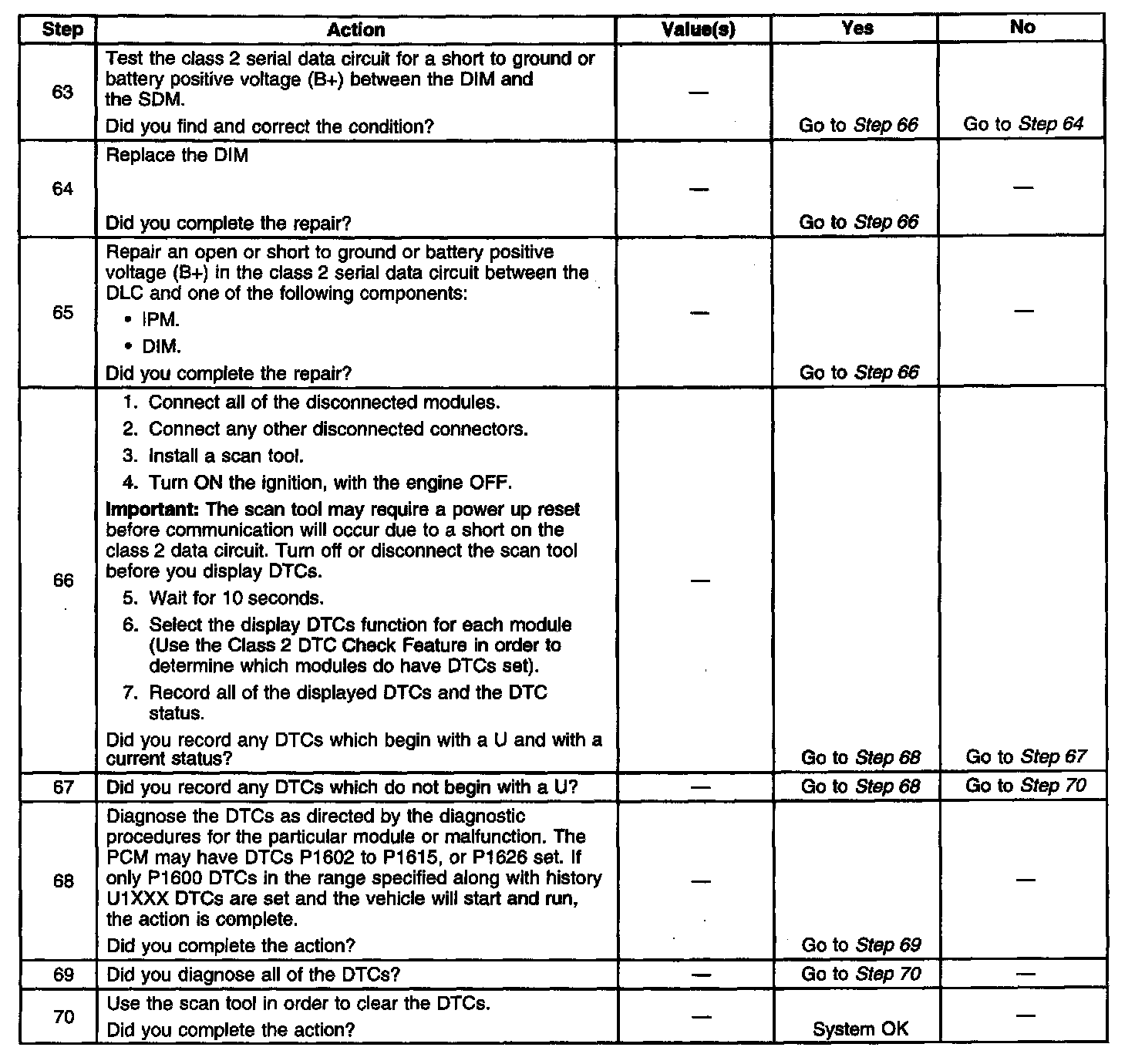

Diagnostic Chart (Part 6 Of 6):
