Charging System Check

WARNING: This page is about a different car, the 1999 GMC Sierra and 1999 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

For test procedures, see Fig 1 .

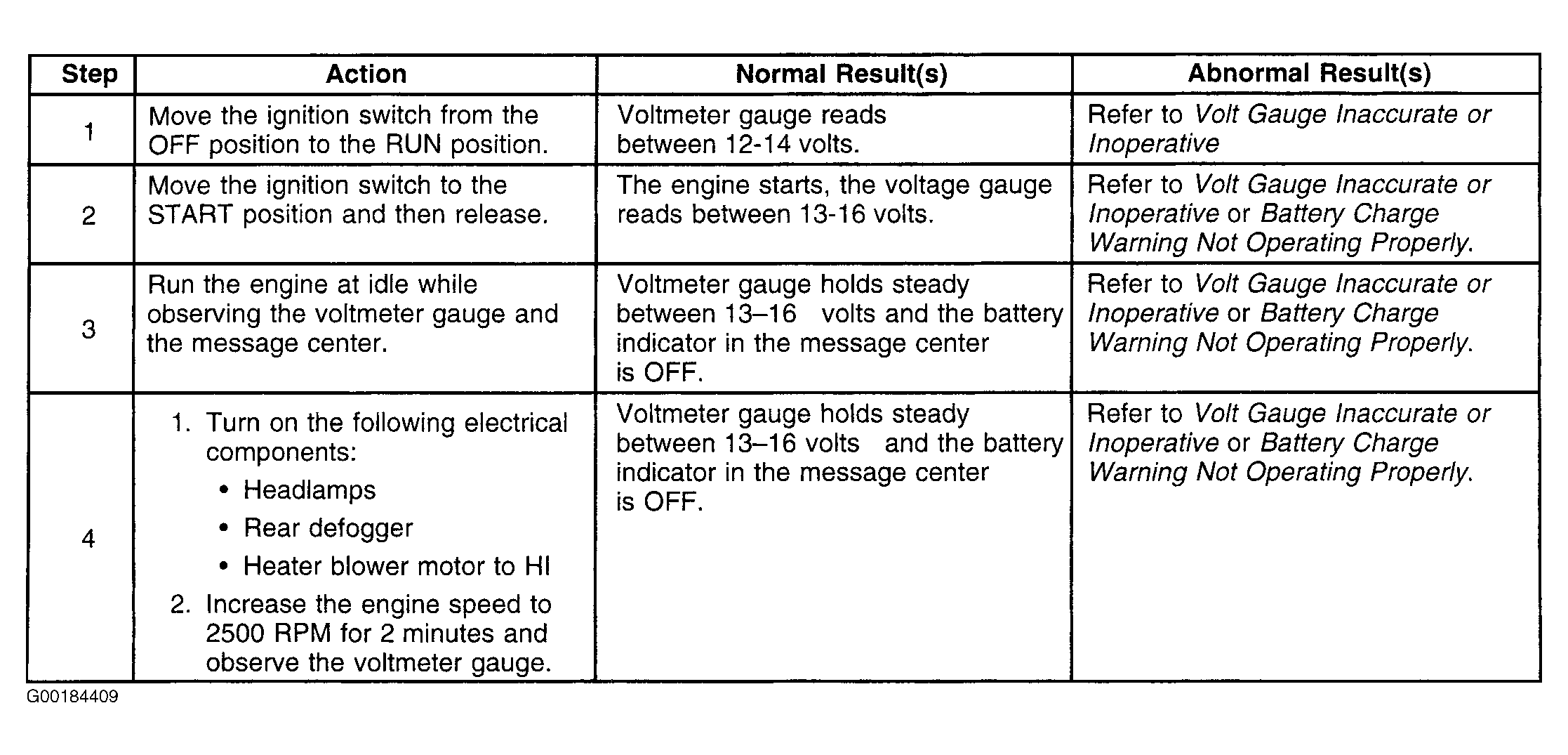

Fig 1: Charging System Check

Courtesy of GENERAL MOTORS CORP.
