Instrument Panel Fuse Block

NOTE: Instrument panel fuse block is located on the lower left side of the instrument panel. See Fig 1.
Fig 1: Locating Instrument Panel Fuse Block
G00100798Courtesy of GENERAL MOTORS CORP.

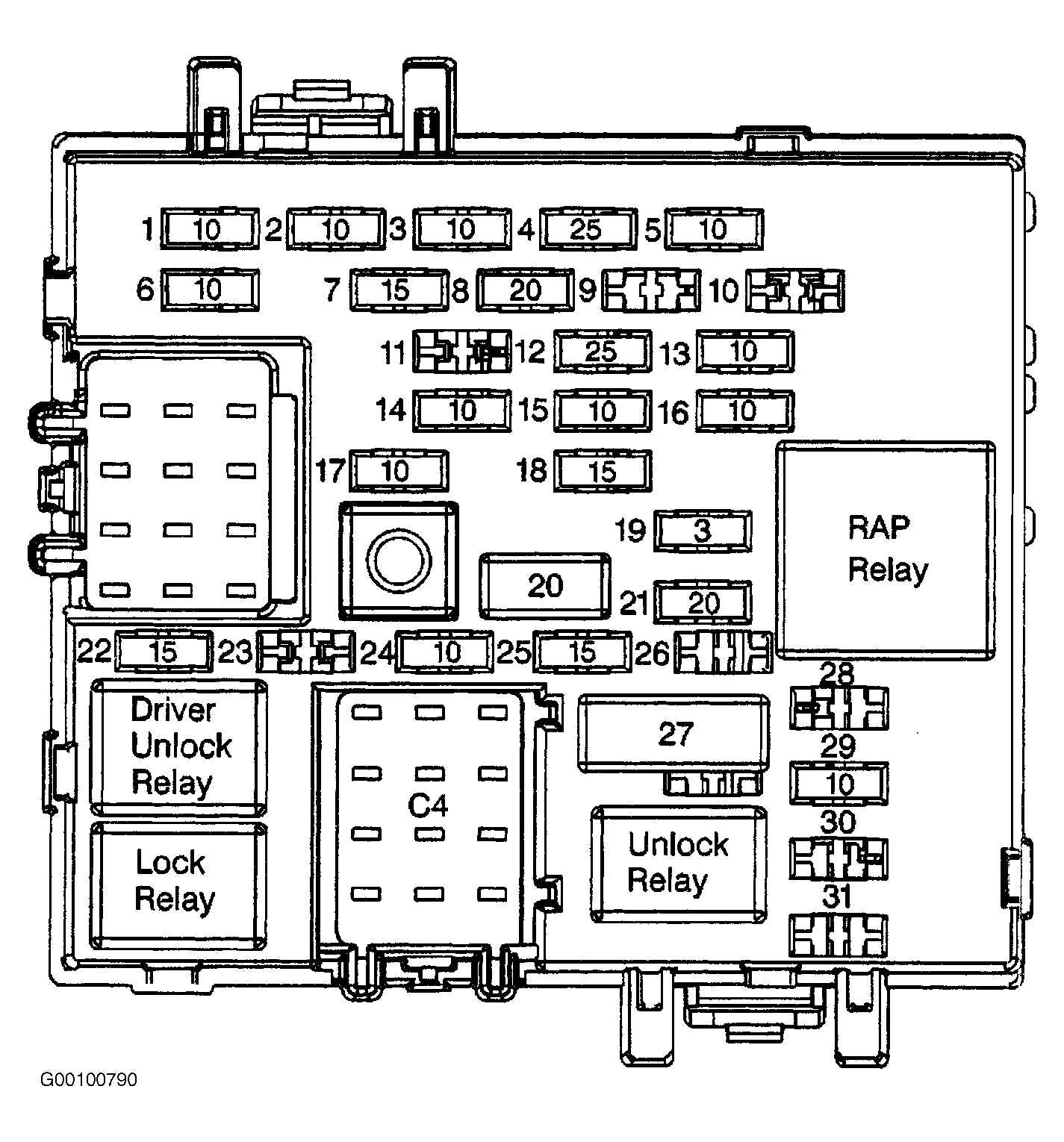

Fig 2: Identifying Instrument Panel Fuse Block Components
G00100790Courtesy of GENERAL MOTORS CORP.

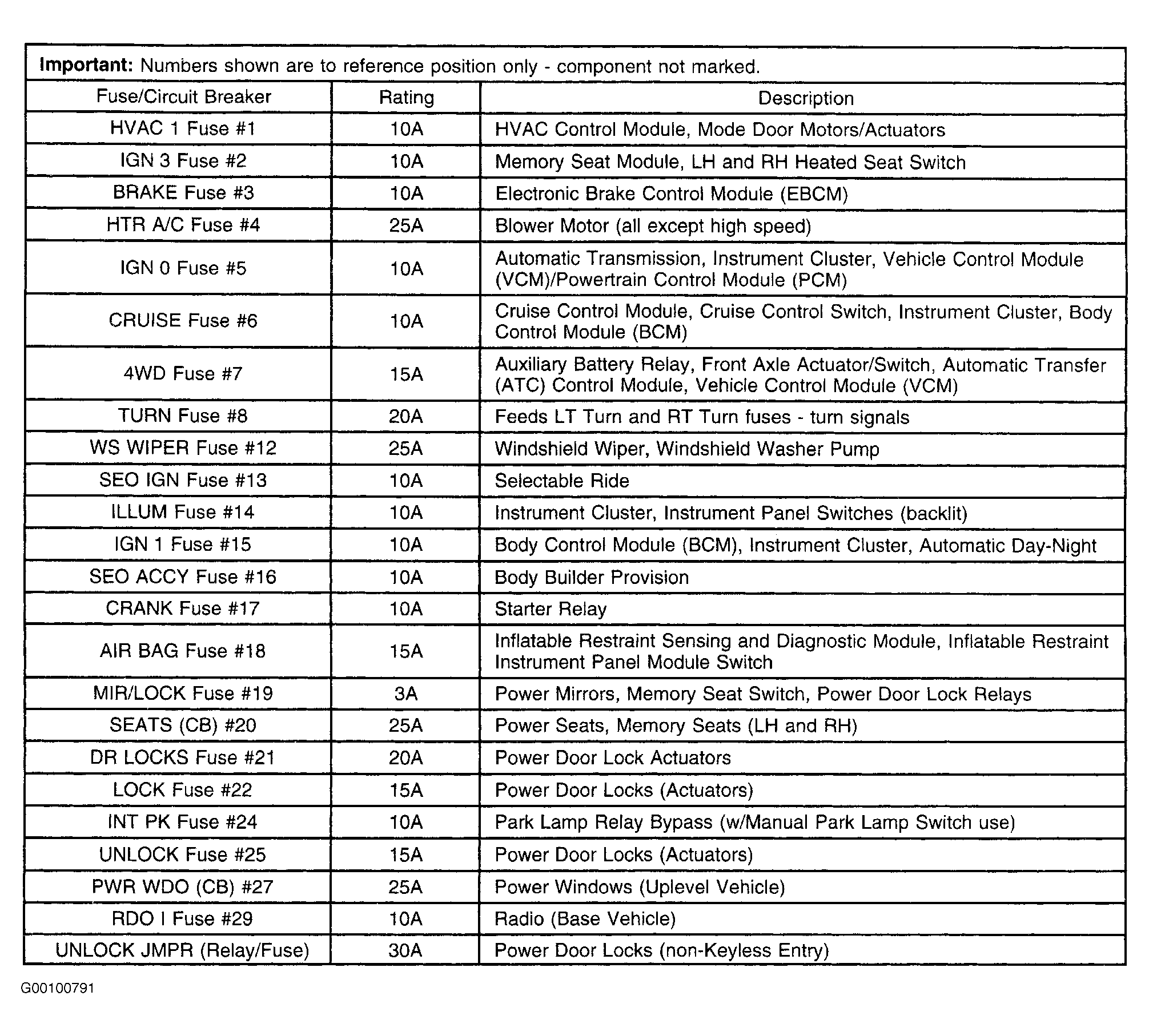

Fig 3: Instrument Panel Fuse Block Legend
G00100791Courtesy of GENERAL MOTORS CORP.
