Fuel Pump Balance Module



FUEL PUMP BALANCE MODULE
(Vehicles with Dual Tanks Only)

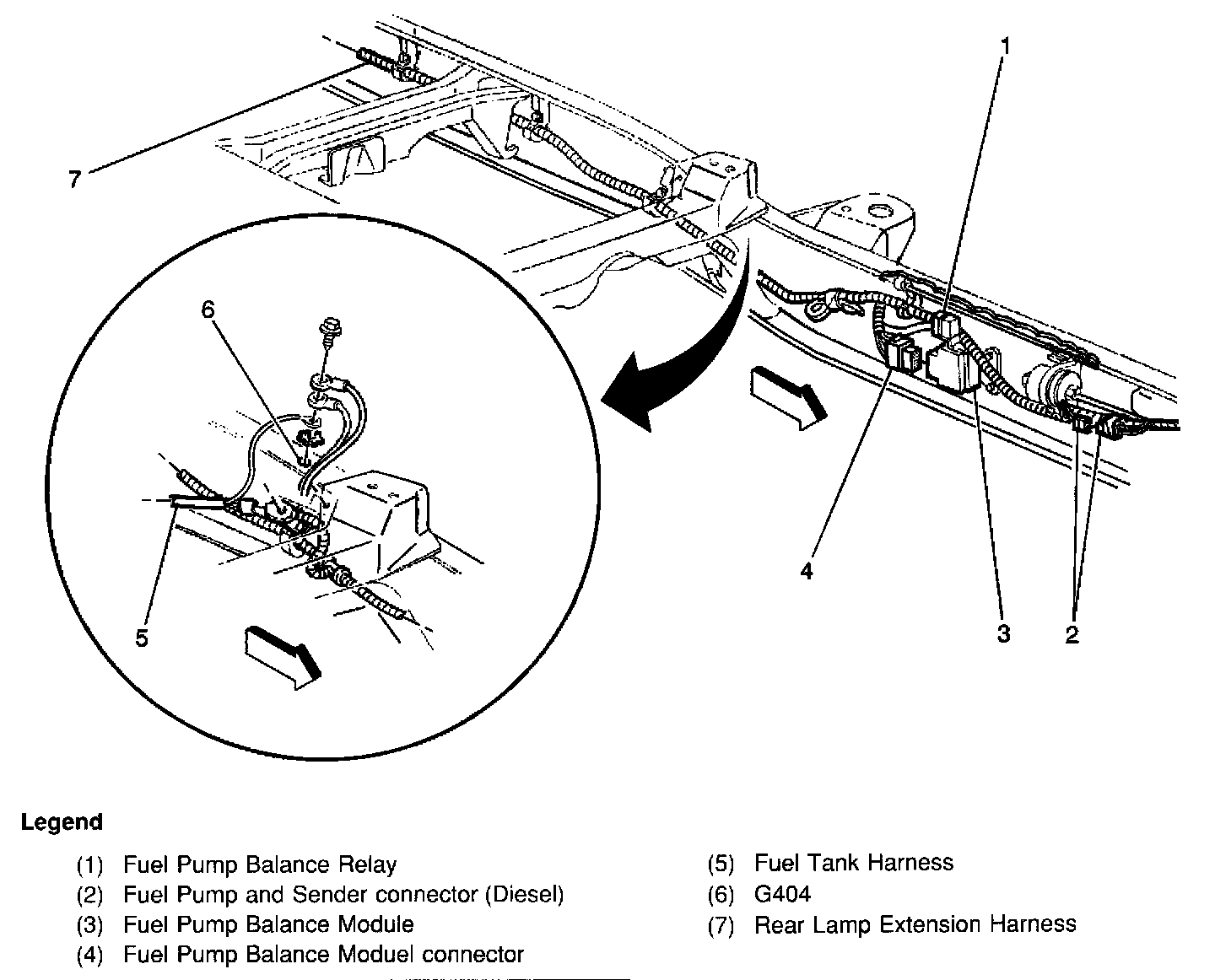

Locations View:






The Fuel Pump Balance Module is located inside LH Frame Rail, near Transmission Crossmember.
