HVAC Inputs And Outputs

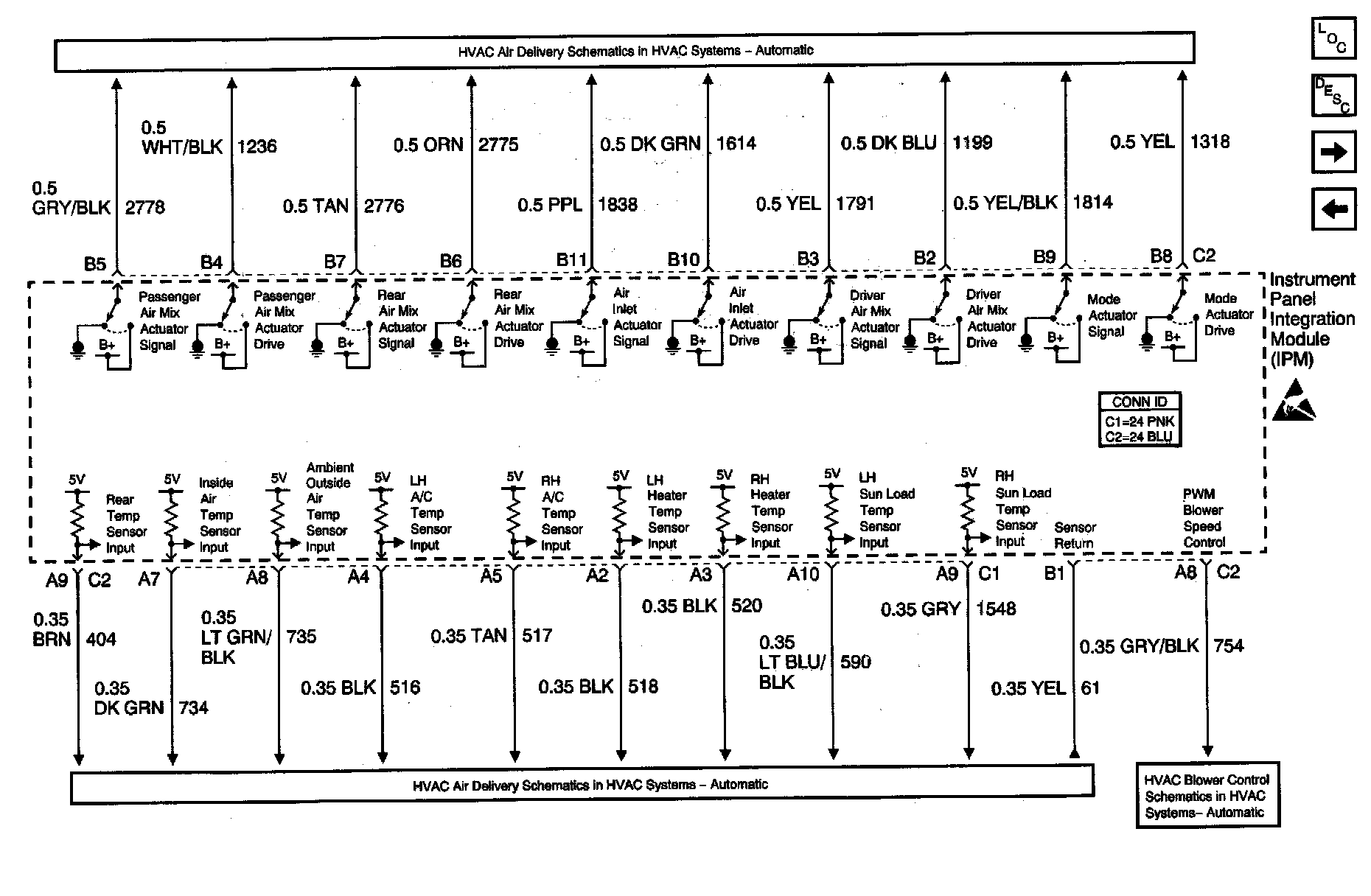

Body Control Module Schematics: Instrument Panel Integration Module (IPM) - HVAC Inputs And Outputs:
