Driver Door Module (DDM) Power, GD., Inputs And Outputs

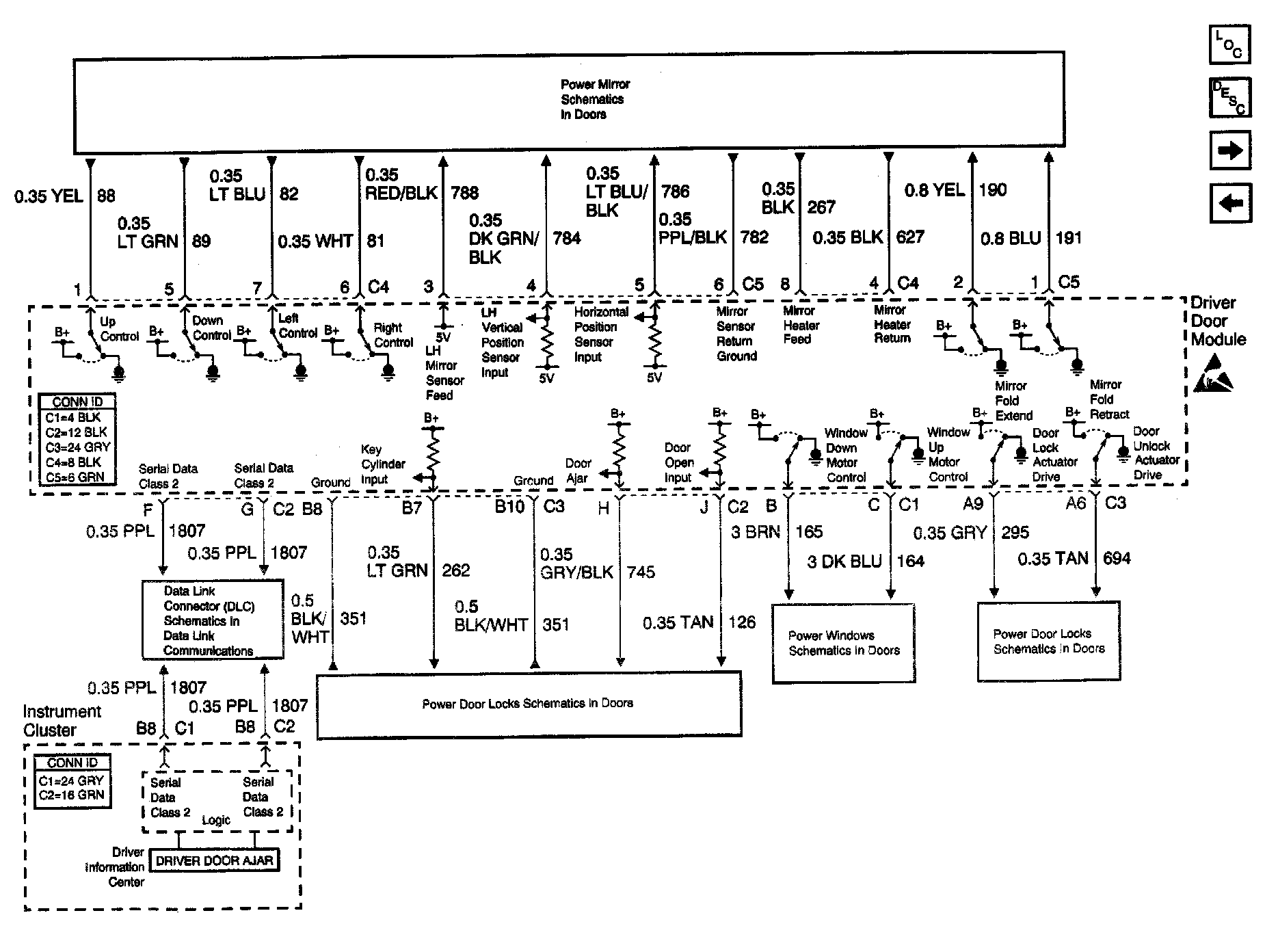

Door Control Module Schematics: Driver Door Module (DDM) Power, Gd., Inputs And Outputs (Part 1 Of 2):

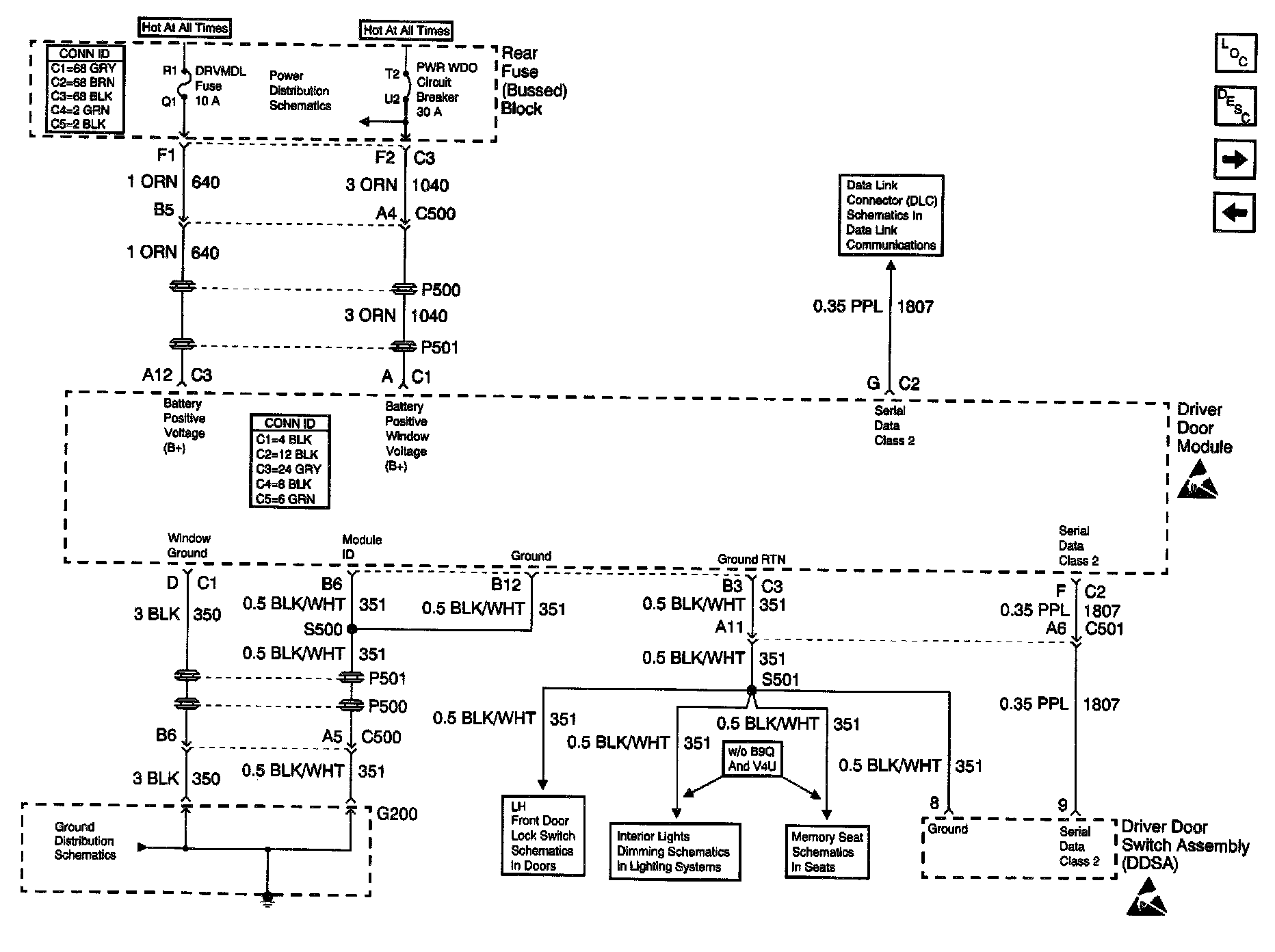

Door Control Module Schematics: Driver Door Module (DDM) Power, Gd., Inputs And Outputs (Part 2 Of 2):





For a description of the RPO Code(s) shown in this image/article refer to the RPO Code List found at Vehicle/Application ID RPO Codes
