Instrument Panel Integration Module (IPM): C2

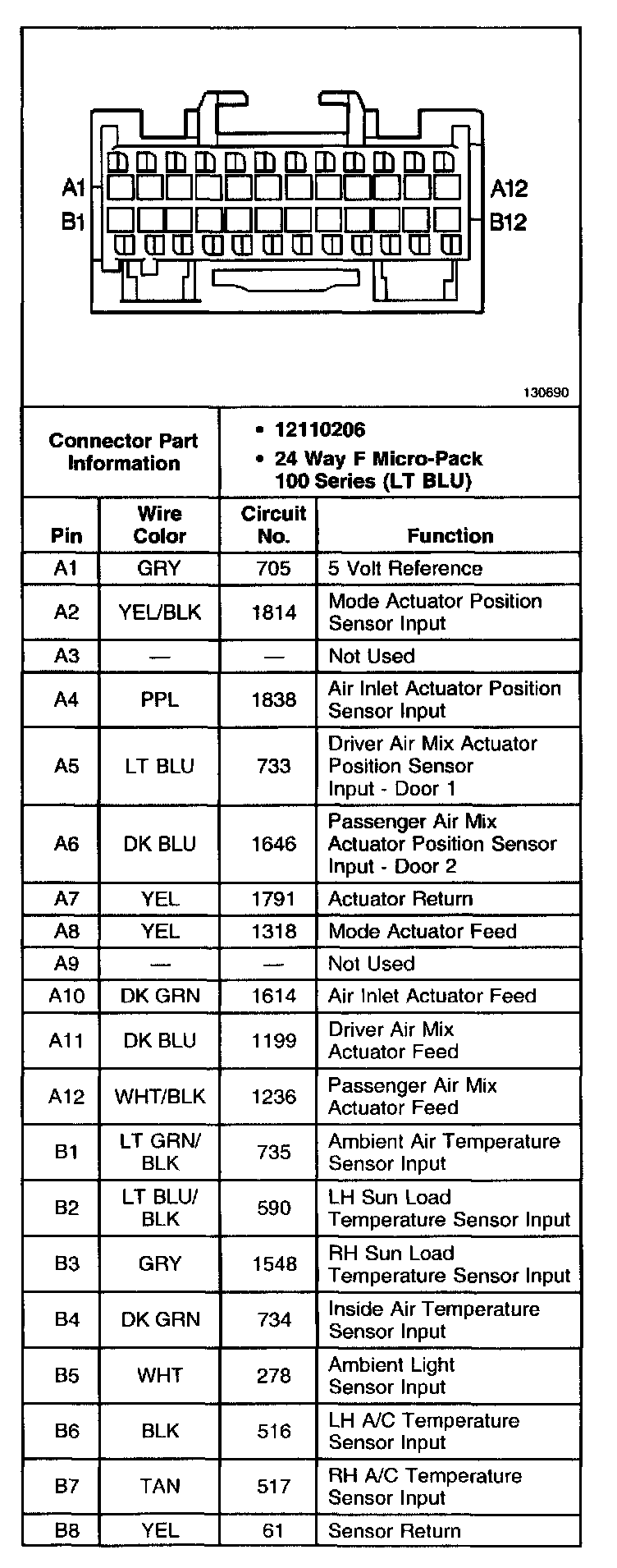

Instrument Panel Integration Module (IPM): C2 (Part 1 Of 2):



Instrument Panel Integration Module (IPM): C2 (Part 2 Of 2):
