Heated Windshield Power Module

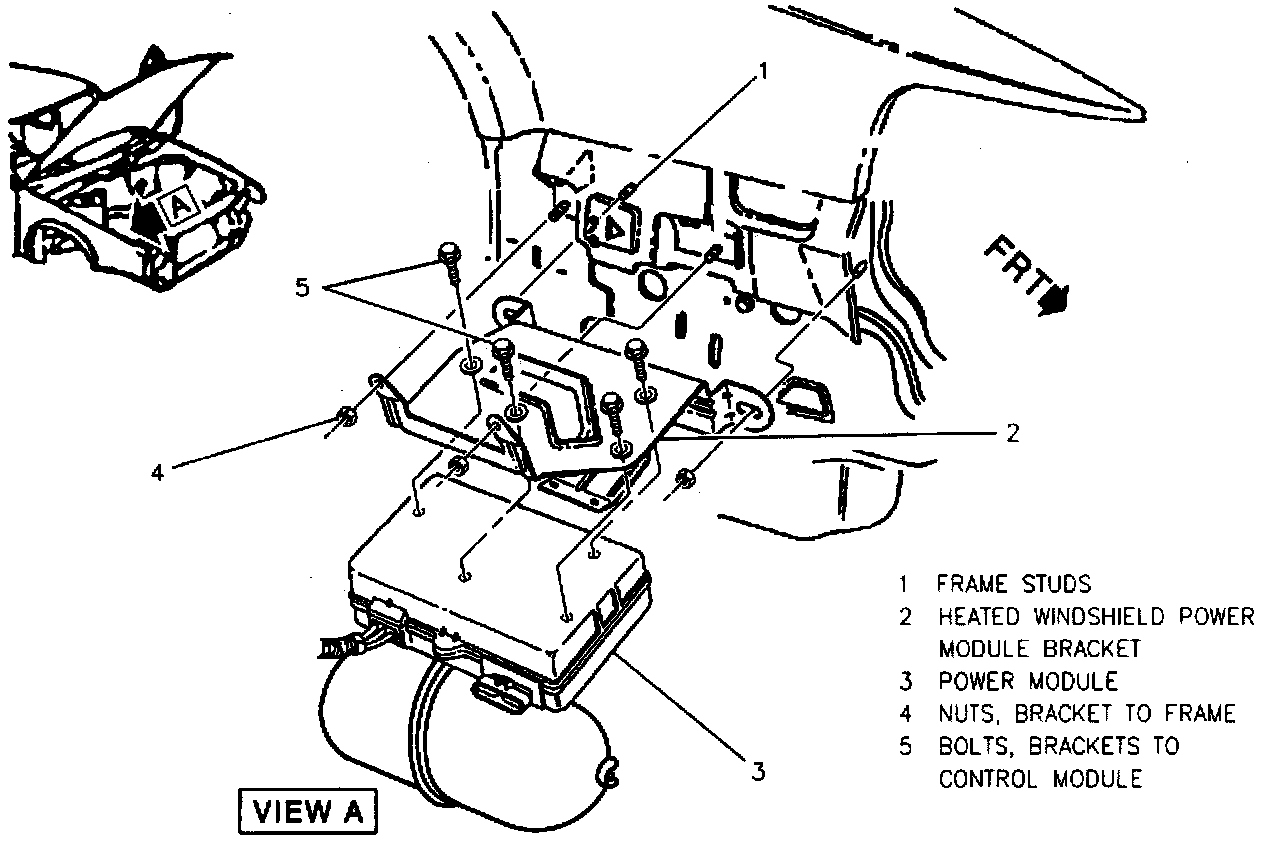

Heated Windshield Power Module:

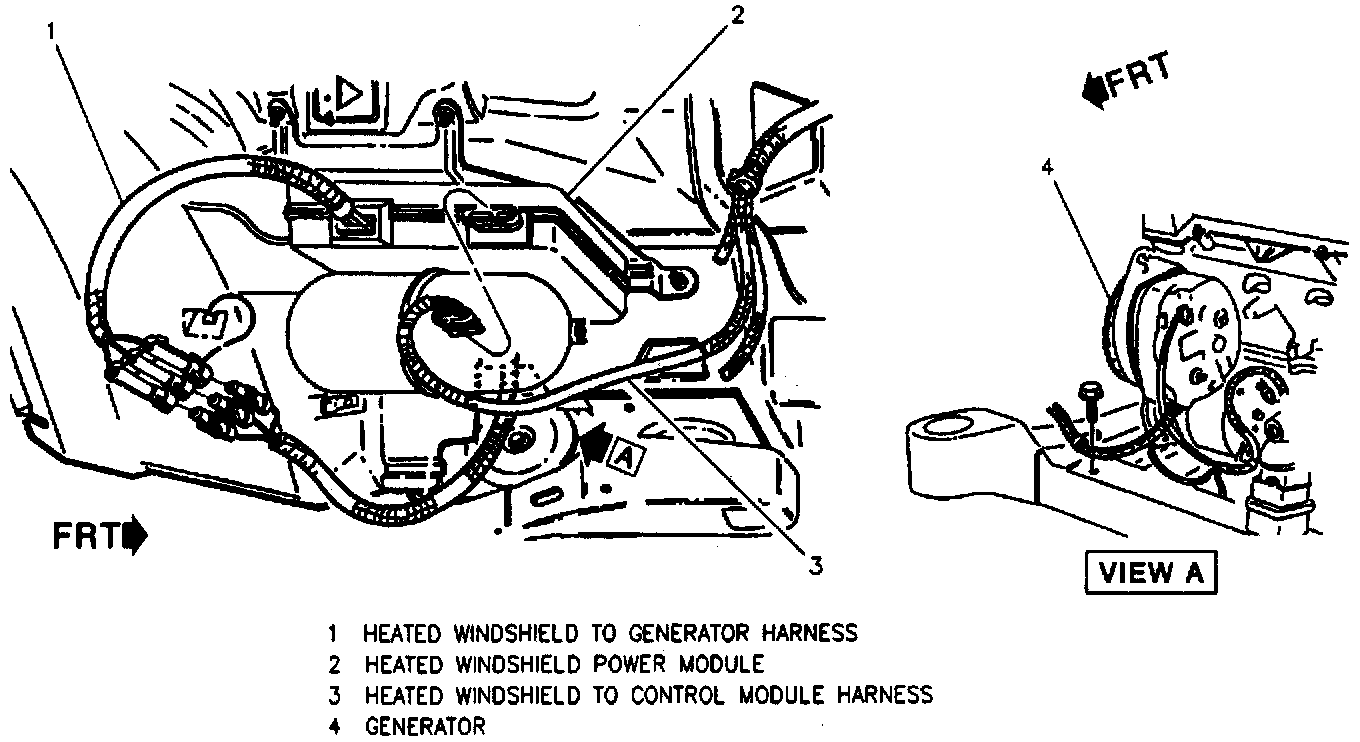

Heated Windshield Wiring:

REMOVE OR DISCONNECT
1. Heated windshield power module connector at power module.
2. Four nuts securing the heated windshield bracket from frame stud.
3. Four lower bolts (4) securing power module to bracket.

INSTALL OR CONNECT
1. Four bolts securing power module to bracket.
2. Four nuts securing the heated windshield bracket to frame studs.
3. Heated windshield power module connector at power module.
