Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Electronic Brake Control Module
>>
EBTCM Connector Pinout Table
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

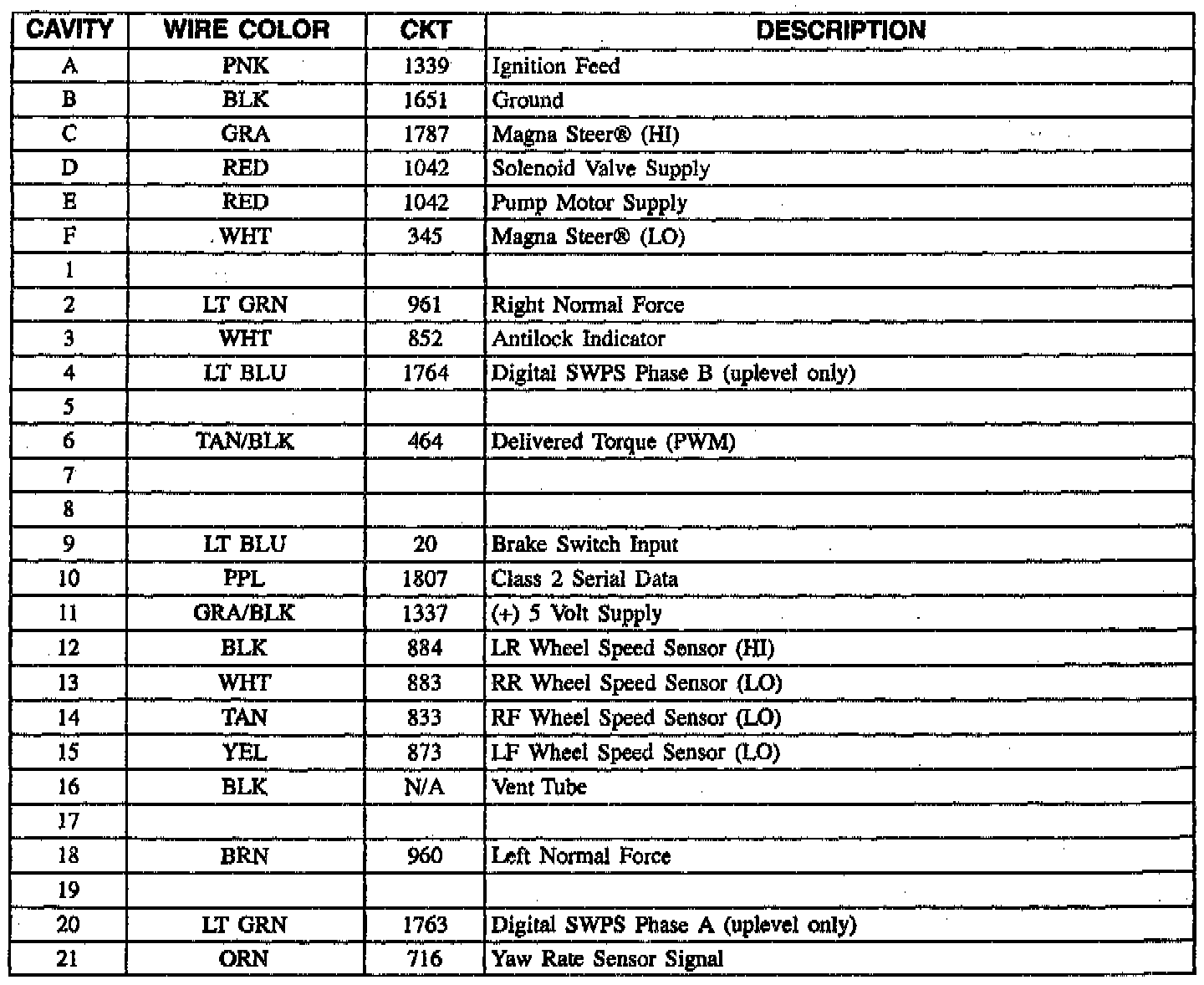

EBTCM Connector Pinout Table
EBTCM Connector C1 And C2:
EBTCM Connector Pinout Table:
EBTCM Pinout Table:
