Windshield Washer Nozzle (Right Hand)

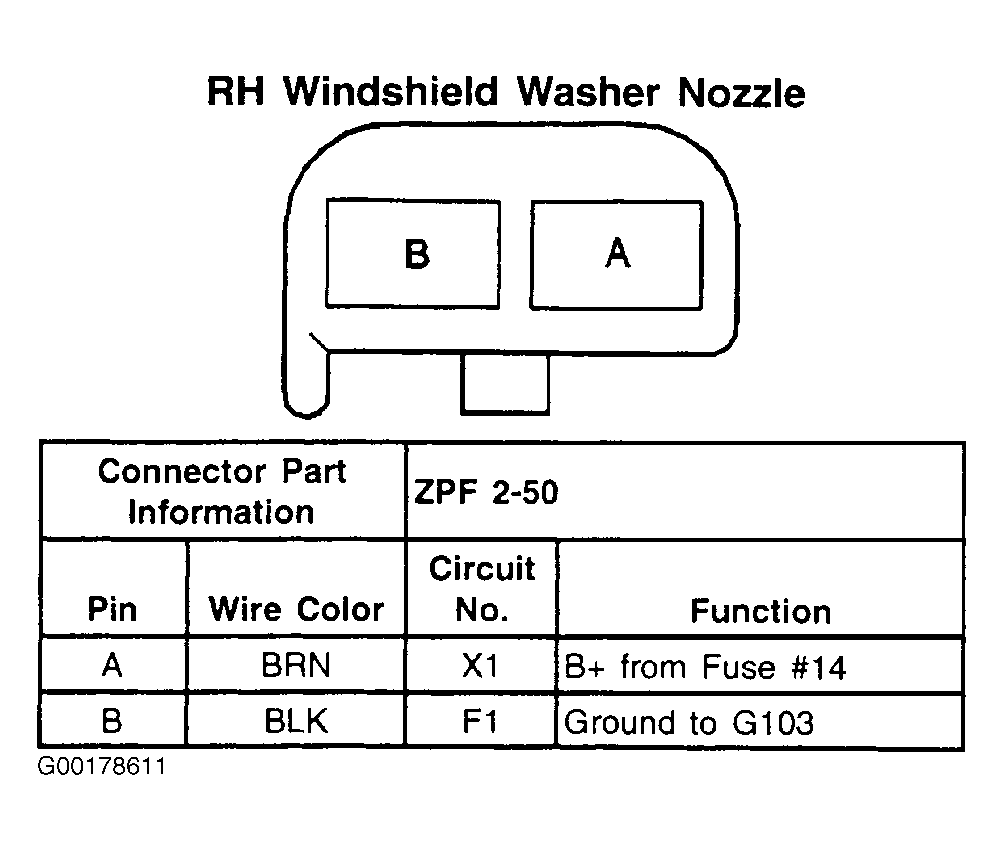

Fig 1: Windshield Washer Nozzle (Right Hand) - 2-Pin Connector
G00178611Courtesy of GENERAL MOTORS CORP.
