Remote Control Door Lock Receiver (RCDLR)

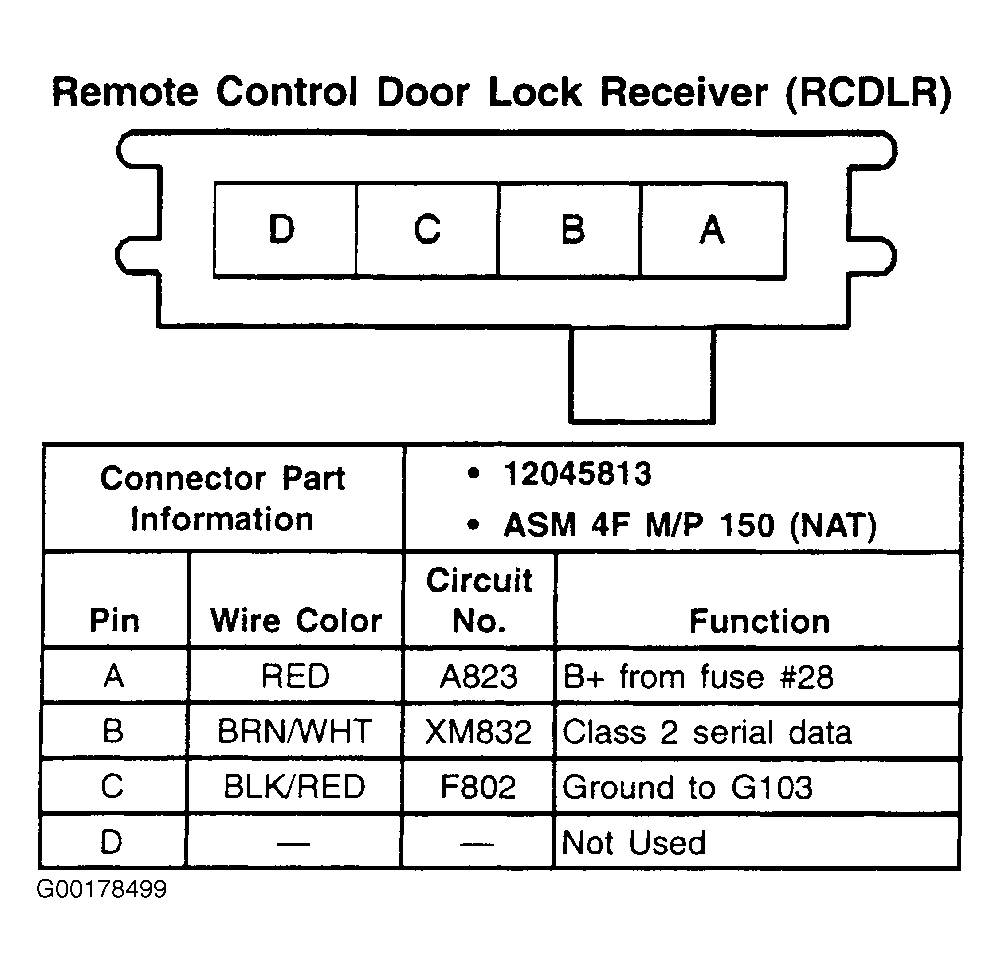

Fig 1: Remote Control Door Lock Receiver (RCDLR) - 4-Pin Connector (Natural)
G00178499Courtesy of GENERAL MOTORS CORP.
