Gauge Cluster Connector

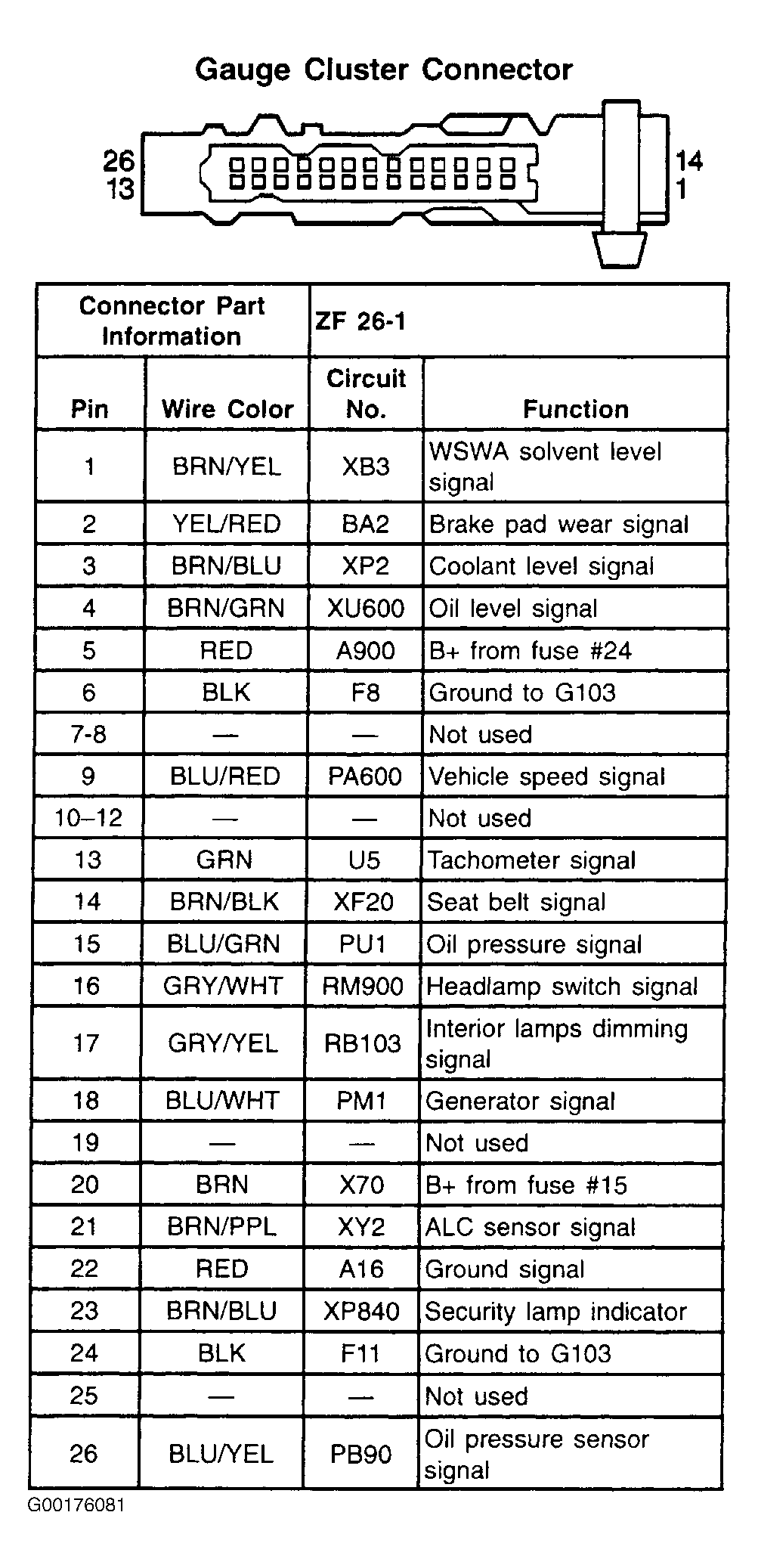

Fig 1: Gauge Cluster Connector - 26-Pin Connector
Courtesy of GENERAL MOTORS CORP.
