Connector Terminal Identification
>>
Power Seats
>>
Driver Seat - C315
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Seat - C315

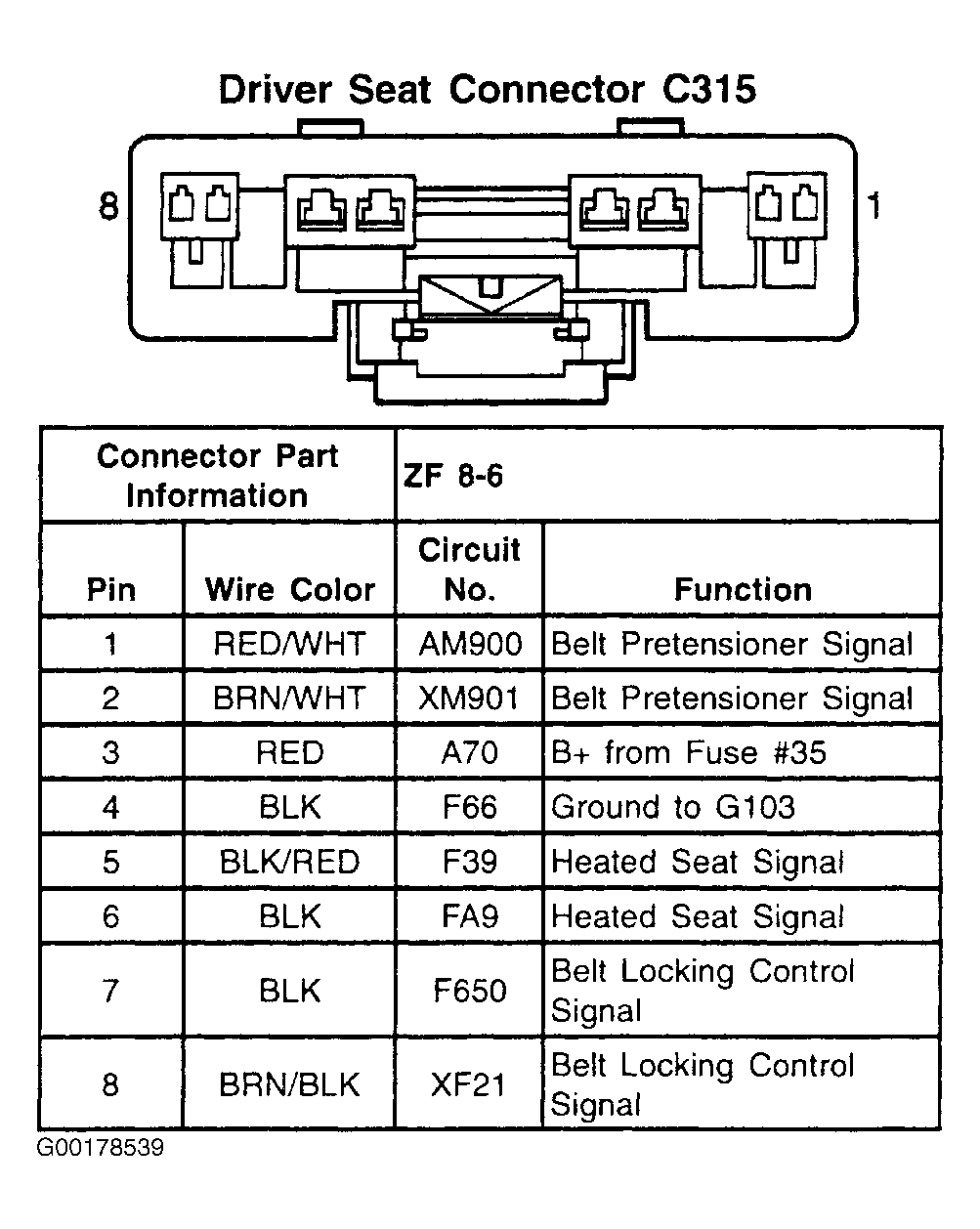

Fig 1: Driver Seat C315 - 8-Pin Connector
Courtesy of GENERAL MOTORS CORP.
