Connector Terminal Identification
>>
HVAC Connectors
>>
A/C Load Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/C Load Switch

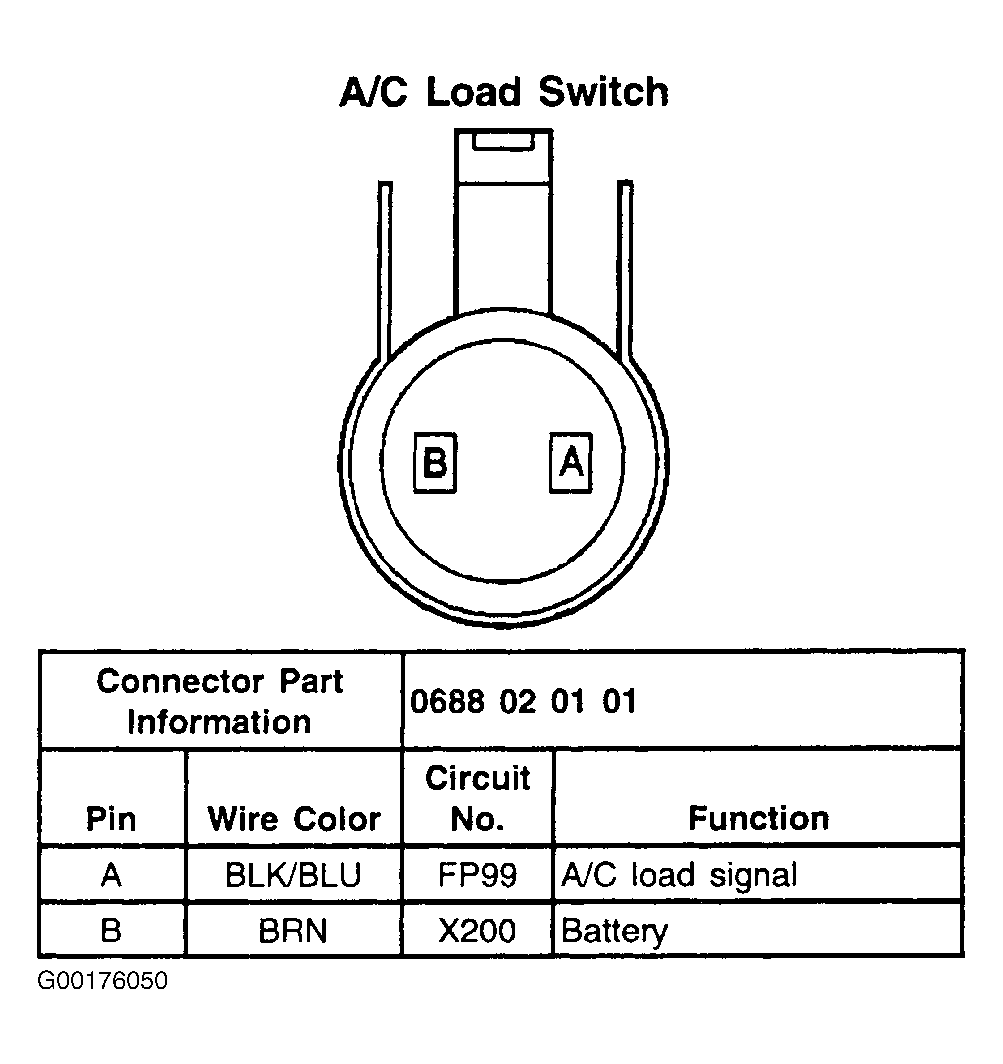

Fig 1: A/C Load Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
