A/C Compressor Relay K60

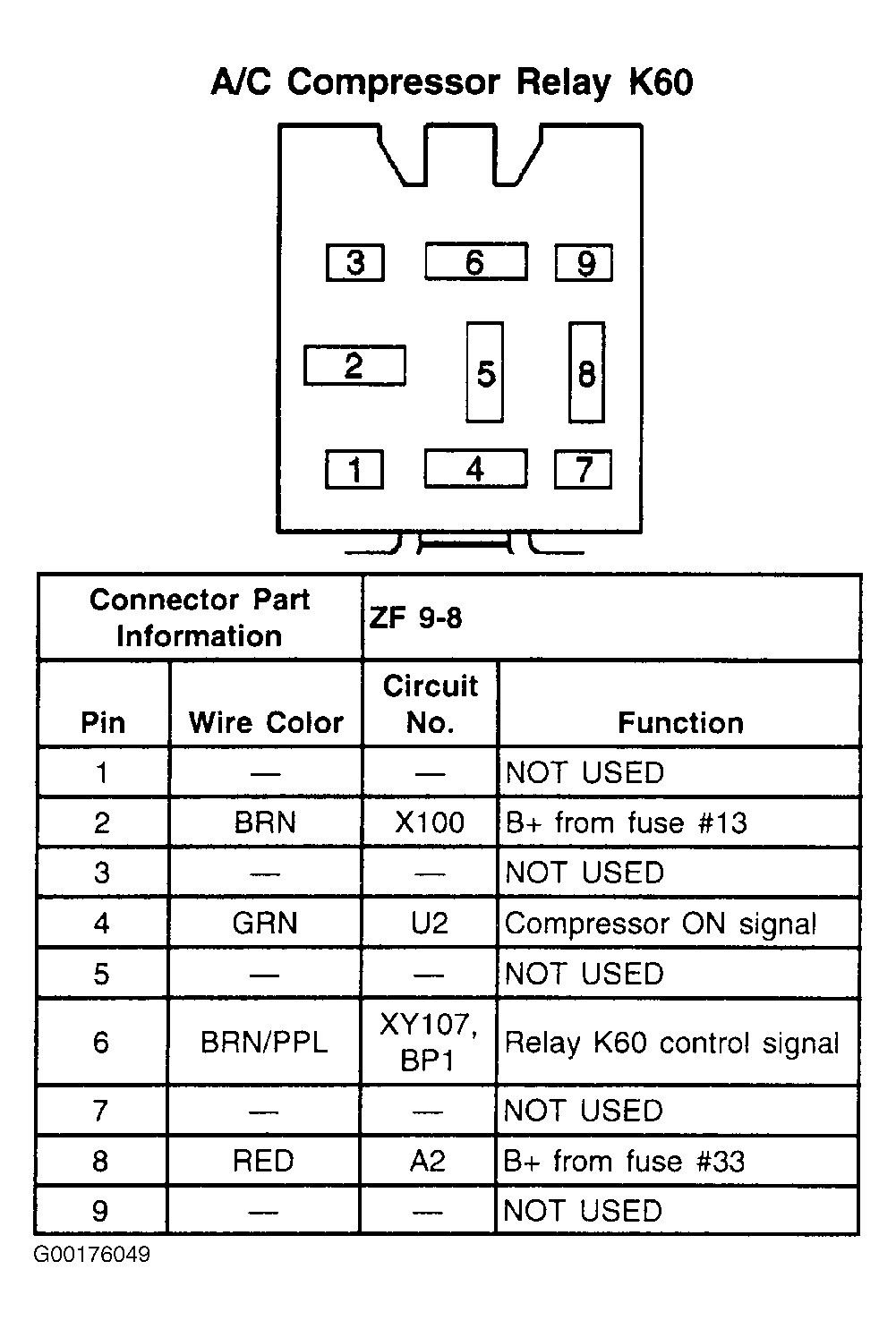

Fig 1: A/C Compressor Relay K60 - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
