Output Shaft Speed (OSS) Sensor

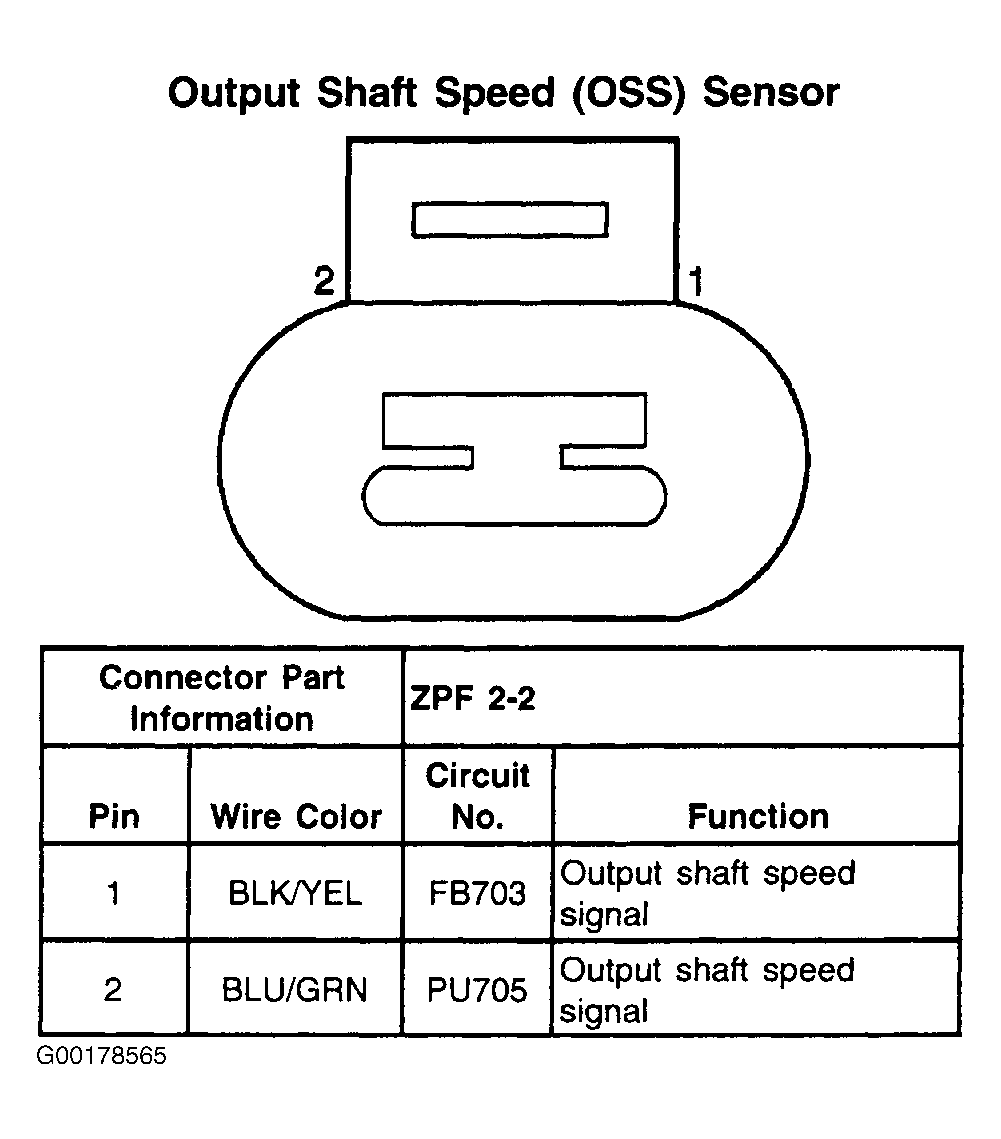

Fig 1: Output Shaft Speed (OSS) Sensor - 2-Pin Connector
G00178565Courtesy of GENERAL MOTORS CORP.
