Home
>>
Cadillac
>>
1996
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Control Module
>>
Pinout Description
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Pinout Description

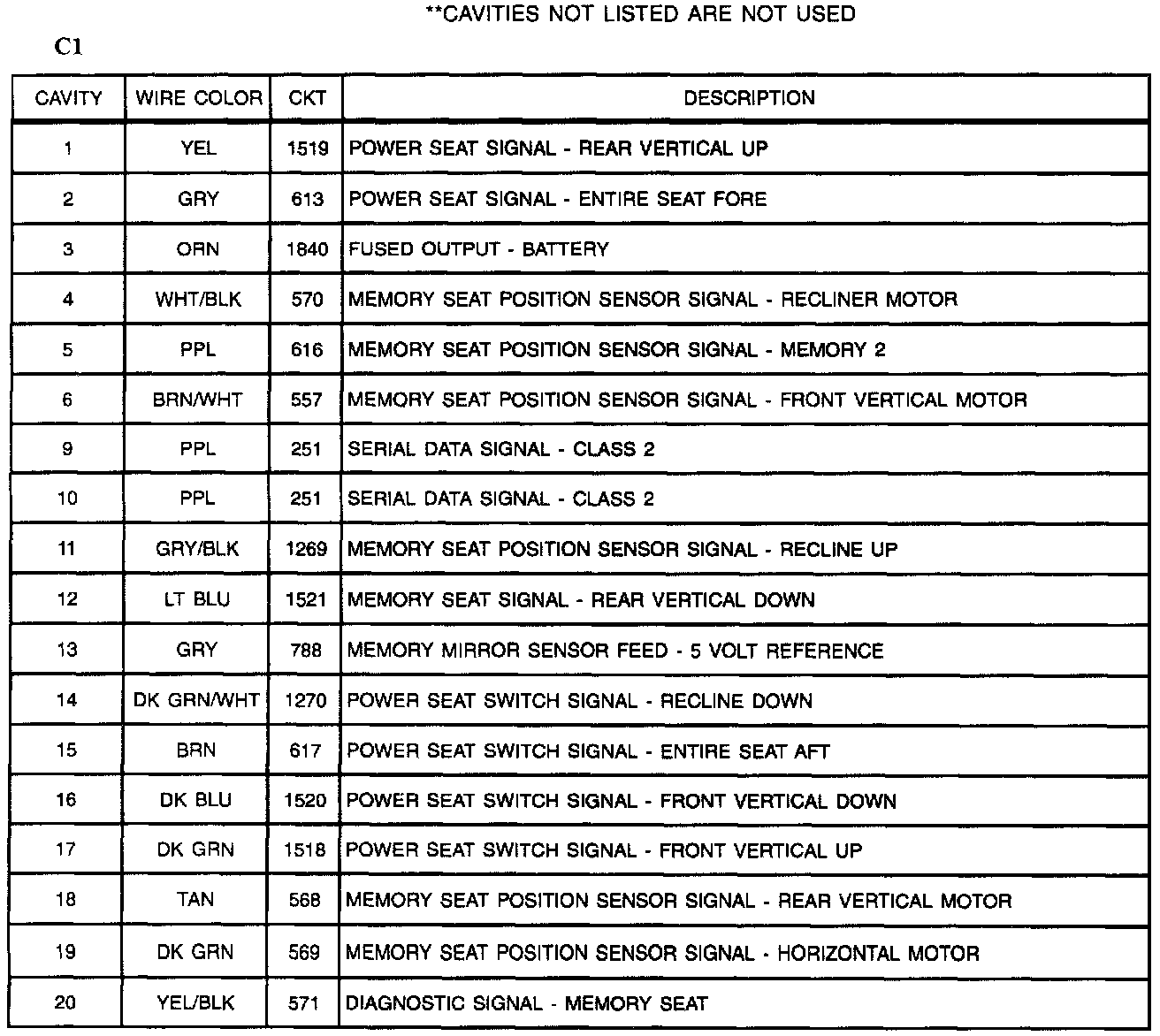

Memory Seat Module C1 (AG7) (Part 1 Of 2):
Memory Seat Module C1 (AG7) (Part 2 Of 2):
