C1 (Blue)

PCM Connector C1 (Blue):




PCM Connector Face

PCM Connector C1 Pin Functions - Part 1 Of 3:




Pins 1 through 17

PCM Connector C1 Pin Functions - Part 2 Of 3:

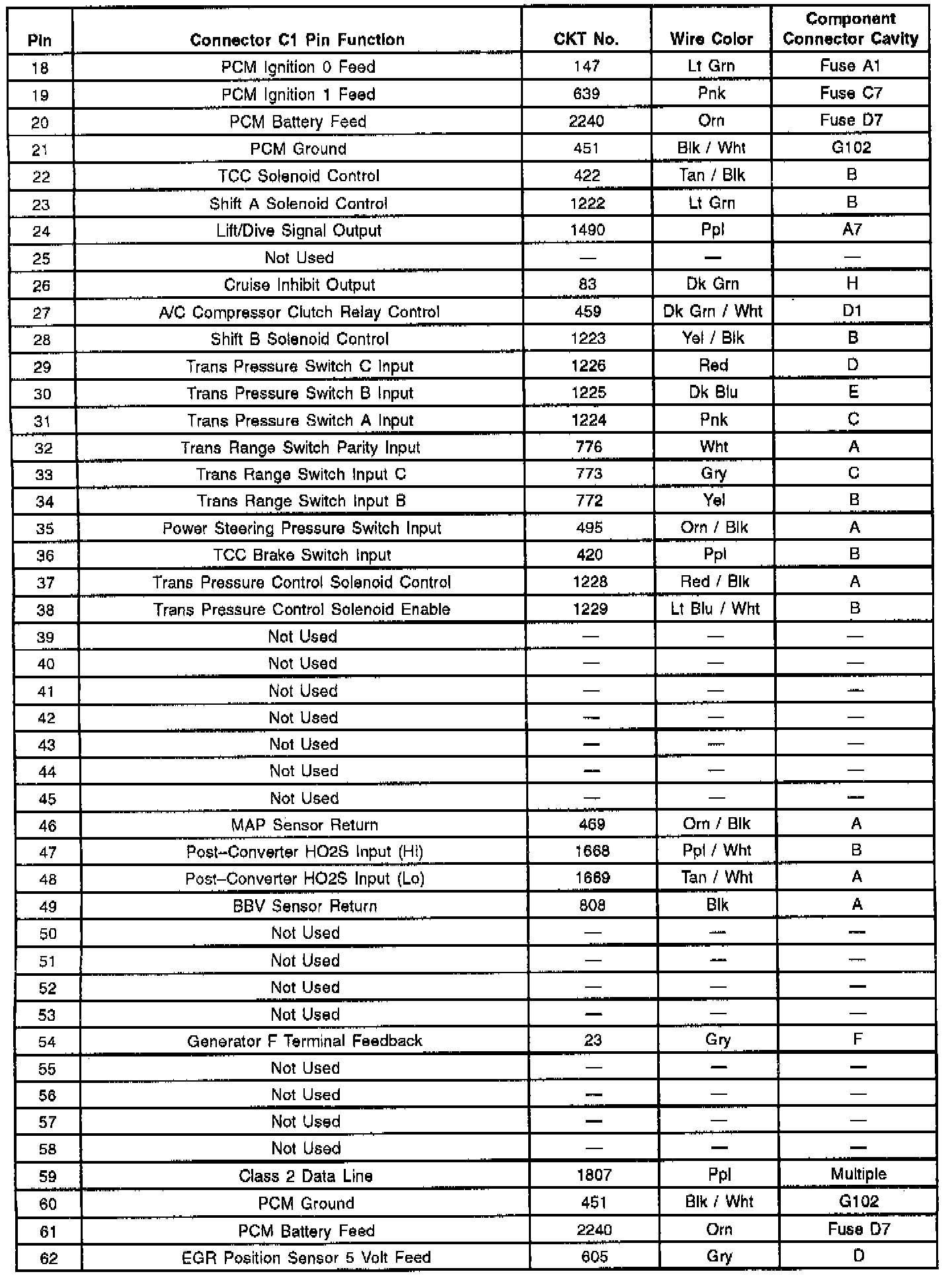

Pins 18 through 62

PCM Connector C1 Pin Functions - Part 3 Of 3:




Pins 63 through 80
