Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

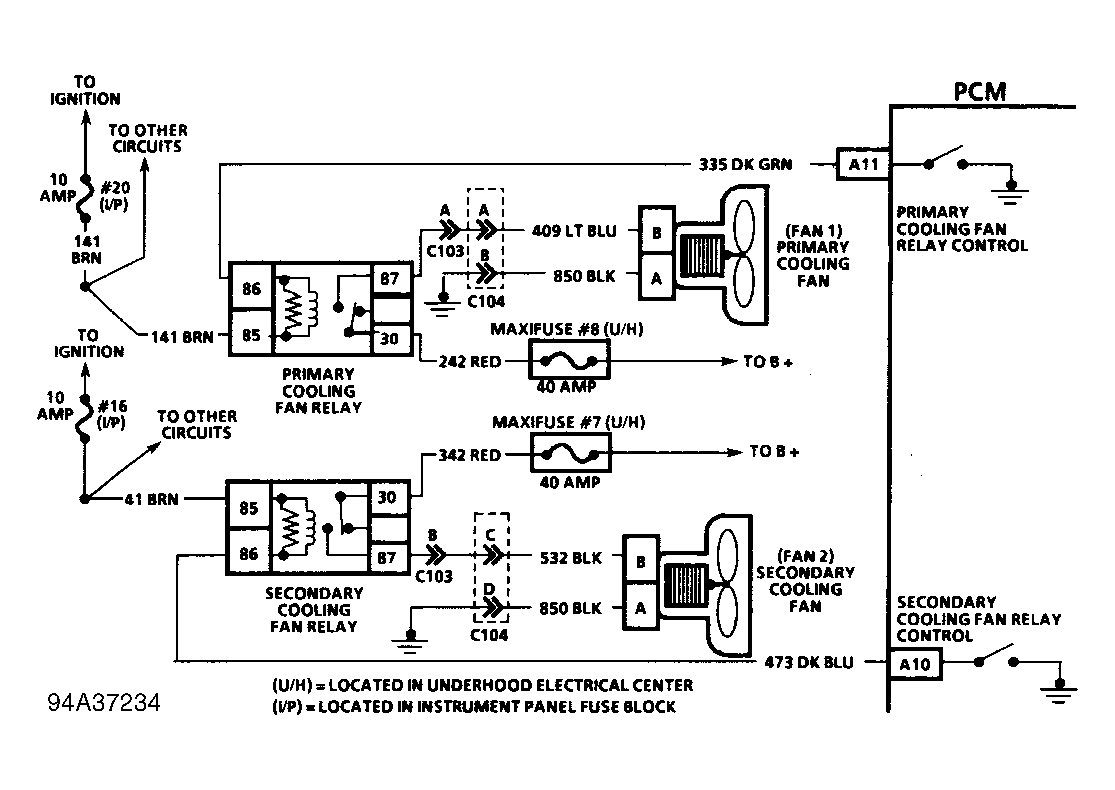

Fig 1: Code 78 Schematic (Fleetwood) Secondary Cooling Fan Driver
G94A37234
Fig 2: Code 78 Flow Chart (Fleetwood) Secondary Cooling Fan Driver
G94C35164
