Note On Intermittents

If complaint is no-start, ALTERNATOR FUNCTIONAL CHECK  is okay, and no codes are set, check if battery is faulty.

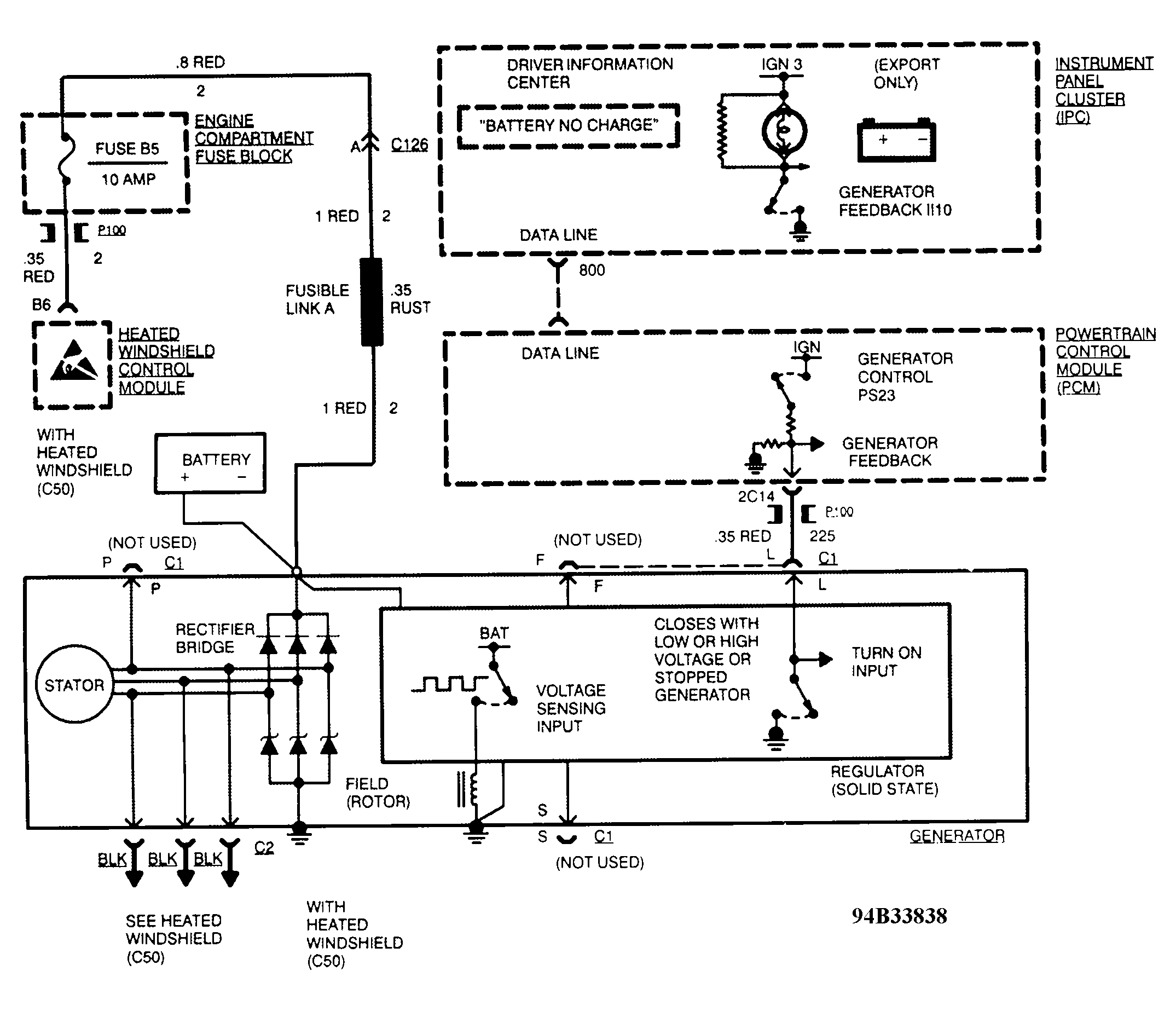

Fig 1: Alternator Functional Check Schematic

Courtesy of GENERAL MOTORS CORP.

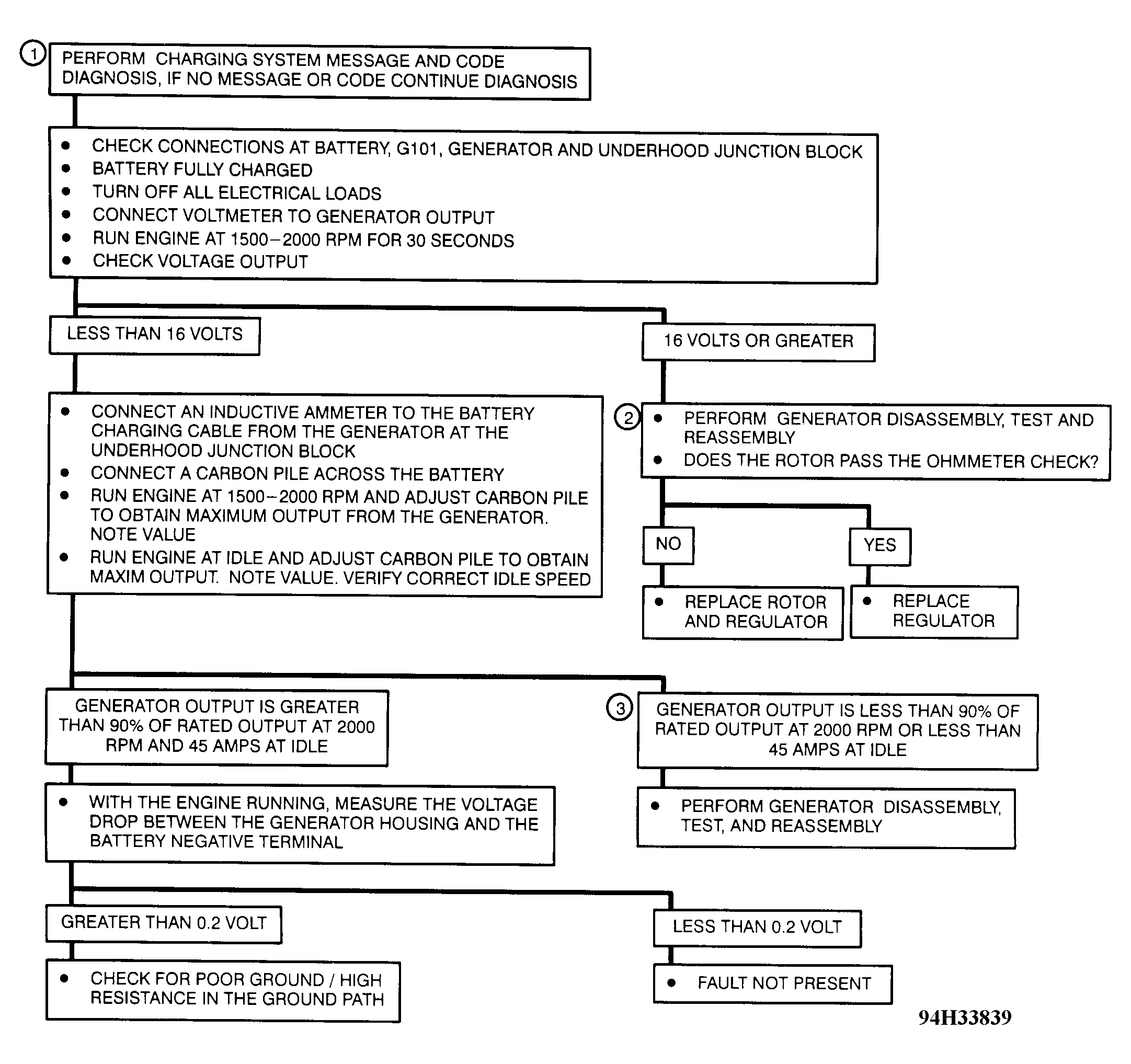

Fig 2: Alternator Functional Check Flow Chart

Courtesy of GENERAL MOTORS CORP.
