Wiring Diagrams

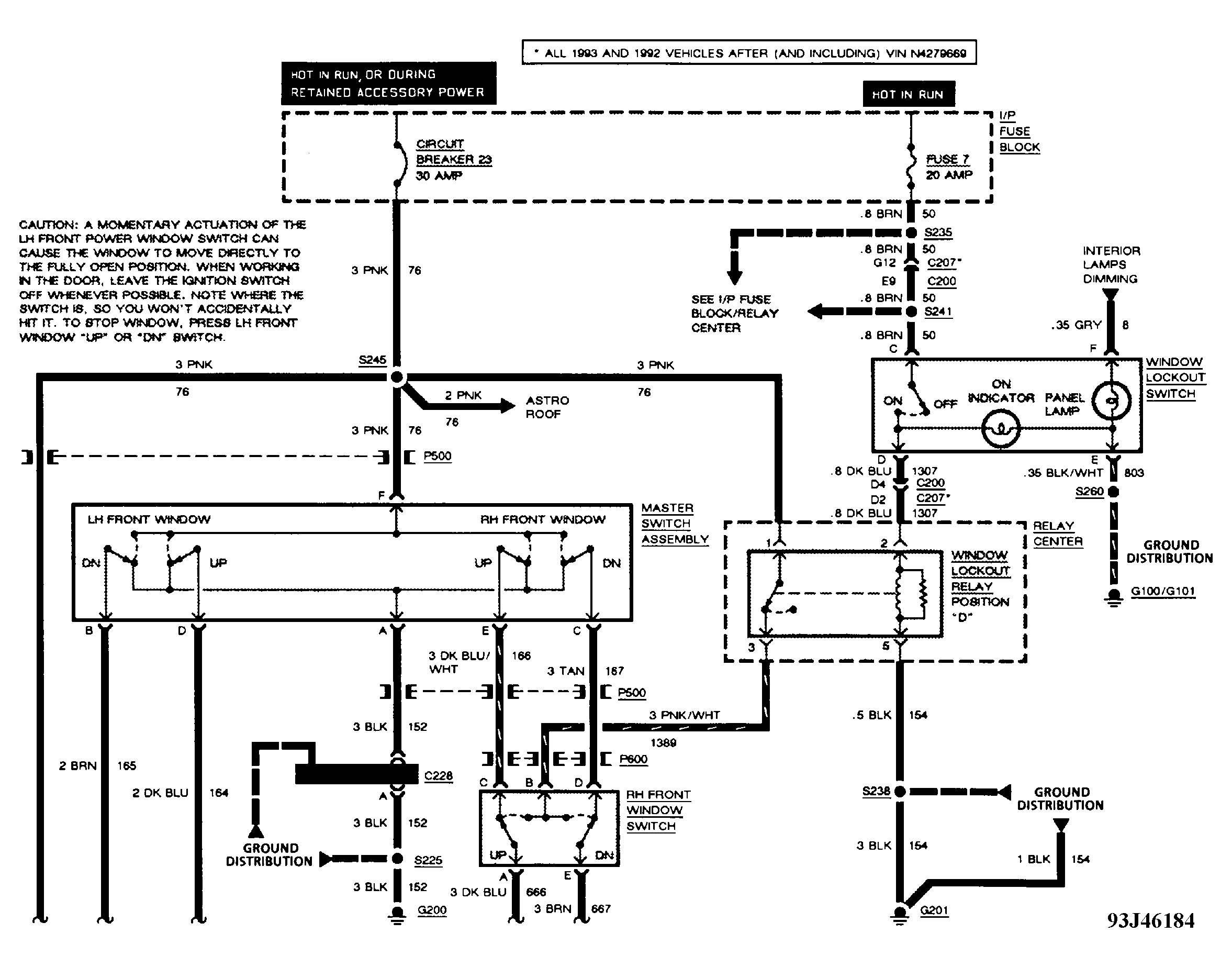

Fig 1: Power Windows Wiring Diagram (Coupe - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

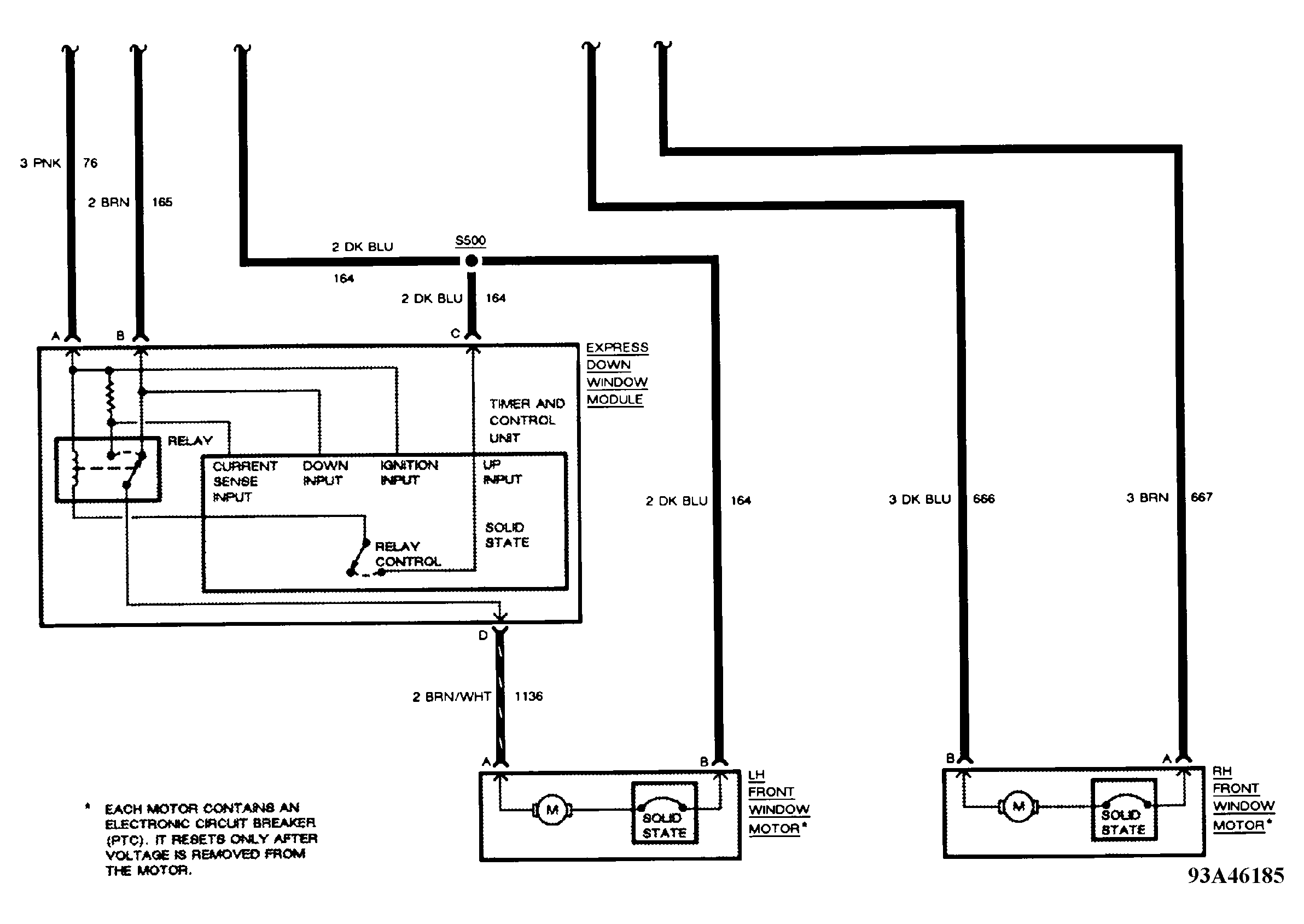

Fig 2: Power Windows Wiring Diagram (Coupe - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.

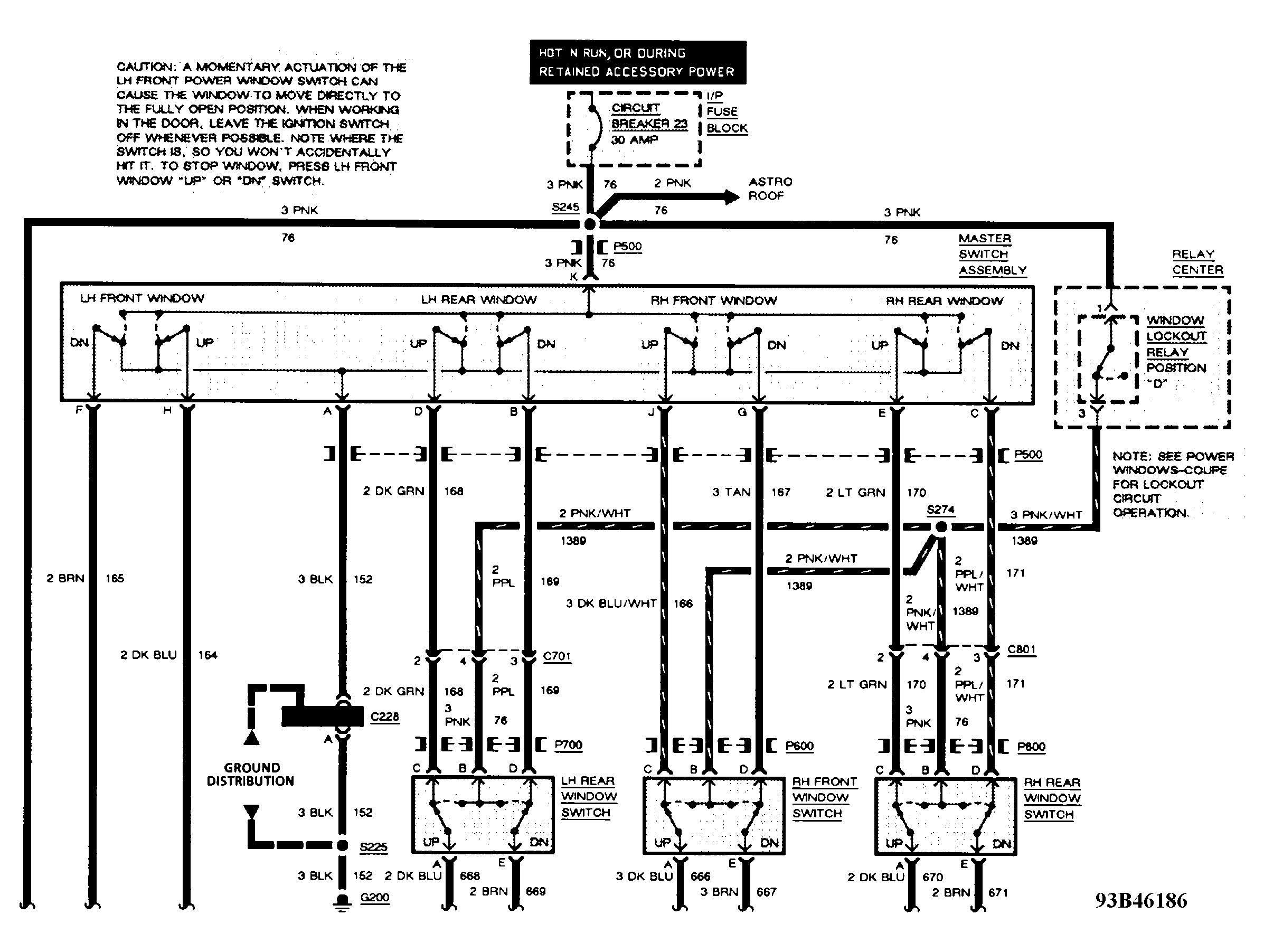

Fig 3: Power Windows Wiring Diagram (Sedan - 1 Of 2)
Courtesy of GENERAL MOTORS CORP.

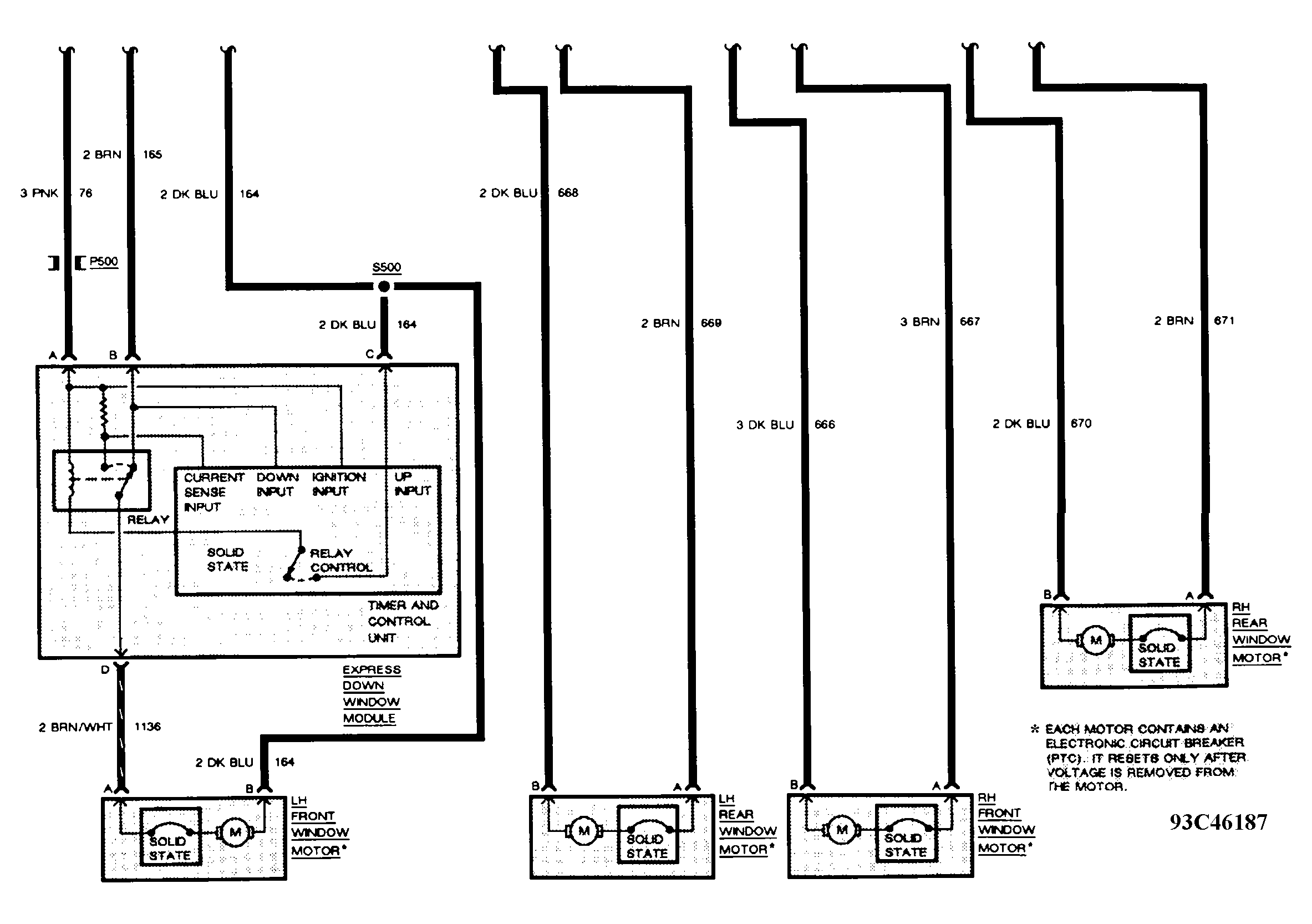

Fig 4: Power Windows Wiring Diagram (Sedan - 2 Of 2)
Courtesy of GENERAL MOTORS CORP.
