Troubleshooting Step 4

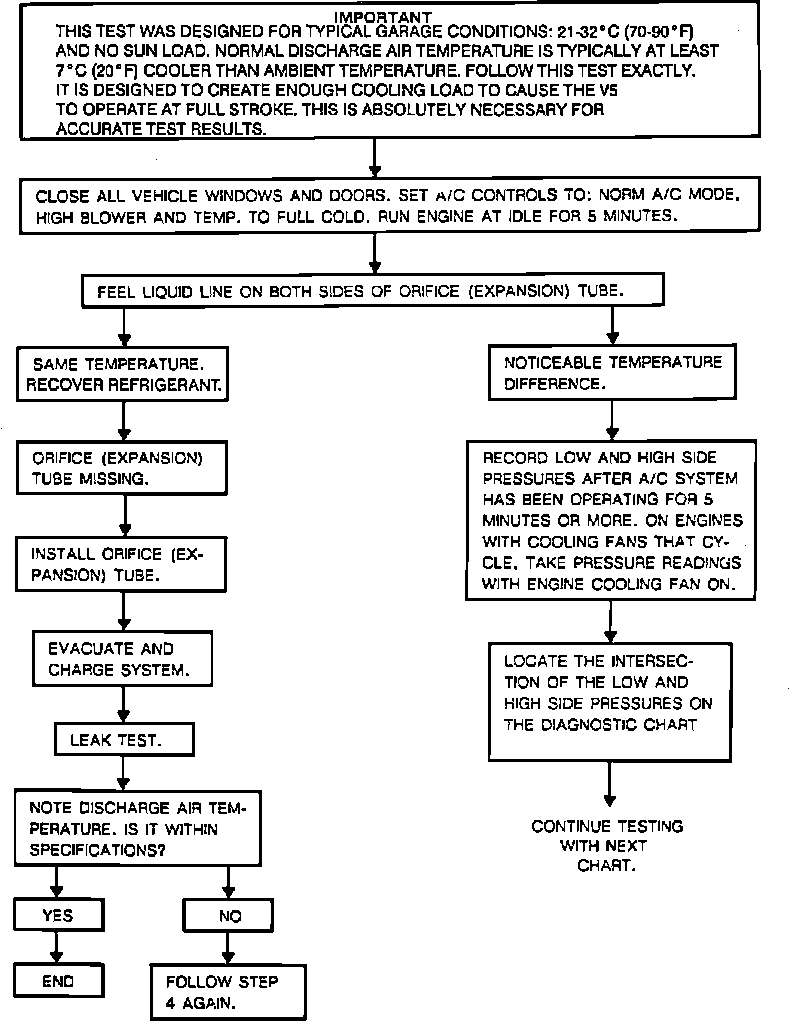

Troubleshooting Step 4 (Part 1 Of 2). Variable Displacement Orifice Tube System:

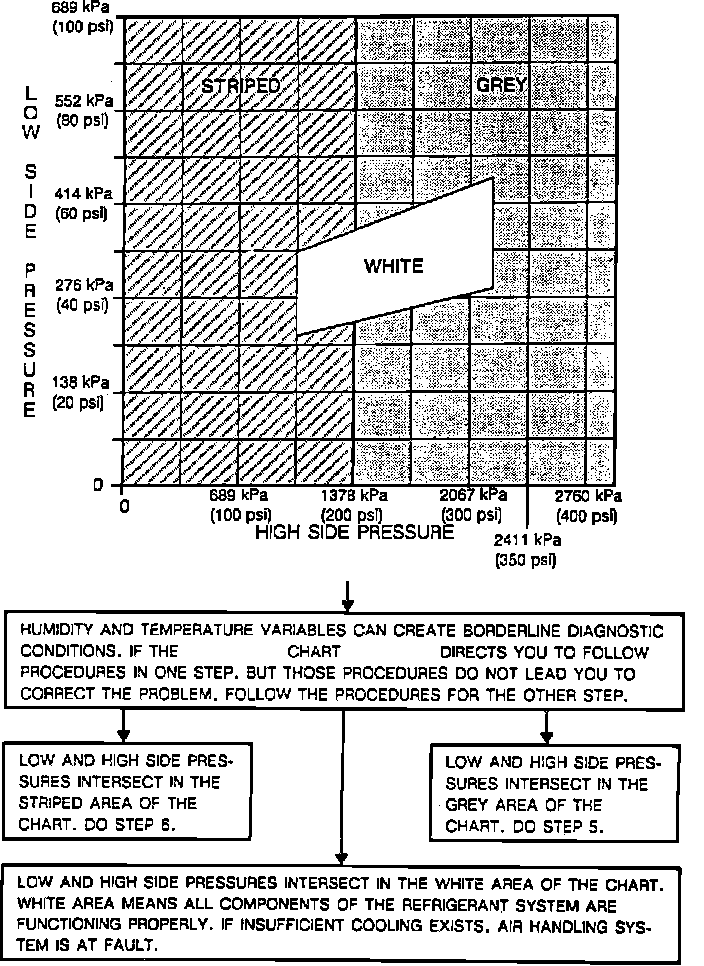

Troubleshooting Step 4 (Part 2 Of 2). Variable Displacement Orifice Tube System:
