Speed Sensor: Installation

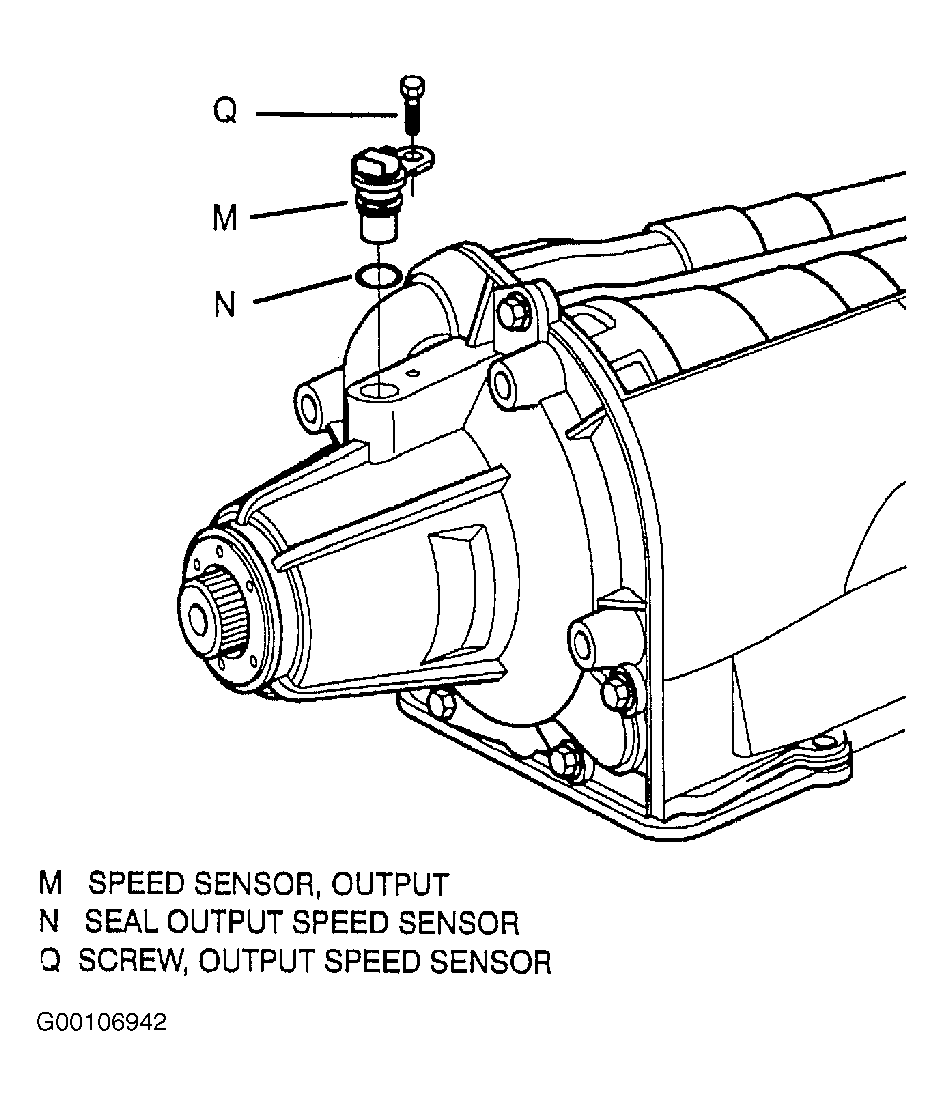

  1. Install sensor and retaining bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS  . See Figure .
  2. Install electrical connector at sensor.
  3. Install right front tire and wheel.
  4. Lower vehicle.
