Lower Control Assembly: Installation

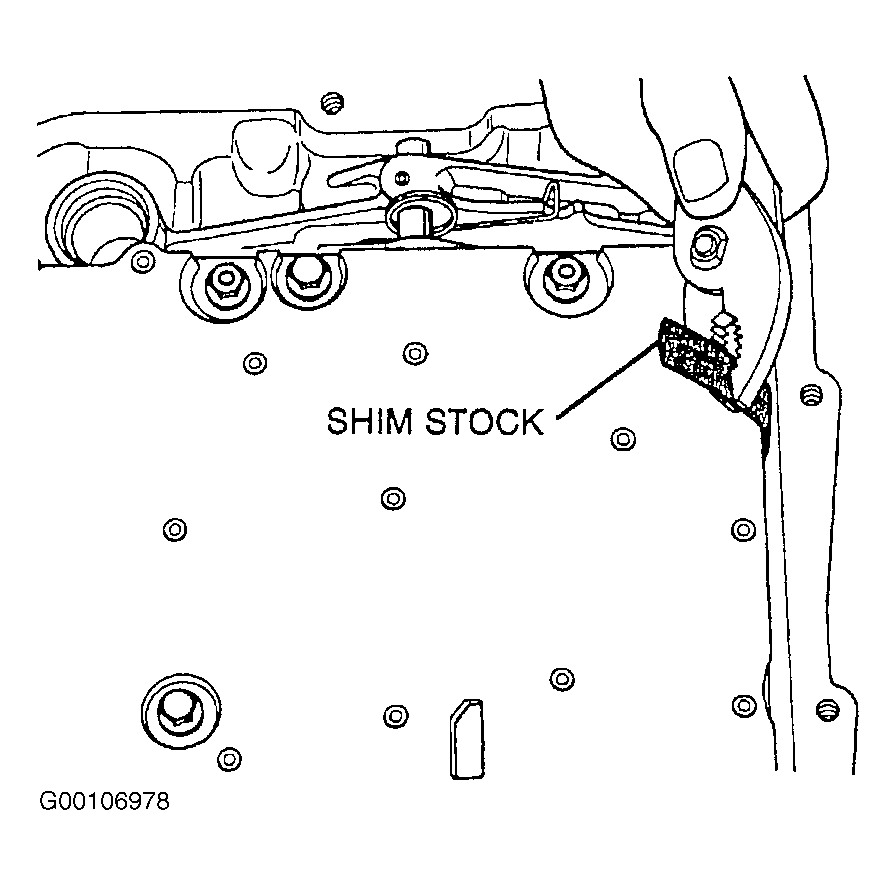

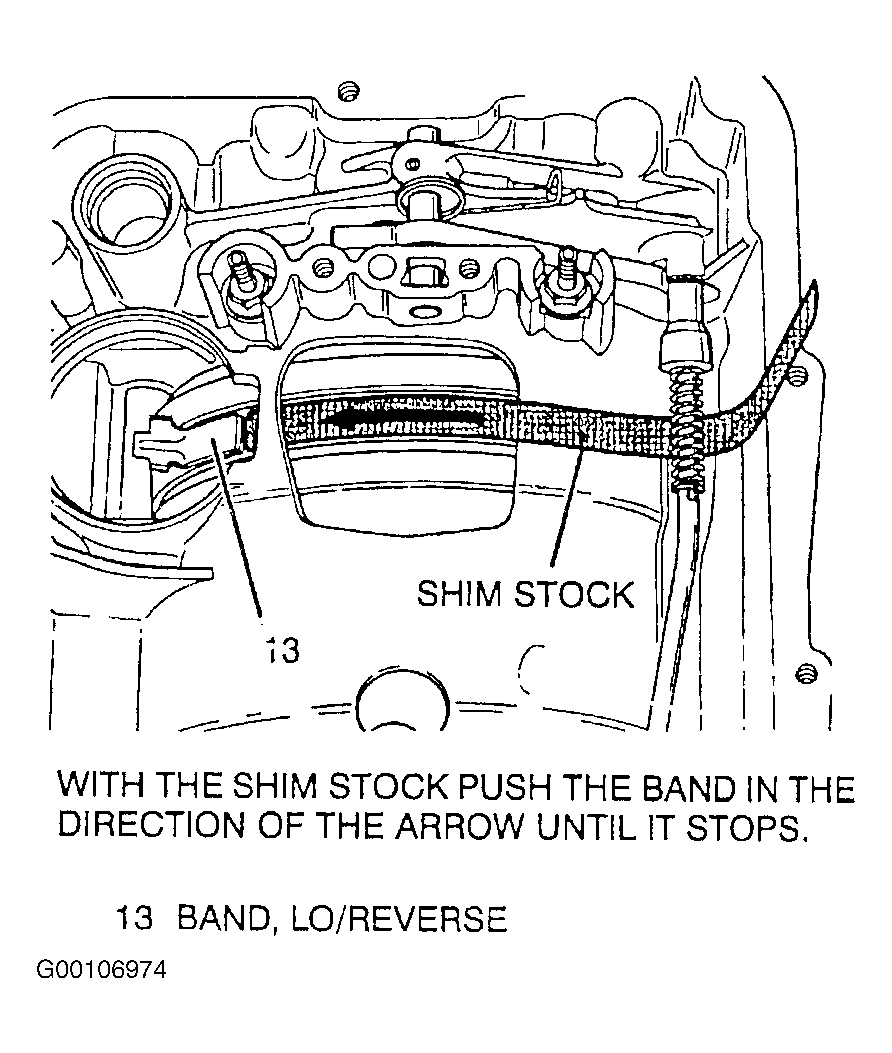

- Position the low reverse band using a piece of shim stock. (Shim thickness 0.20-0.030"). See Fig 1 .
- Place lower controls against forward support studs.
- Hand start bolts into channel plate. Bolts without flange are located next to transfer plate. Remove shim stock. See Fig 2 .

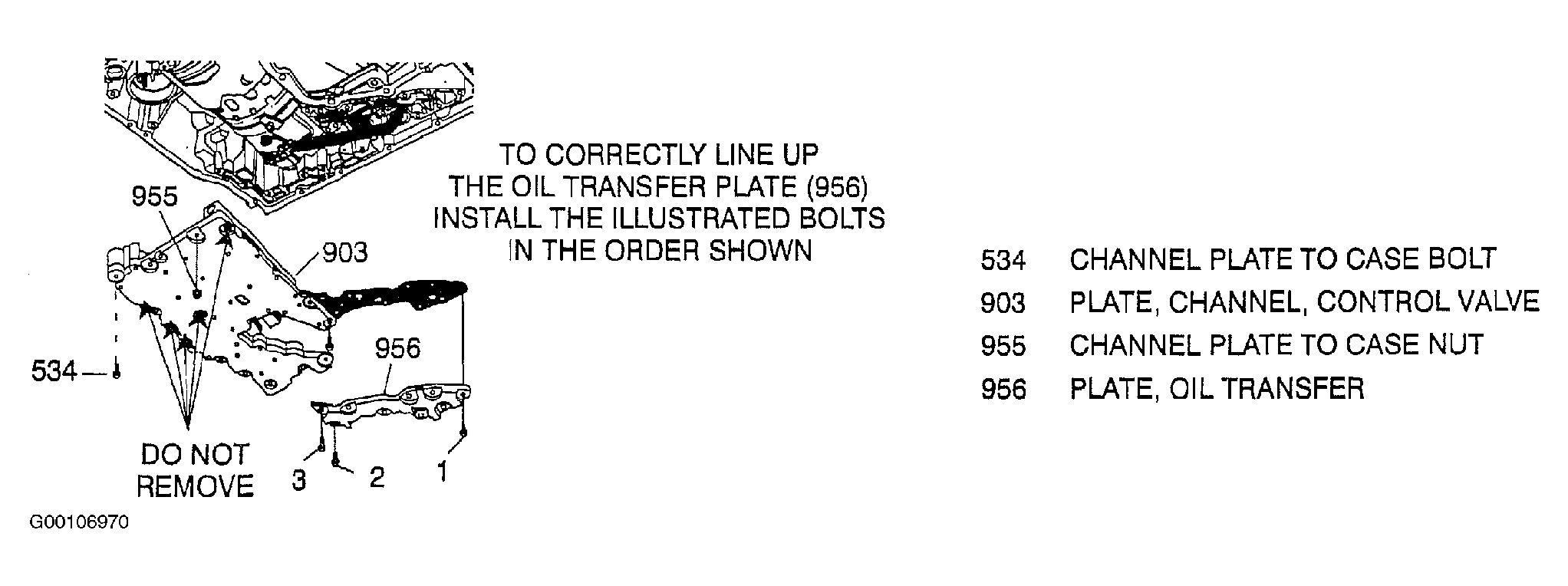

- Place oil transfer plate over open gasket area. Hand start bolts to hold plate in place. See Figure .
- Install two nuts on forward support studs. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .

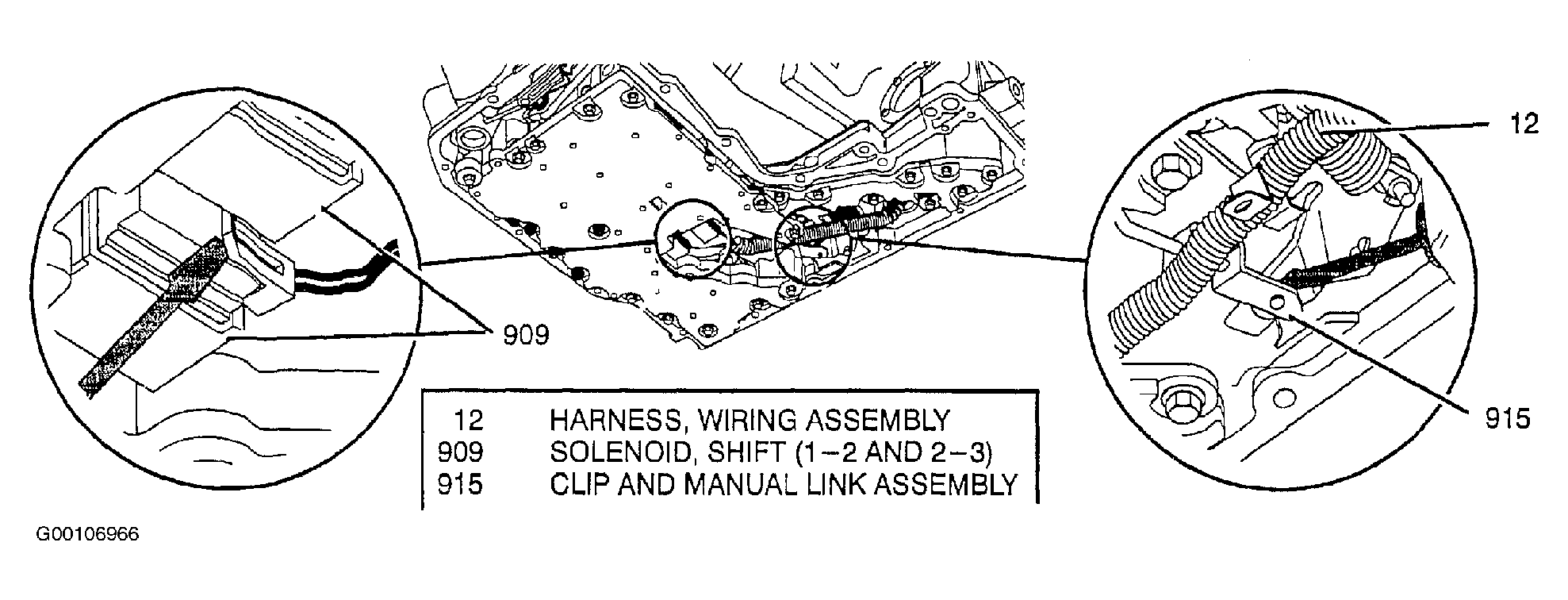

- Connect manual valve (915) to detent lever. Route harness over spacer plate rib and detent lever and snap into retaining clips on lower controls assembly. See Figure .
- Install wiring harness to shift solenoids "A" (909), "B" (909) and transaxle pressure sensor (936).
- Install scavenger screens, lip seals, bottom pan, and gasket. See SCAVENGER SCREENS & LIP SEALS .
- Lower vehicle.
- Add Dexron(R) IIE transmission fluid as required. See LUBRICATION .
- Reset transaxle oil life indicator if a complete fluid change was necessary. See RESETTING TRANSAXLE OIL LIFE INDICATOR under LUBRICATION.
