Transaxle Range Control Cable Adjustment

  1. Use a flat head screwdriver to pry lock button on range control cable to UNLOCKED position. See Fig 1 .
  2. Place transaxle range control in Neutral (N).
  3. Select Neutral (N) position at lever on transaxle manual shaft.
  4. Depress lock button on range control cable into LOCKED position.

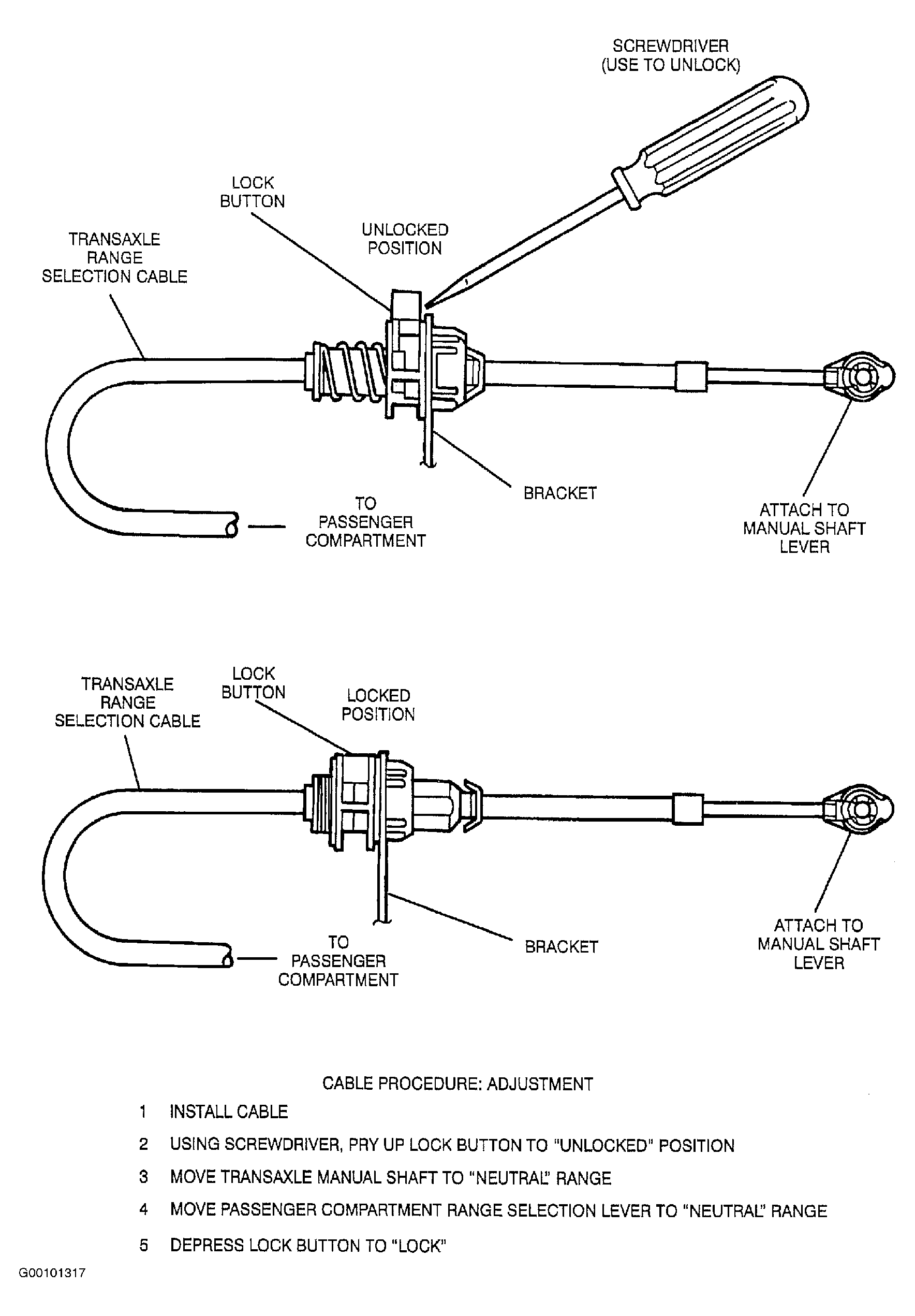

Fig 1: Adjusting Transaxle Range Control Cable
G00101317Courtesy of GENERAL MOTORS CORP.
