System Specifications

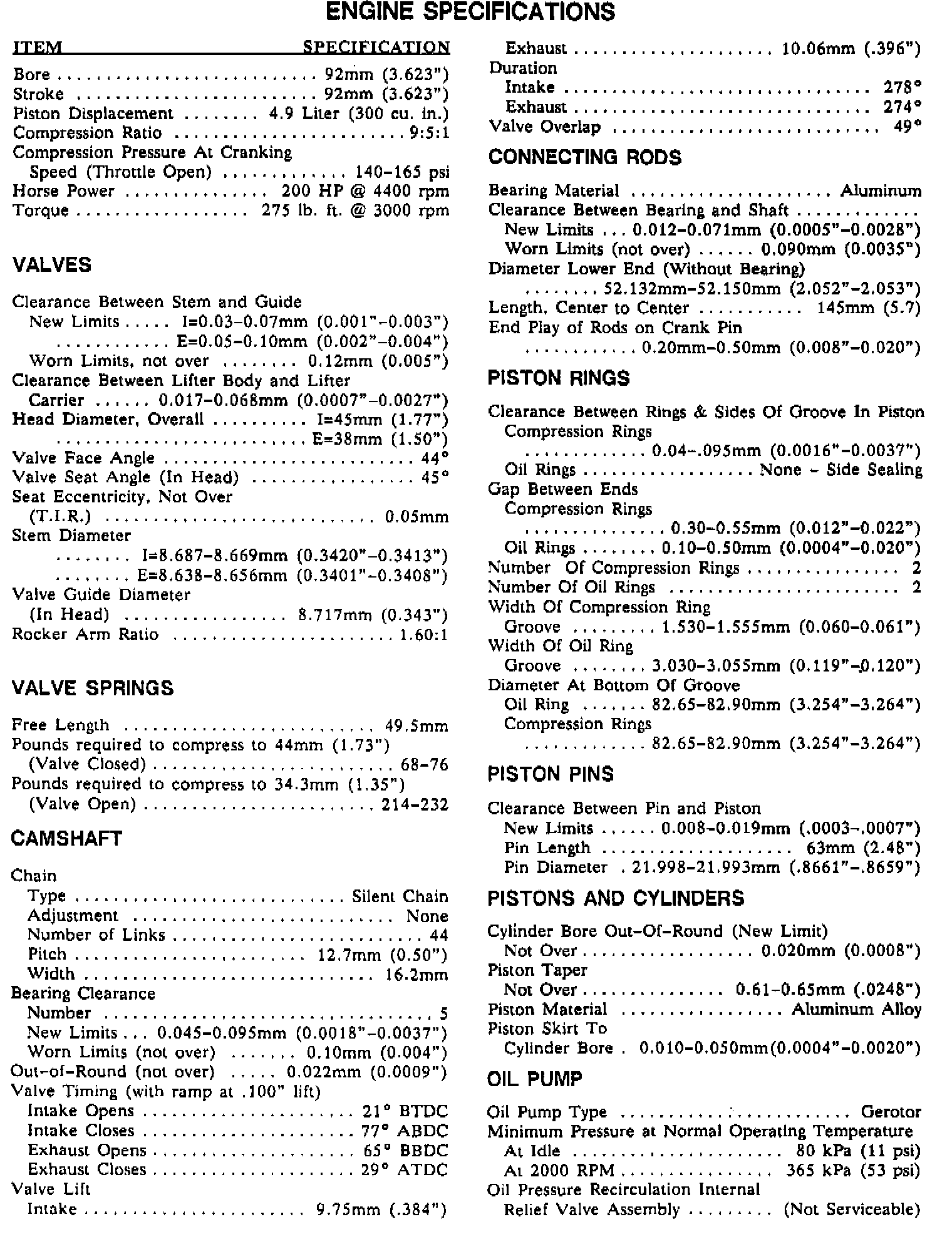

Engine Specifications:




Engine Specifications (continued):

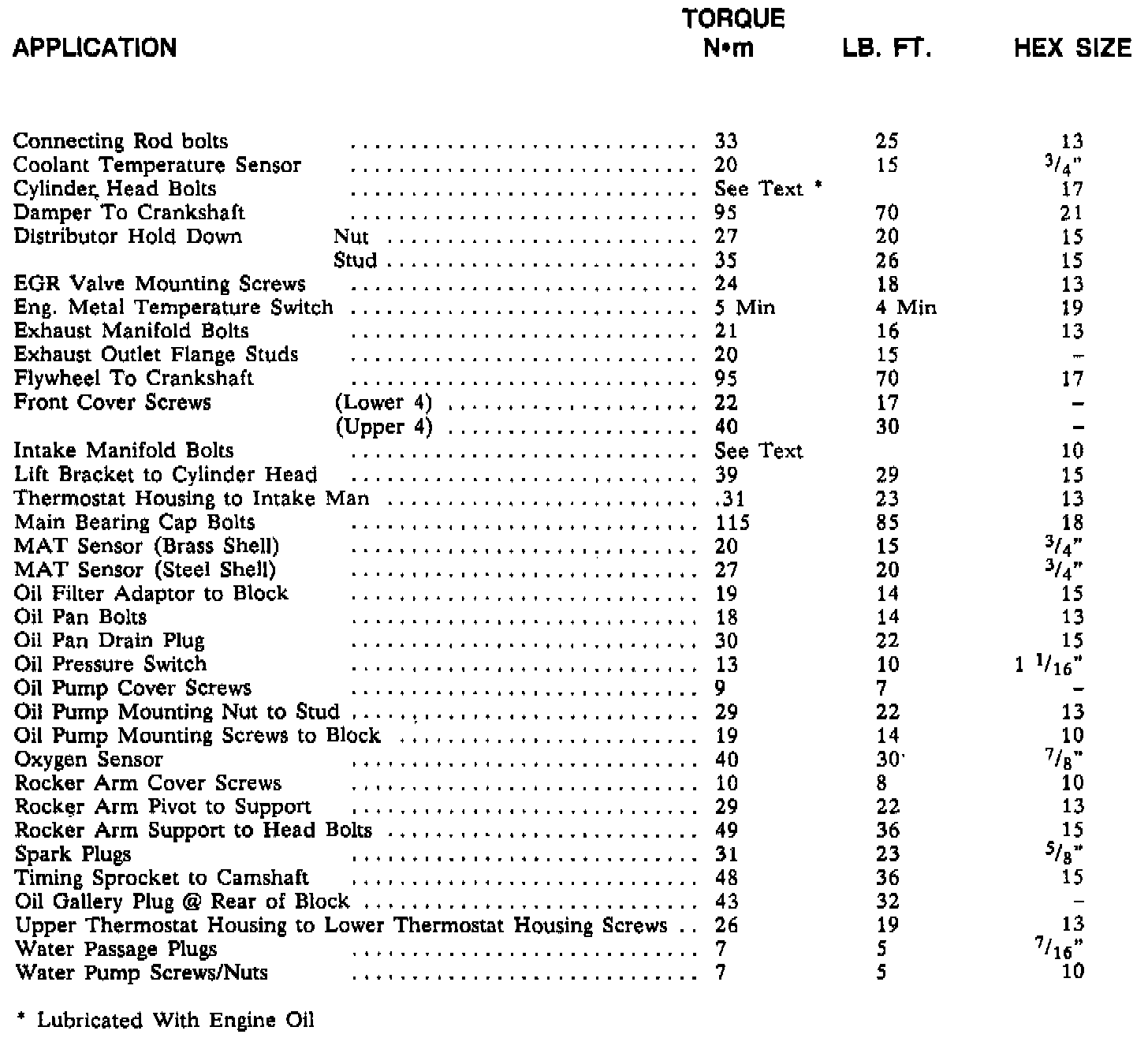

Torque Specifications:






Cylinder Head Sequence:






Intake Manifold Sequence:
