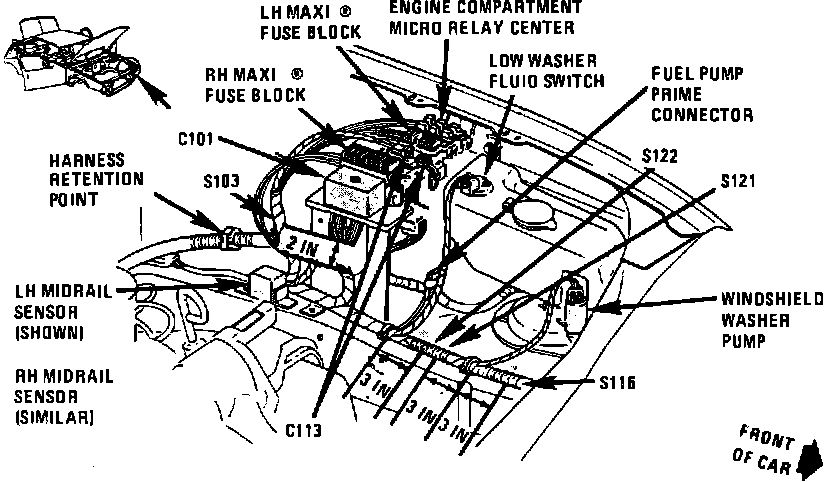

Windshield Washer Pump

LH Front Of Engine Compartment:




LH Side Of Engine Compartment, In Washer Fluid Reservoir

Applicable to: 1992 Eldorado/Seville
