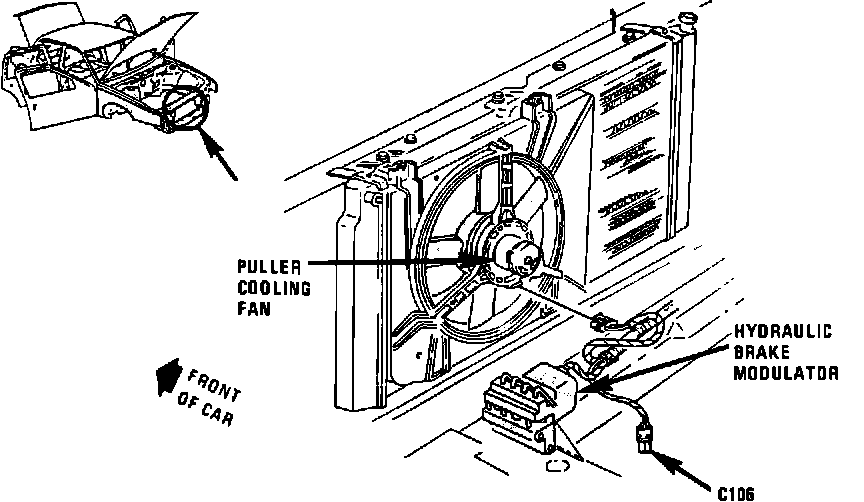

Hydraulic Modulator Assembly

Front Of Engine Compartment.:




Lower Front Of Engine Compartment, Behind Puller Fan

Applicable to: 1992 Eldorado/Seville
