Output Shaft: Notes

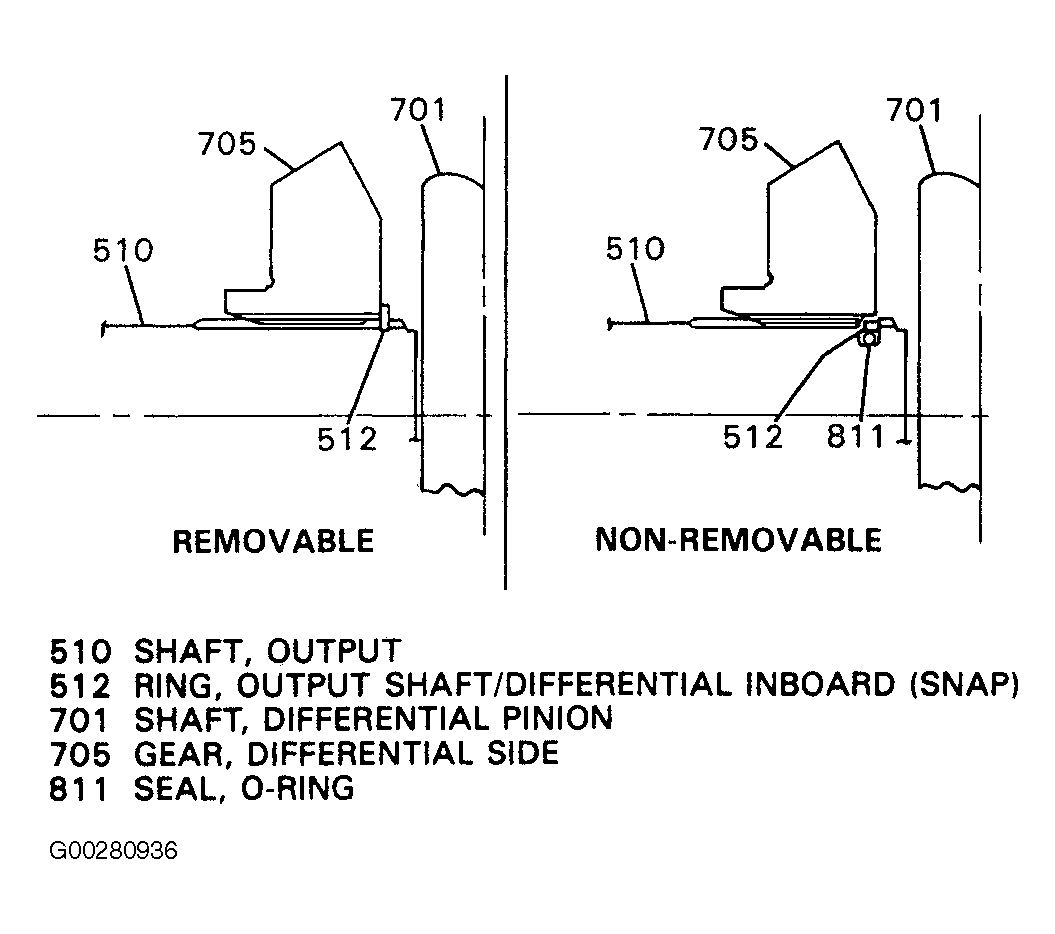

NOTE: Determine if output shaft ring is removable type. See Figure . The full width of removable snap ring can be seen and non-removable type will be locked into a step in side gear and hard to see.
