Diagnostic Testing

For diagnostic procedures, see Fig 1.

Fig 1: Test C: Hydraulic System Performance Check Flow Chart

Courtesy of GENERAL MOTORS CORP.

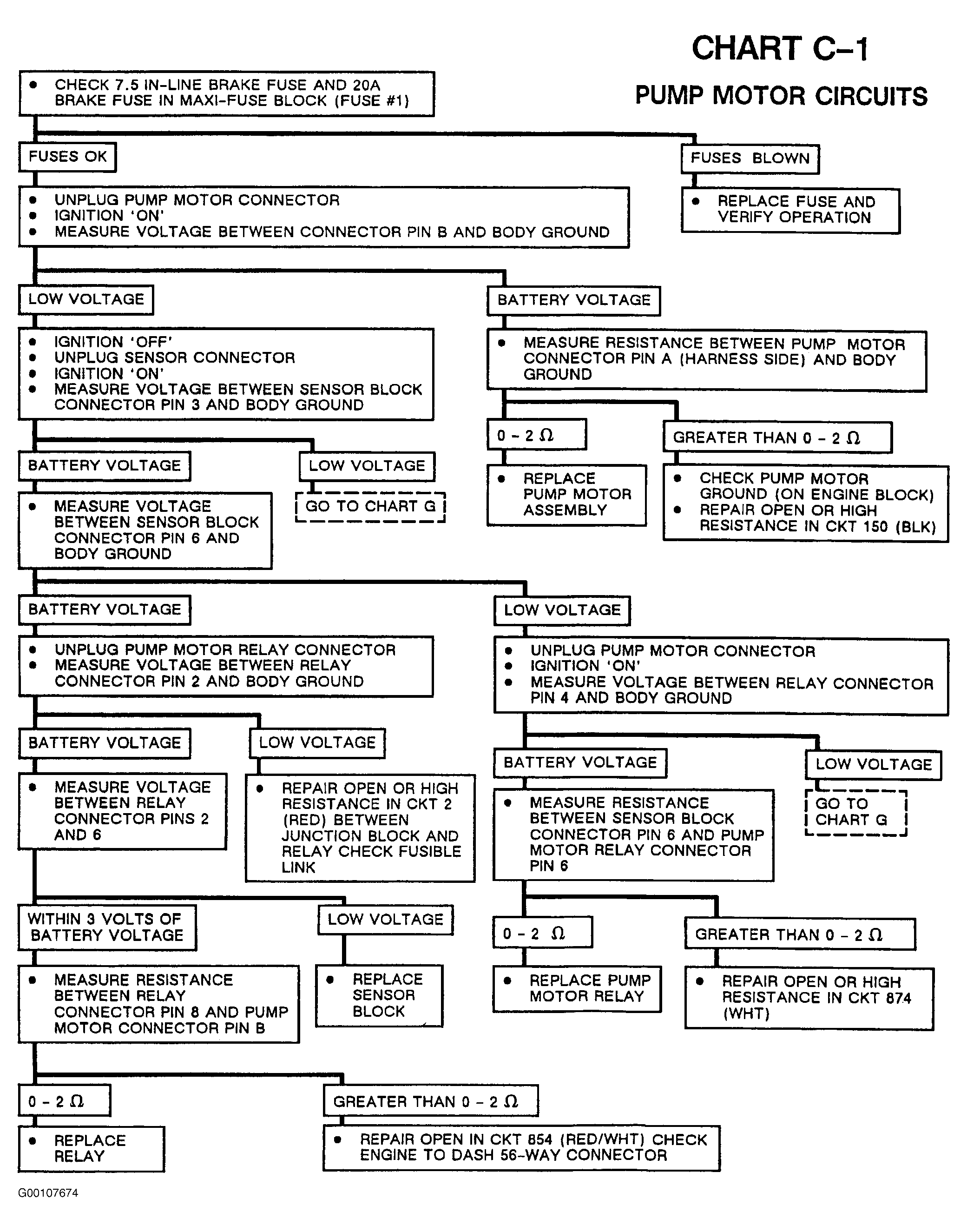

Fig 2: Chart C-1: Pump Motor Circuits Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

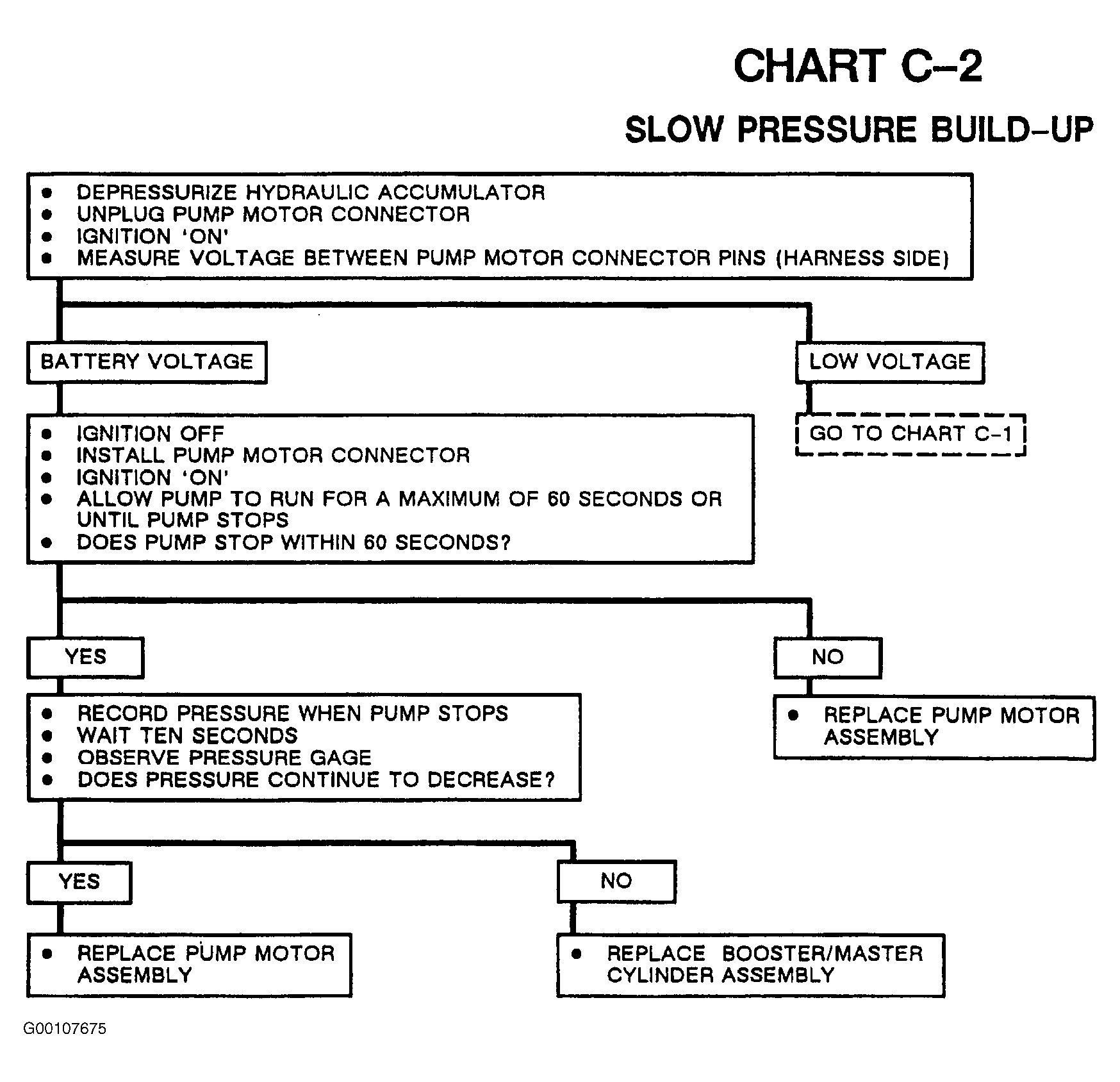

Fig 3: Chart C-2: Slow Pressure Build-Up Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

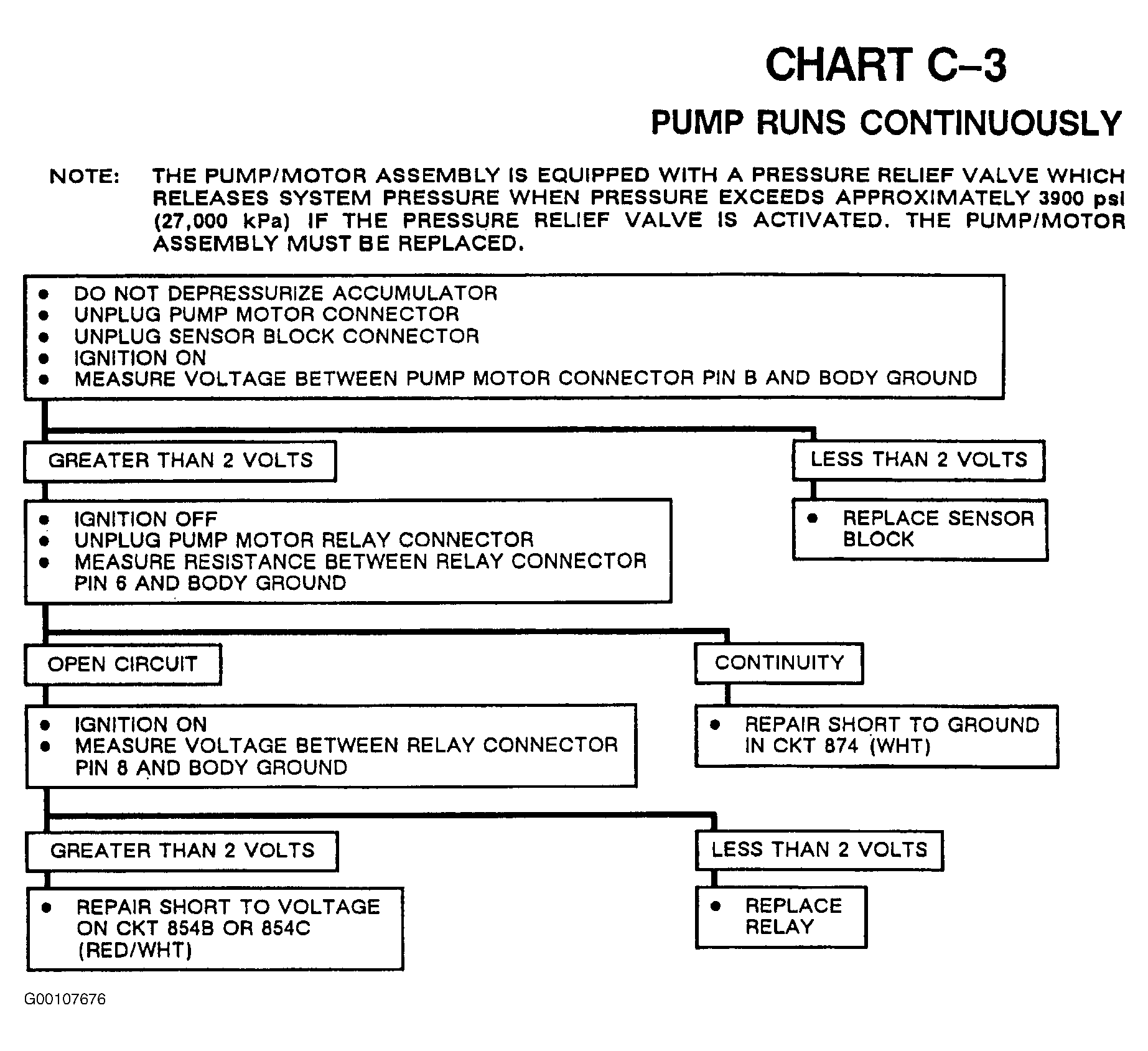

Fig 4: Chart C-3: Pump Runs Continuously Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.

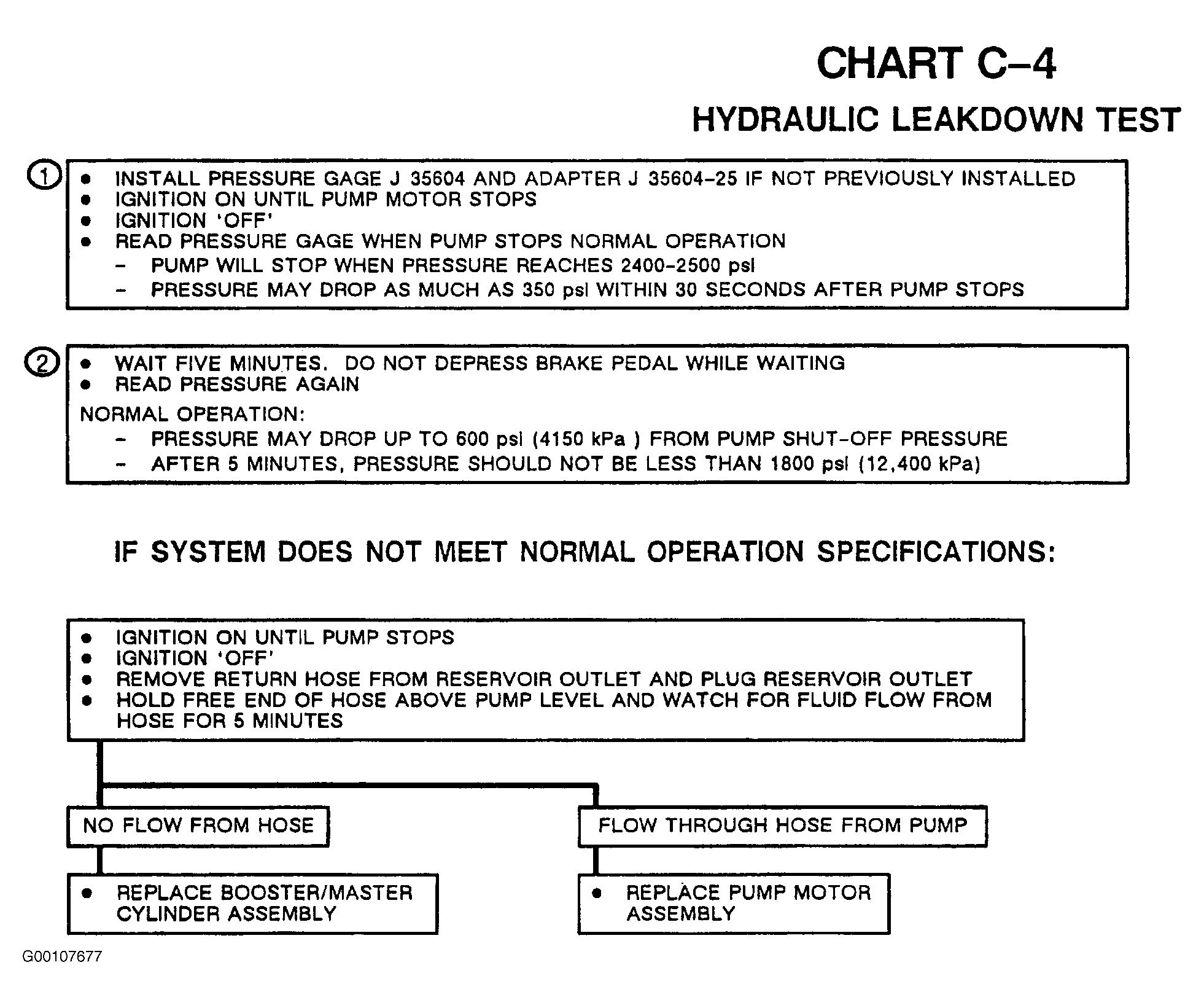

Fig 5: Chart C-4: Hydraulic Leakdown Test Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
