CCDIC Problem (Chart C-2)

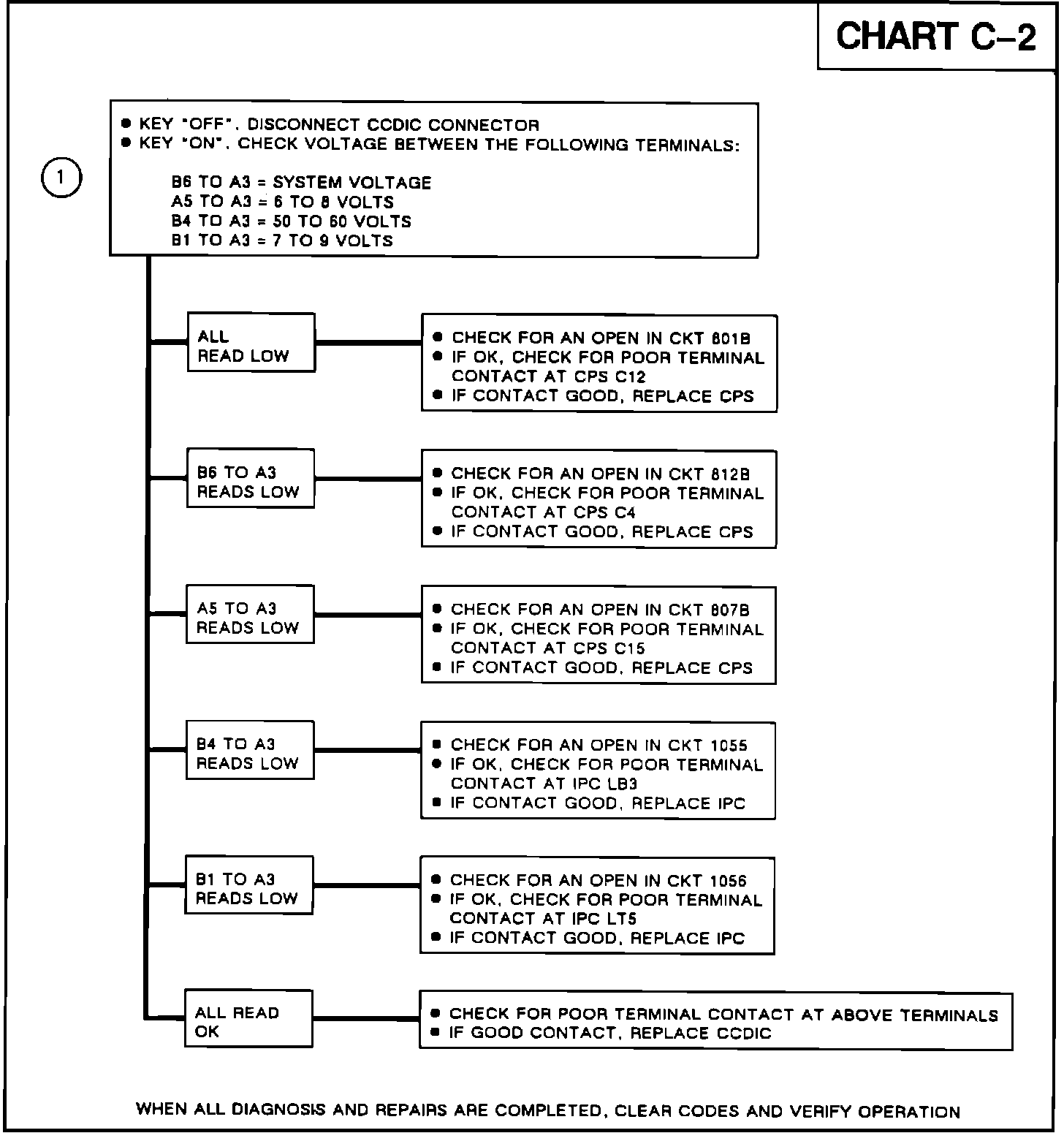

Chart C-2:

CCDIC Display Wiring Diagram:

DESCRIPTION:

This chart is used because the CCDIC display is completely blank. Causes for this problem could be a loss of CPS power or ground or loss of the vacuum fluorescent power from the IPC.

NOTES ON FAULT TREE:

1. Disconnecting the CCDIC connector and performing individual circuit checks will determine if the wiring connector (or terminal) or the component is faulty.
