Note On Intermittents

Code is most likely induced by driver shifting from Neutral to Drive while depressing accelerator. Check driver habits to help determine how code was set.

Fig 1: ECM Code EO96 Circuit Diagram

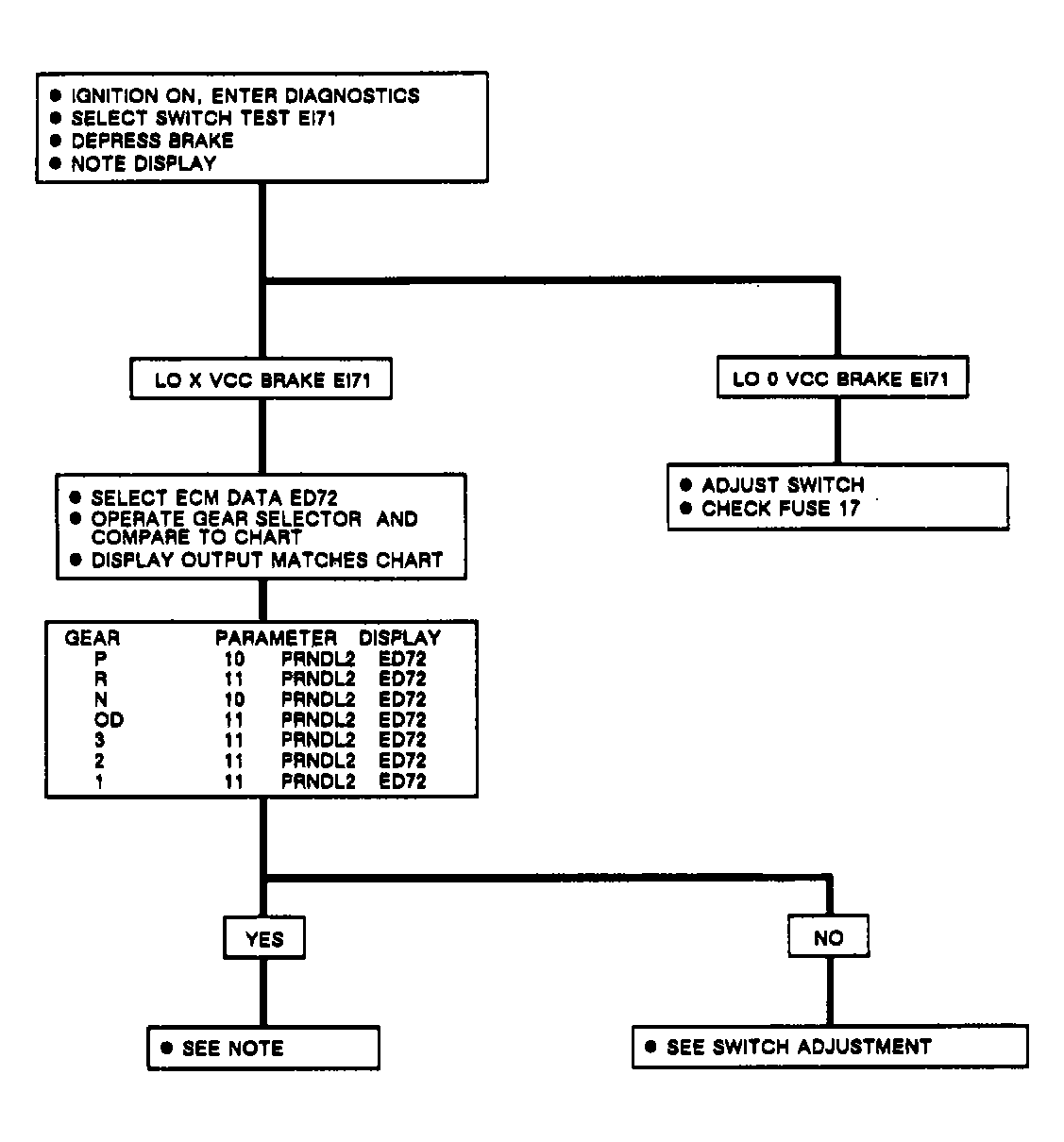

Fig 2: ECM Code EO96 Flow Chart
