Note On Intermittents

Check for binding throttle shaft and throttle blades, weak or distorted throttle spring, binding cruise control or throttle valve cable, or an improperly installed TPS.

Fig 1: ECM Code EO27 Circuit Diagram

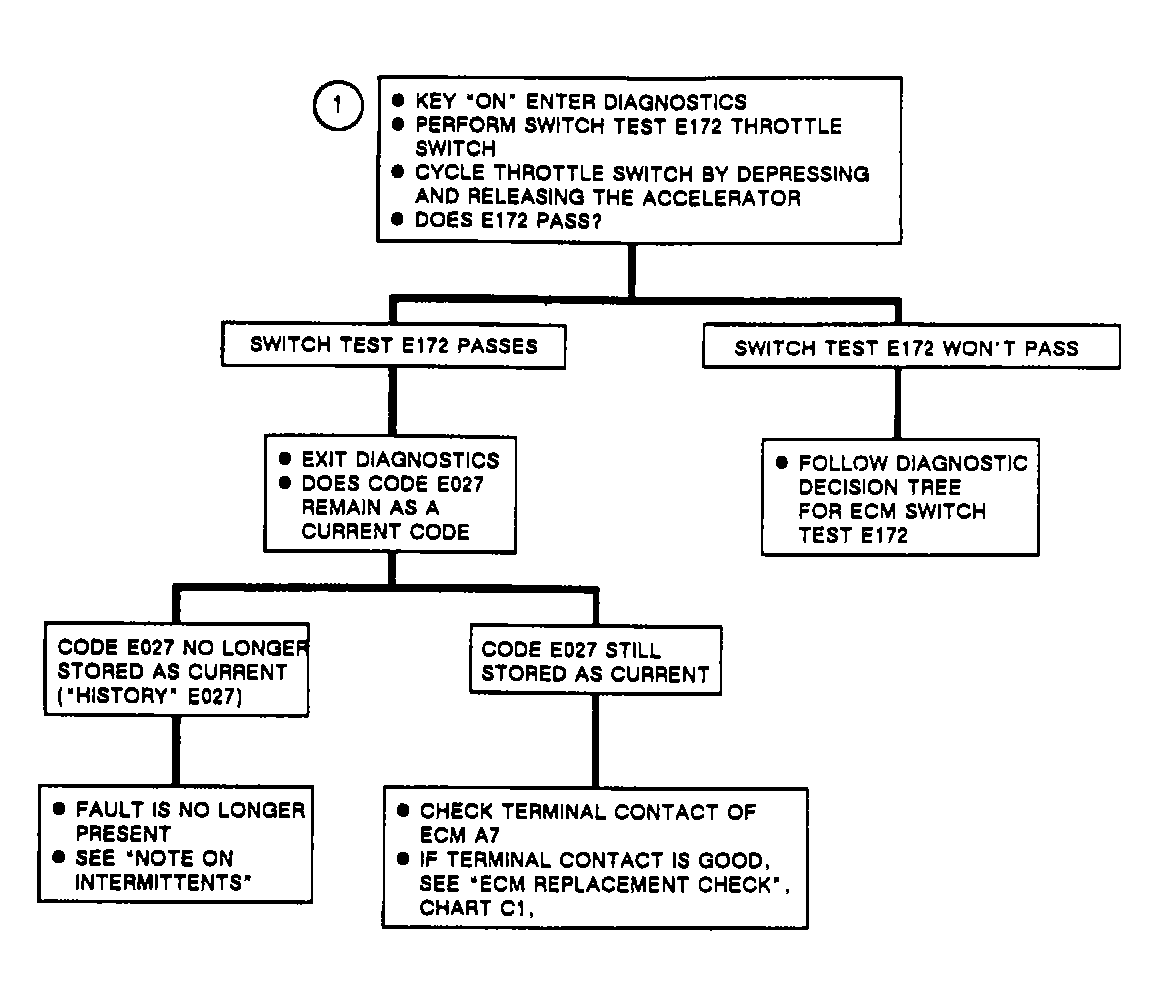

Fig 2: ECM Code EO27 Flow Chart
