Note On Intermittents

If an intermittent condition exists, perform battery and charging system checks to assure proper operation. Also perform a comprehensive visual check of generator wiring and connection.

Fig 1: BCM Code B410 Circuit Diagram

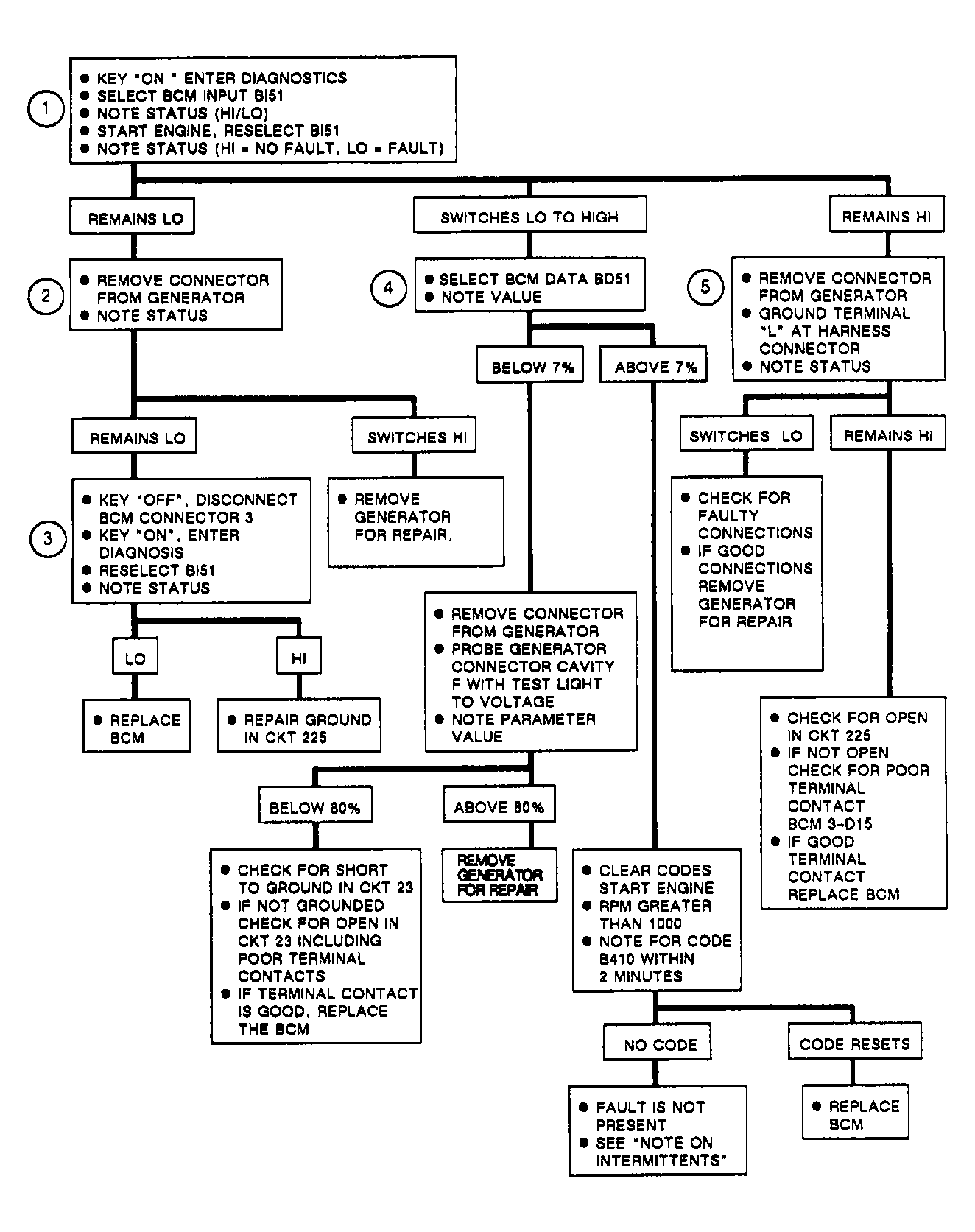

Fig 2: BCM Code B410 Flow Chart
