Test C: Hydraulic System Performance Check

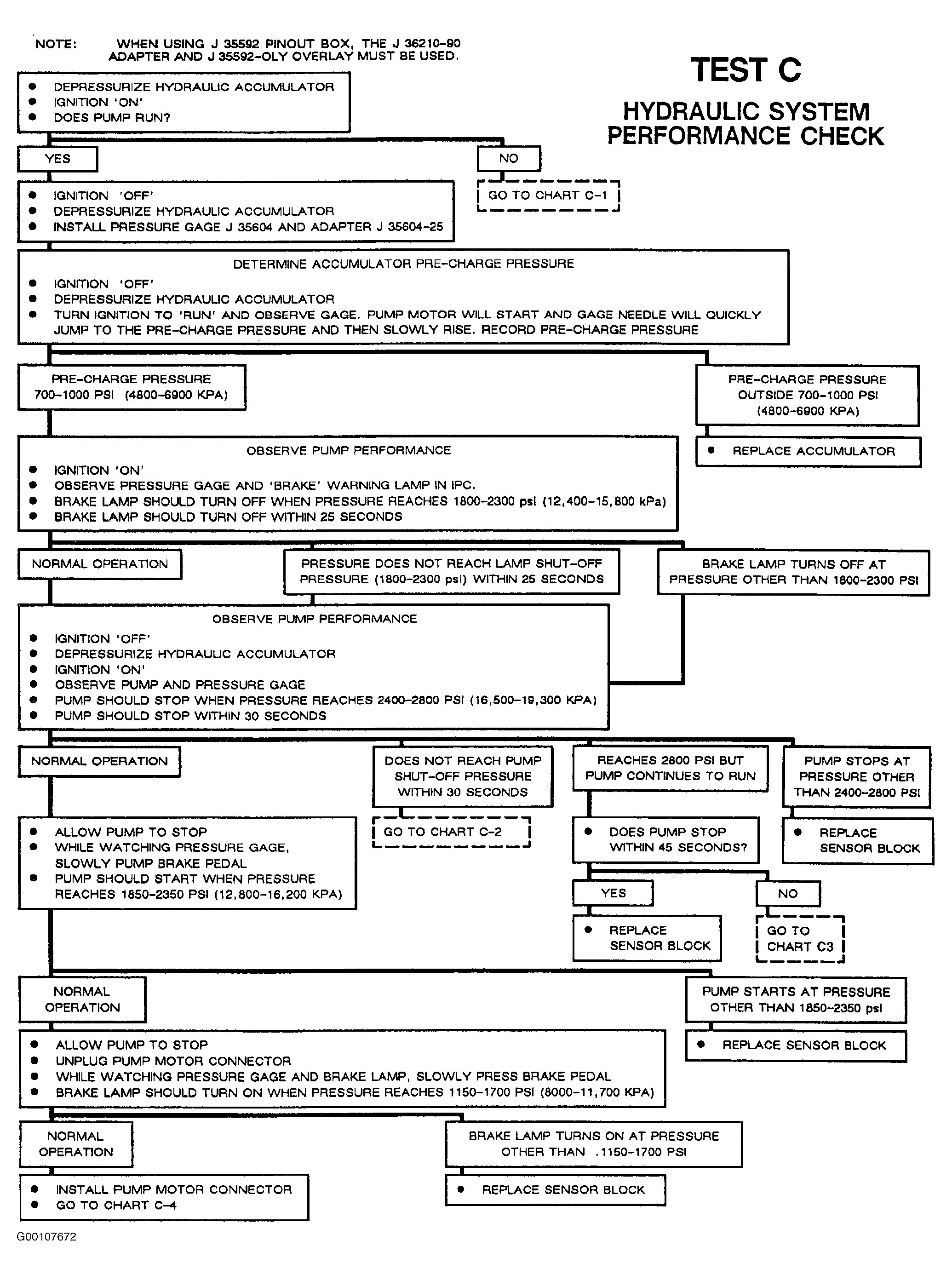

Fig 1: Test C: Hydraulic System Performance Chart
G00107672Courtesy of GENERAL MOTORS CORP.
