Wiring Diagrams

NOTE: For information on exterior light circuits, see WIRING DIAGRAMS article in ELECTRICAL.

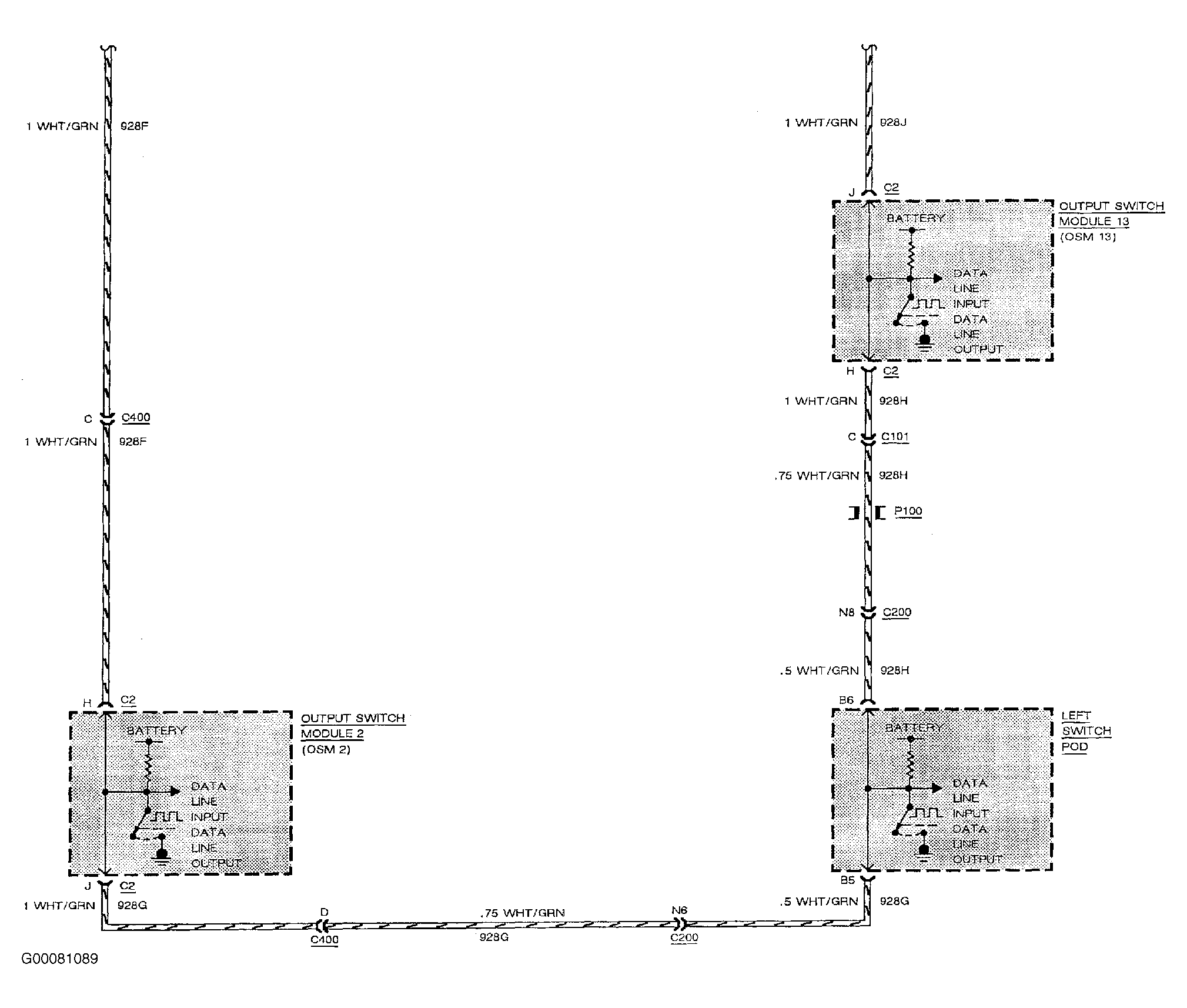

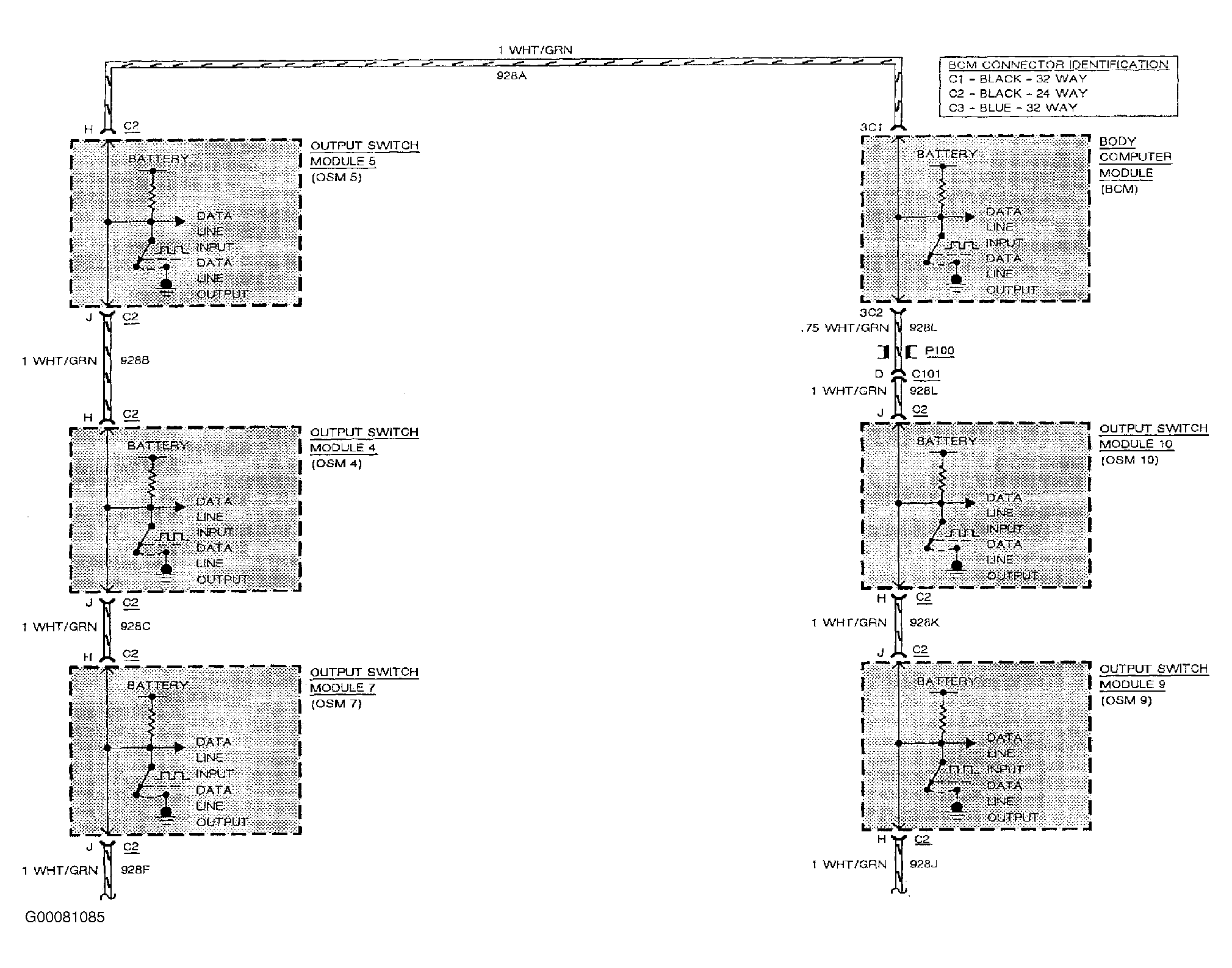

Fig 1: Data Line Circuit (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

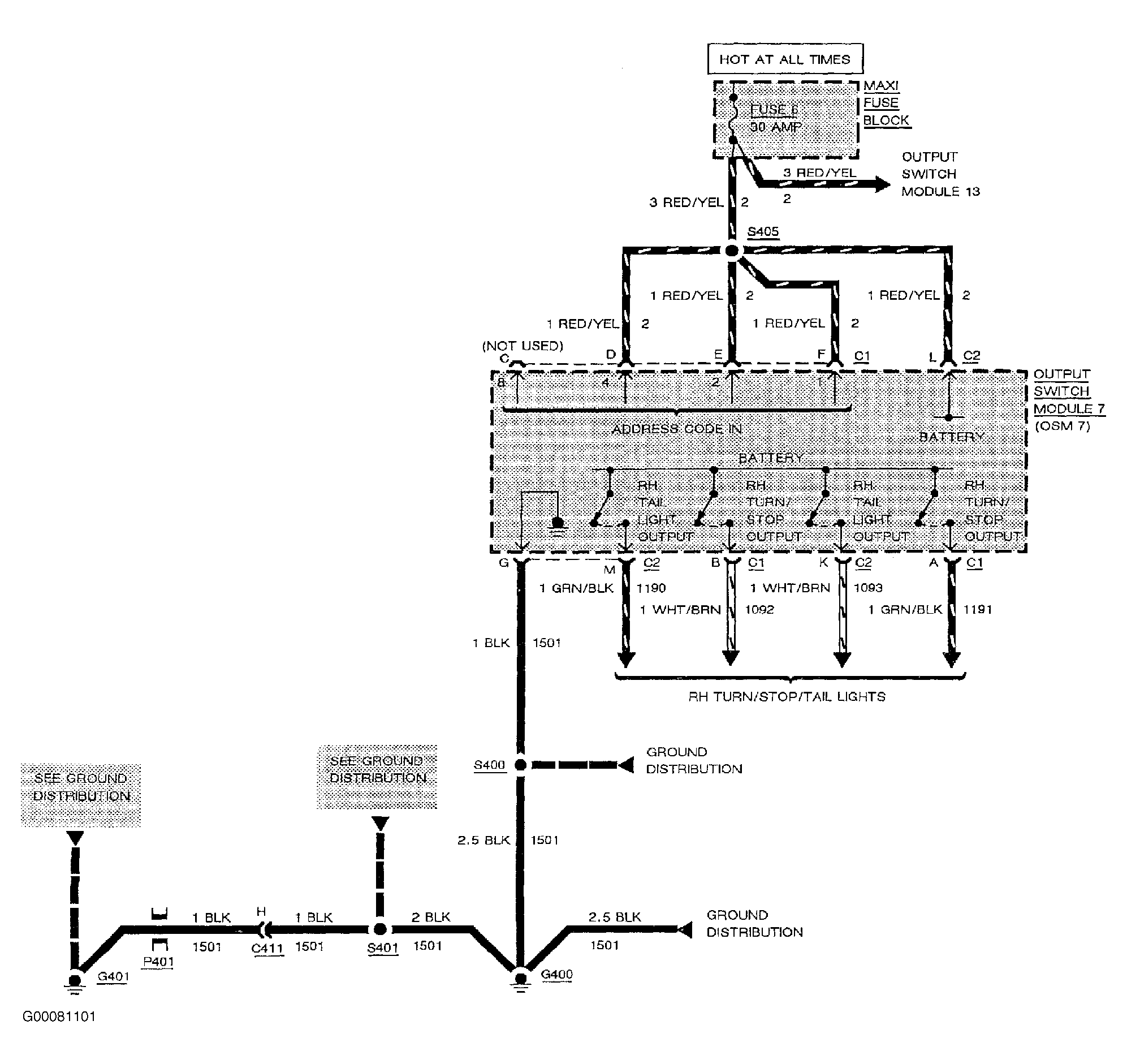

Fig 2: Data Line Circuit (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

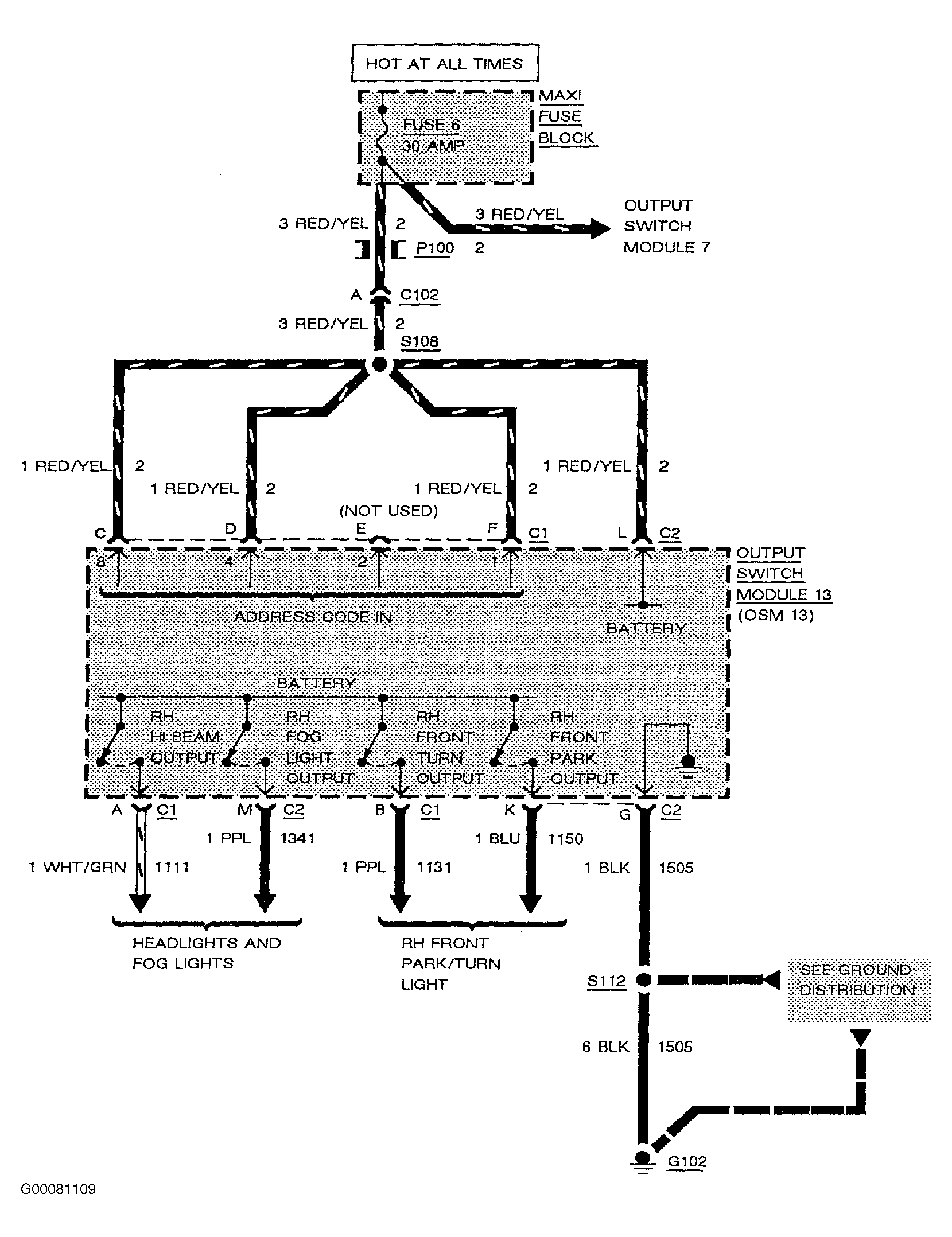

Fig 3: Data Line Circuit (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

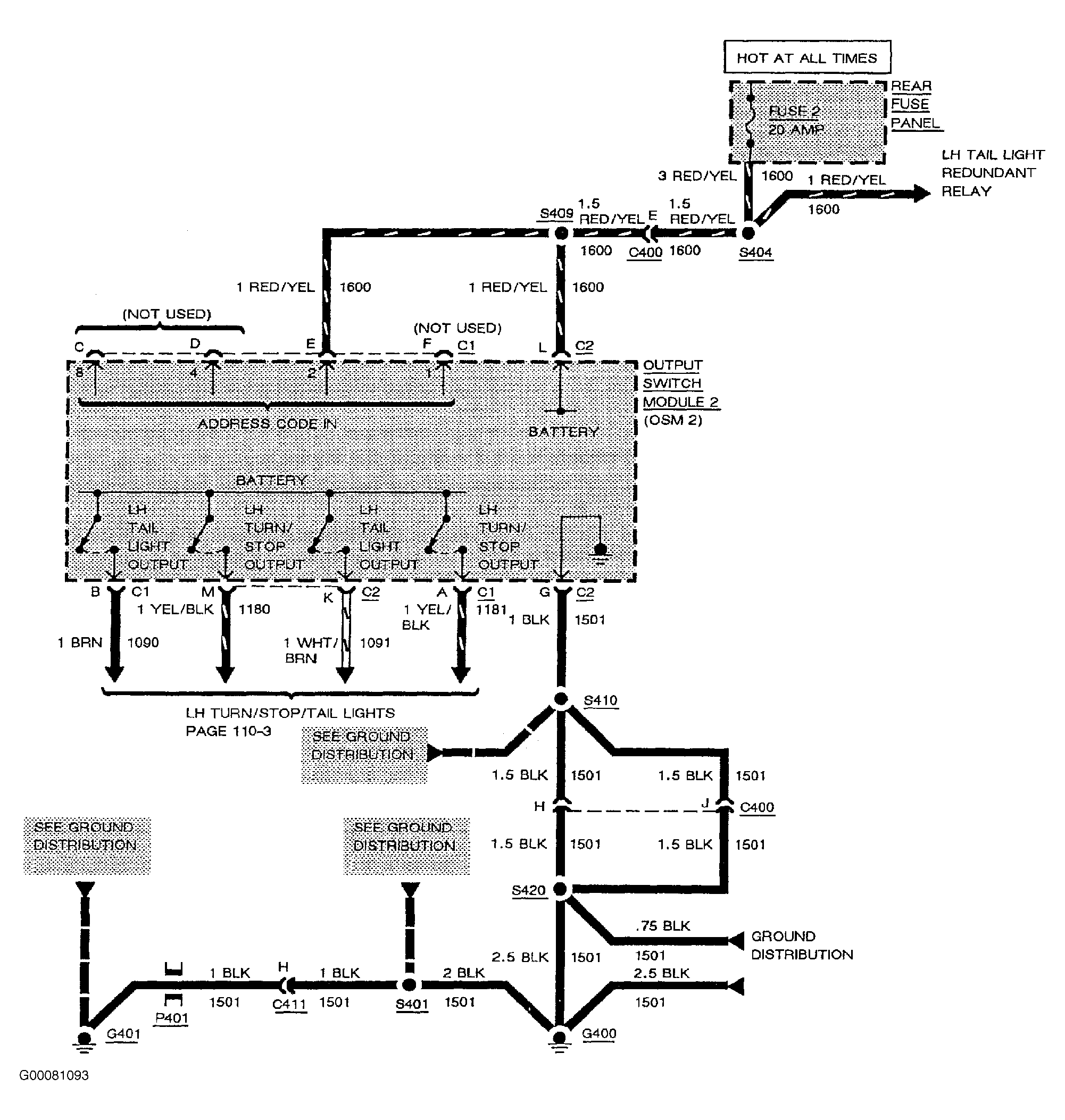

Fig 4: Data Line Circuit (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

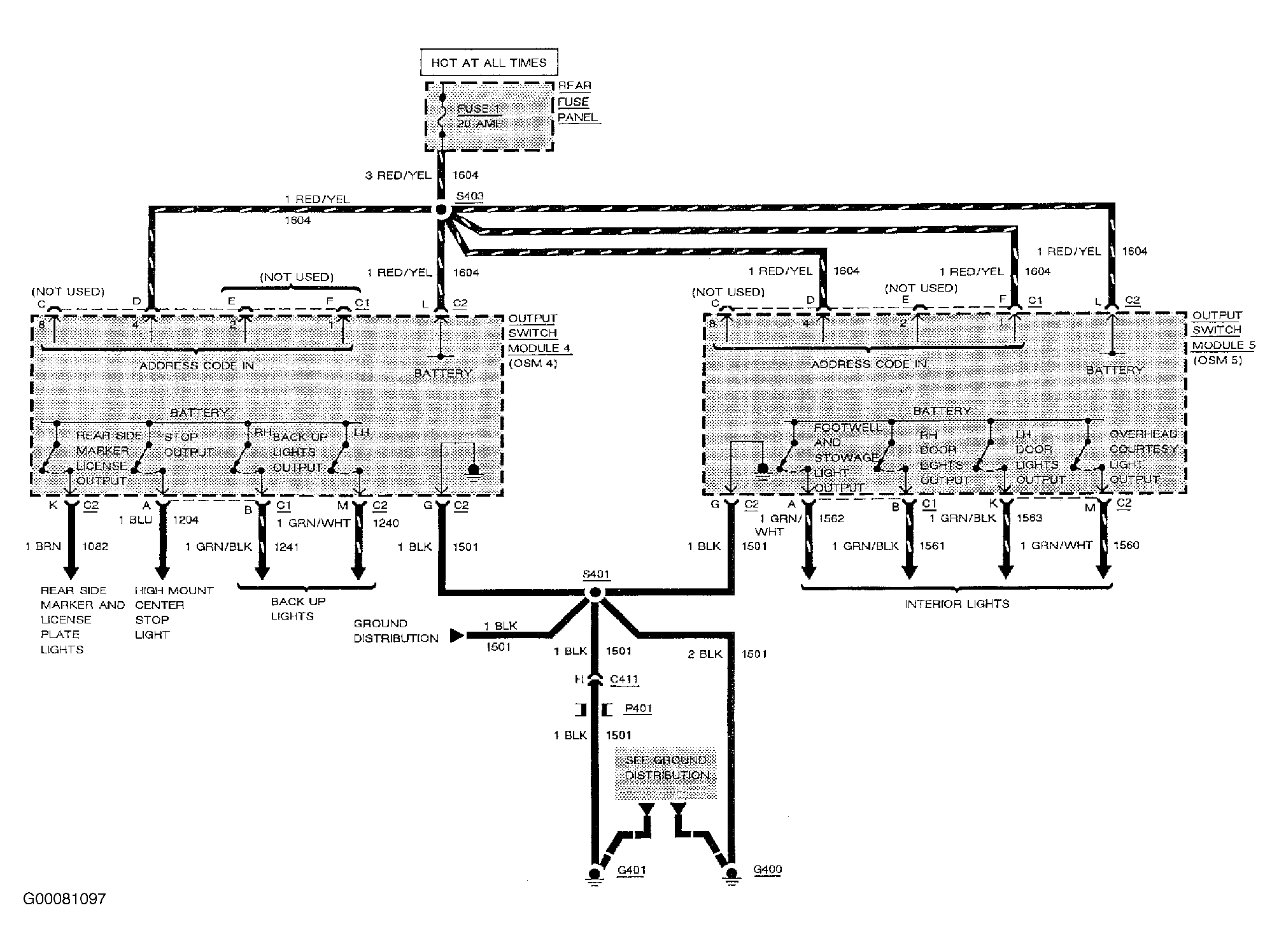

Fig 5: Data Line Circuit (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Data Line Circuit (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Data Line Circuit (7 Of 7)

Courtesy of GENERAL MOTORS CORP.

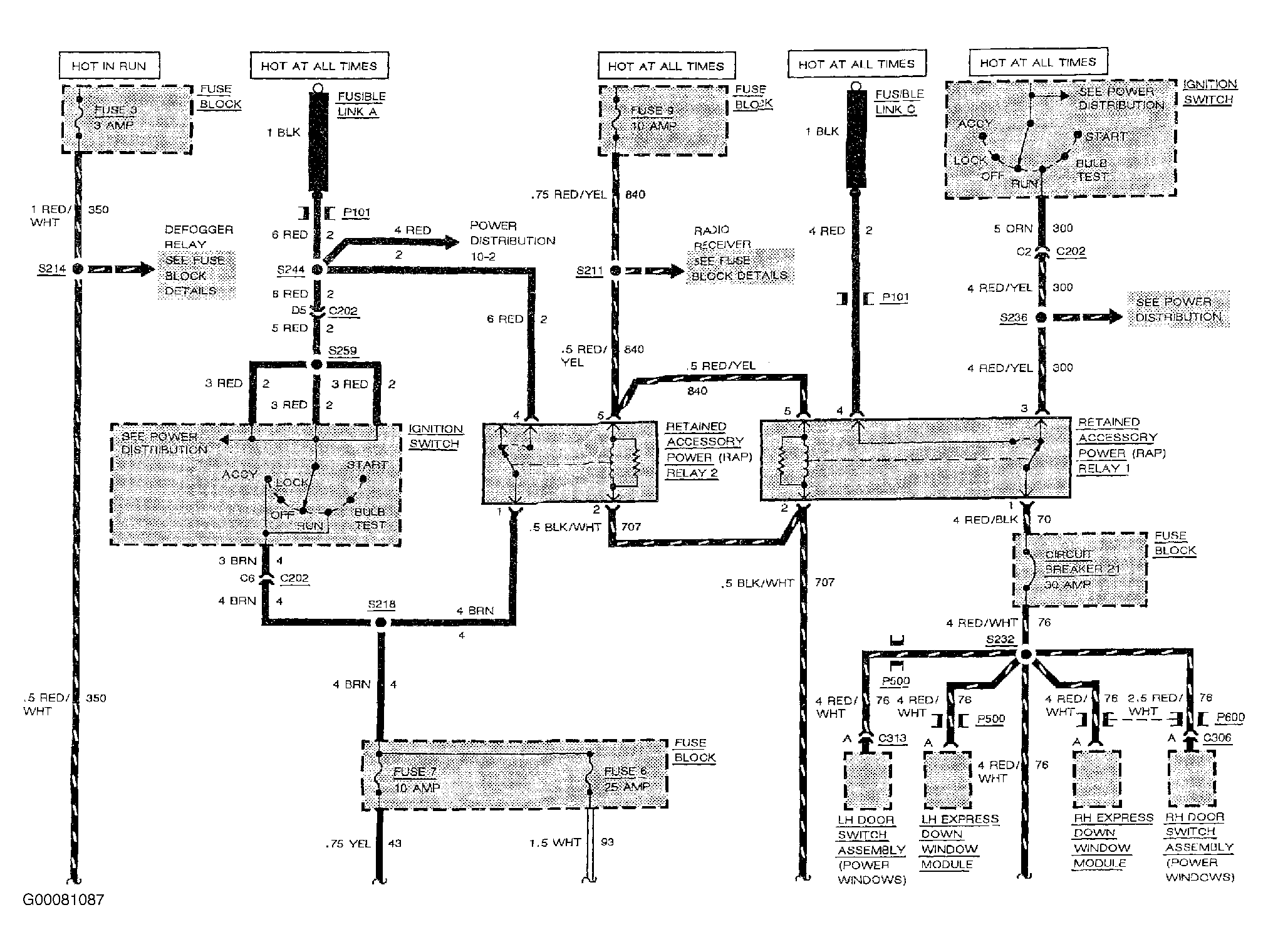

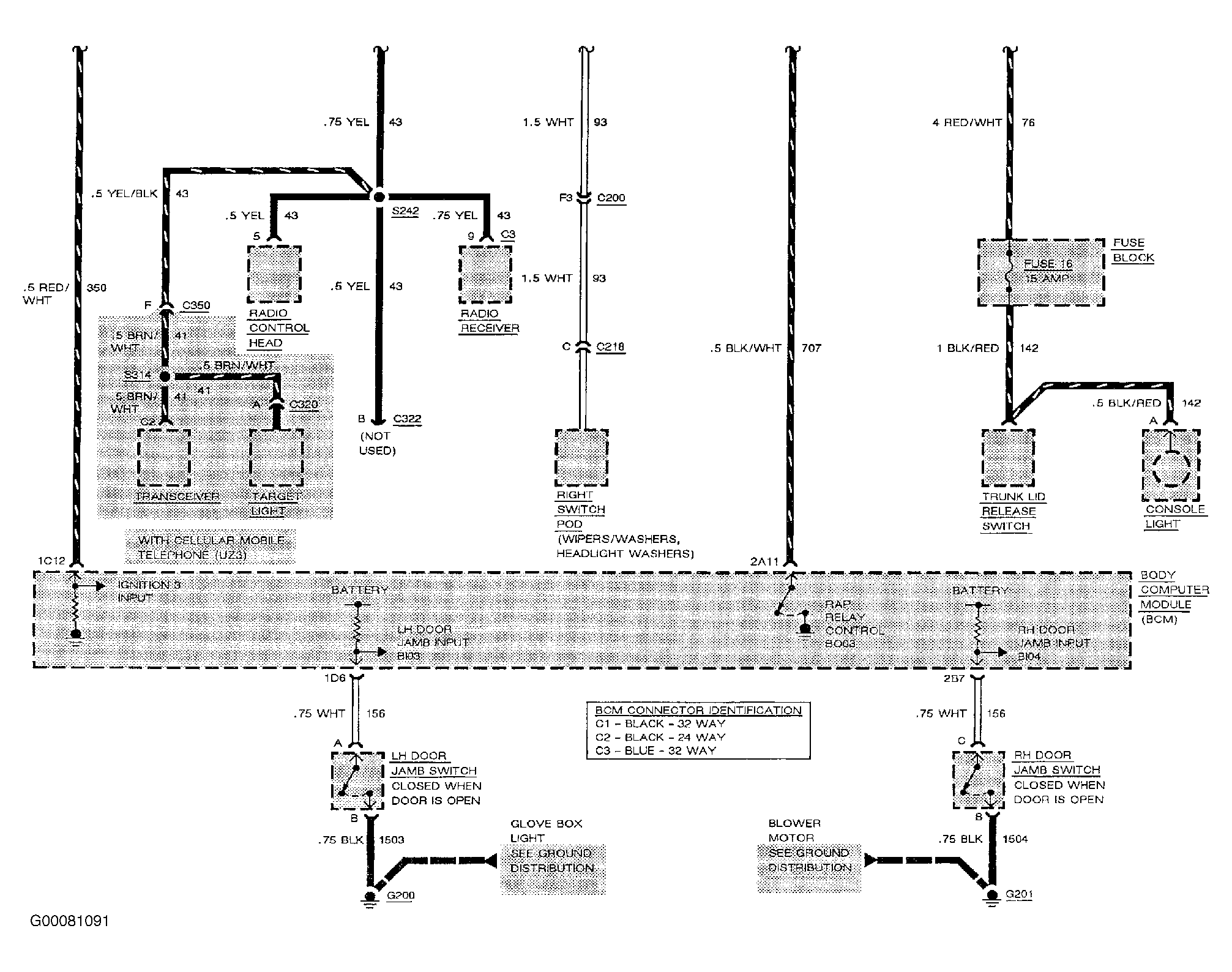

Fig 8: Retained Accessory Power Circuit (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Retained Accessory Power (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

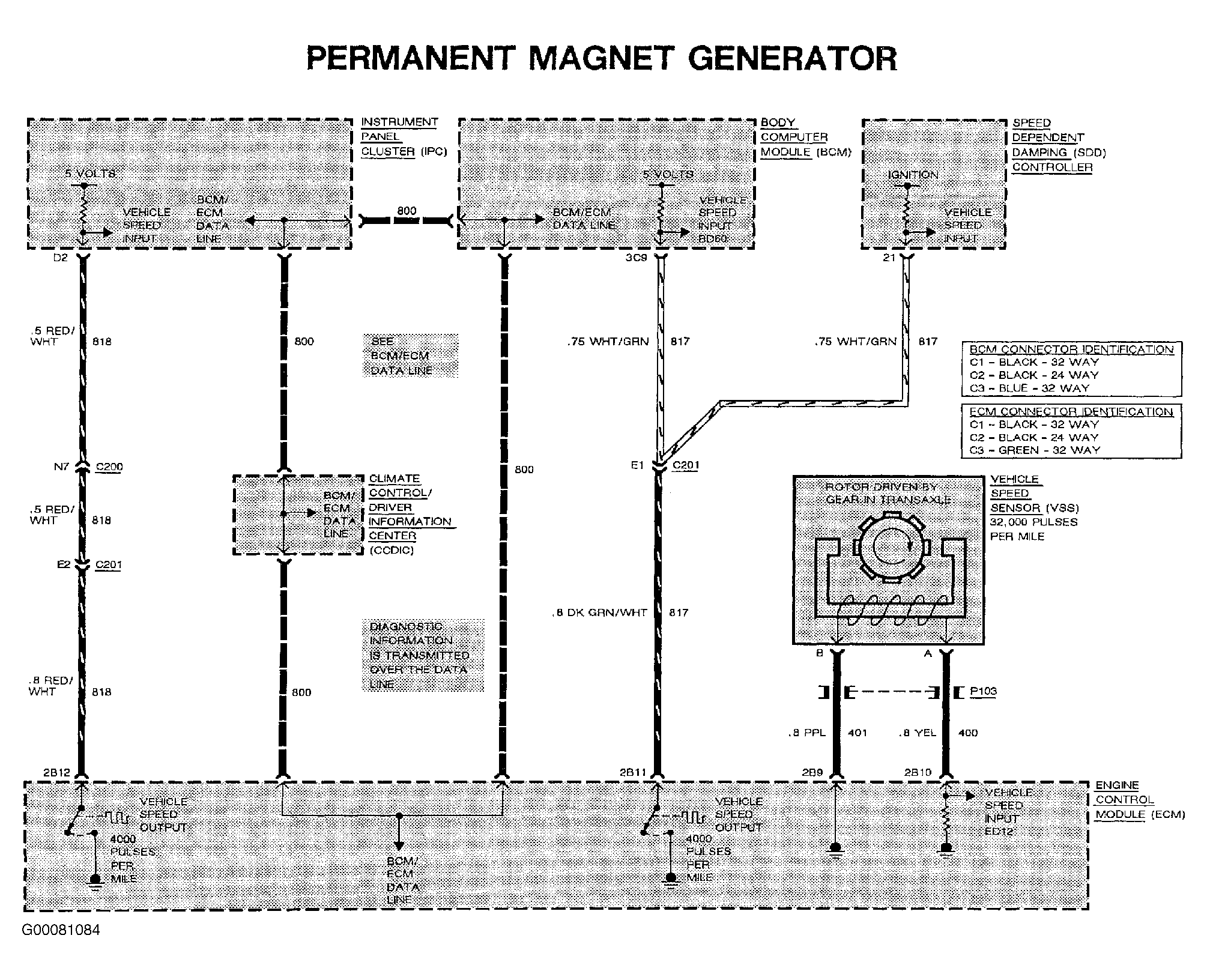

Fig 10: Vehicle Speed Sensor Circuit

Courtesy of GENERAL MOTORS CORP.

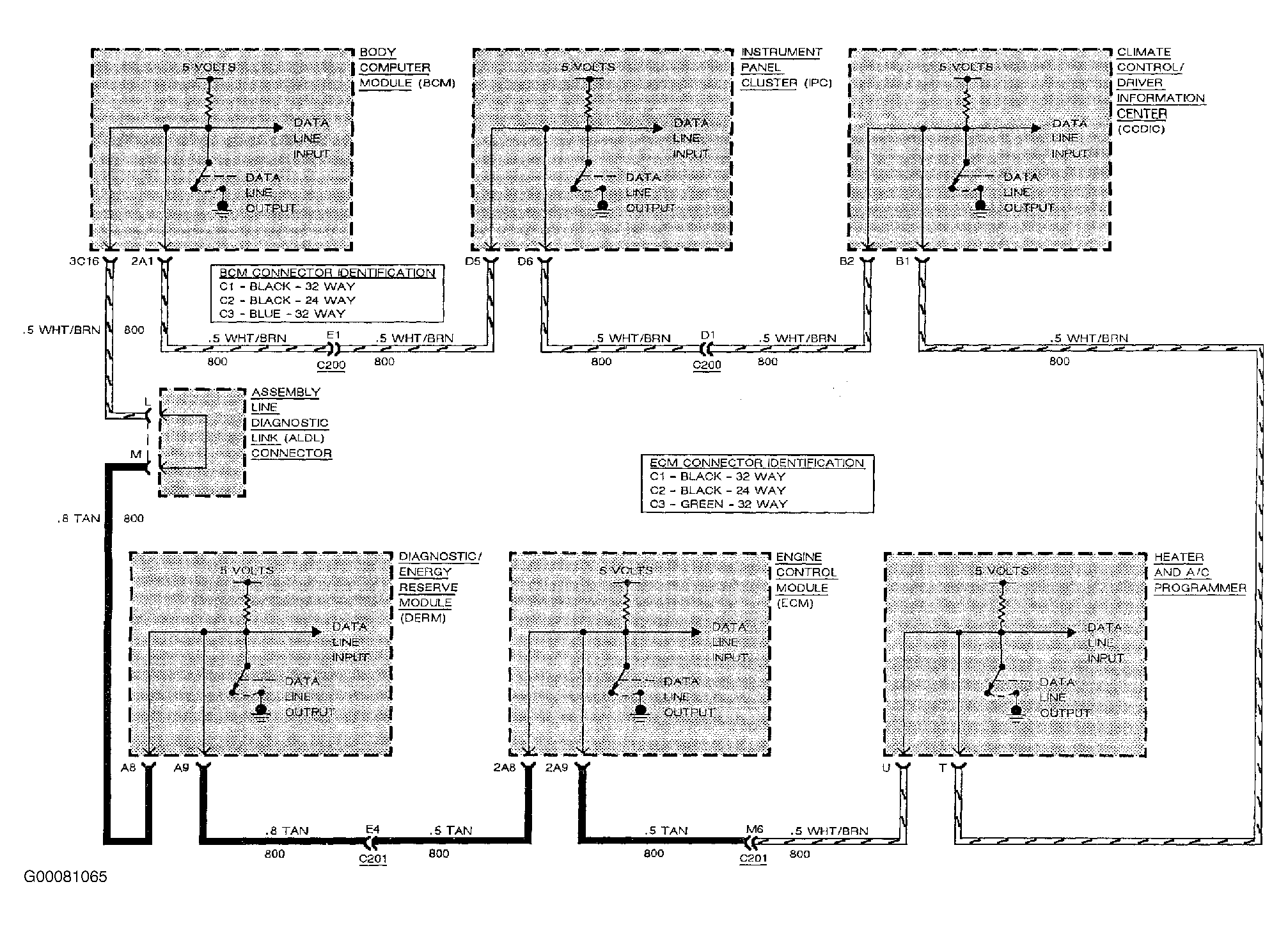

Fig 11: Data Line Circuit

Courtesy of GENERAL MOTORS CORP.

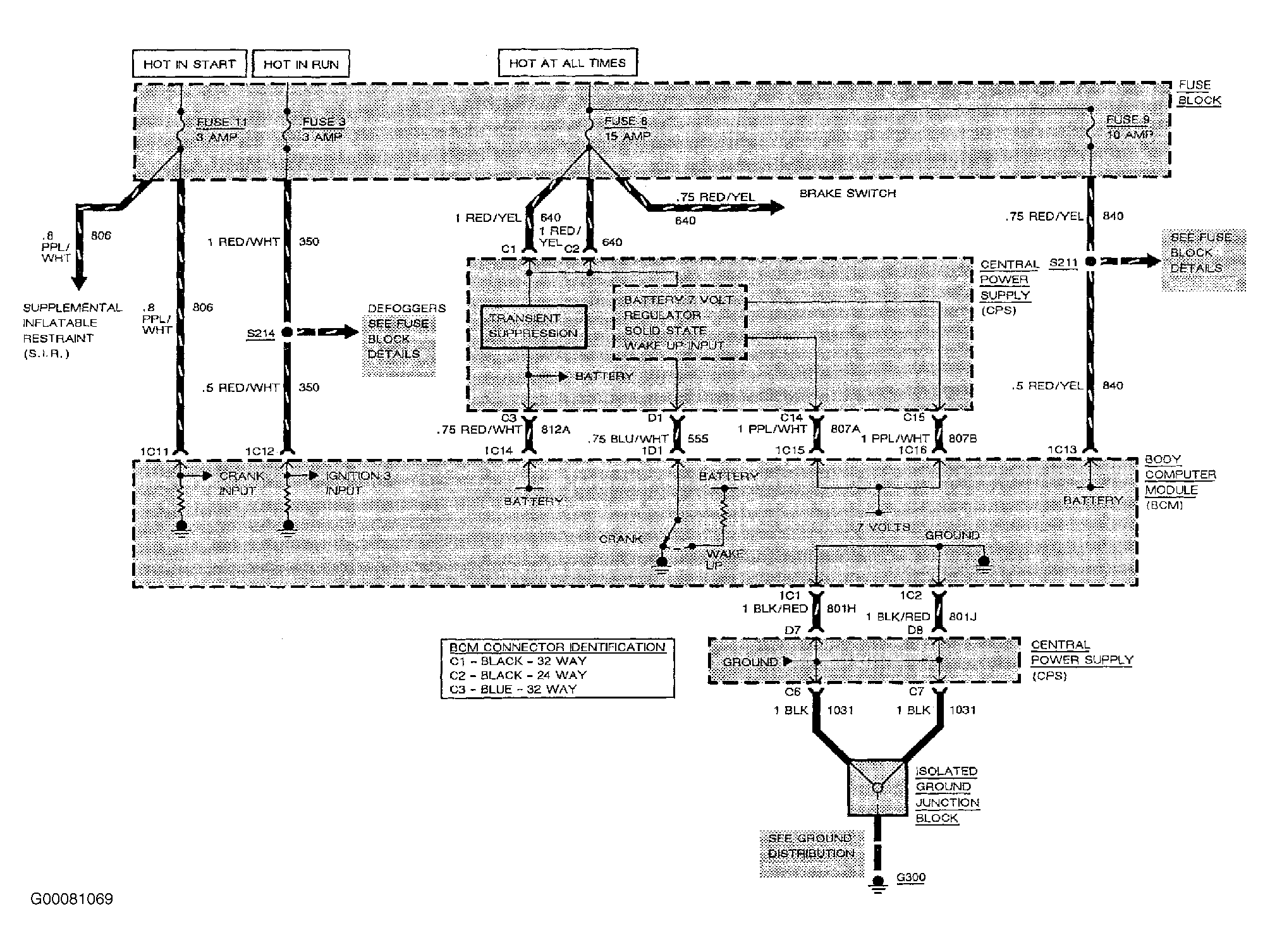

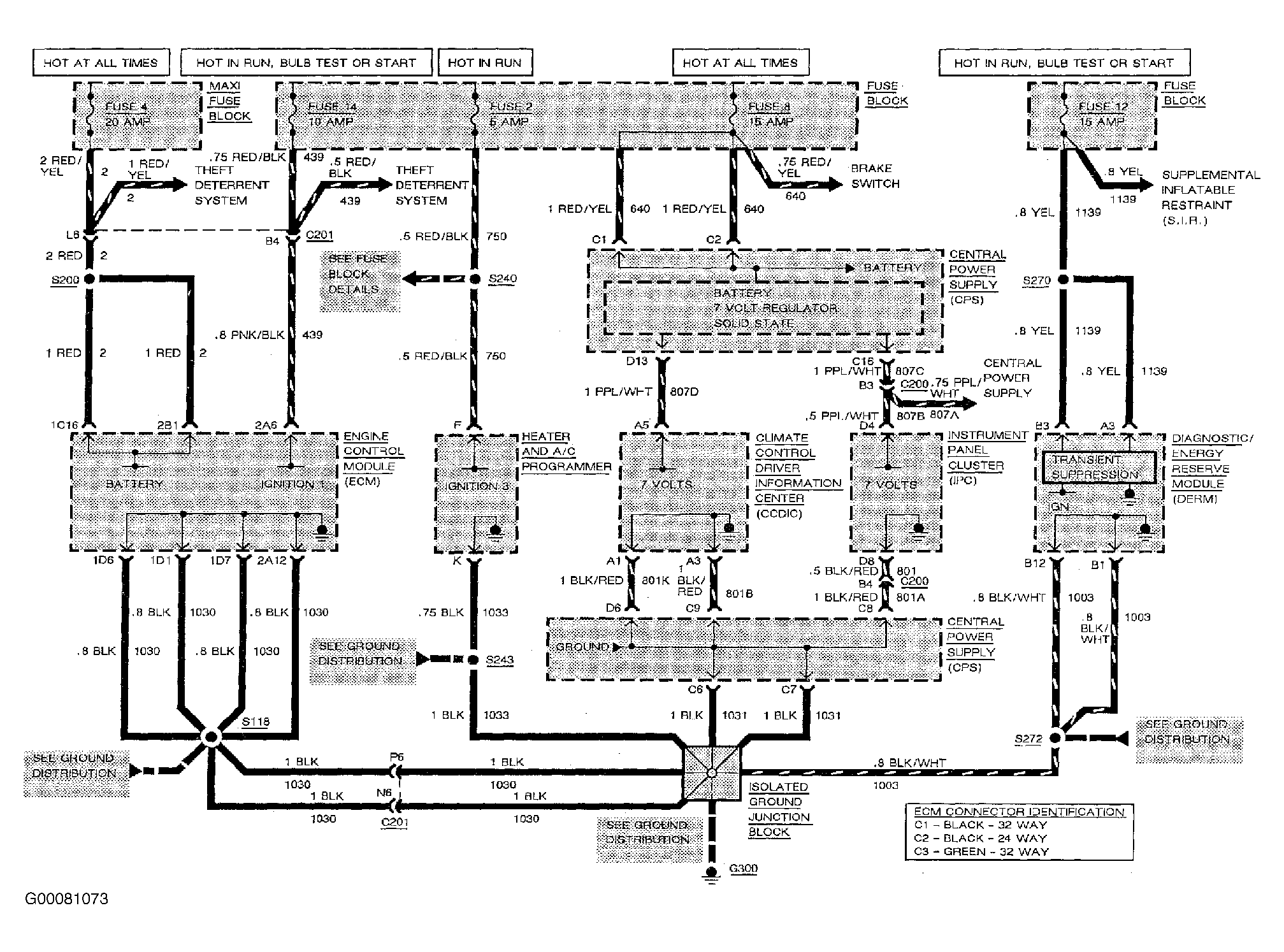

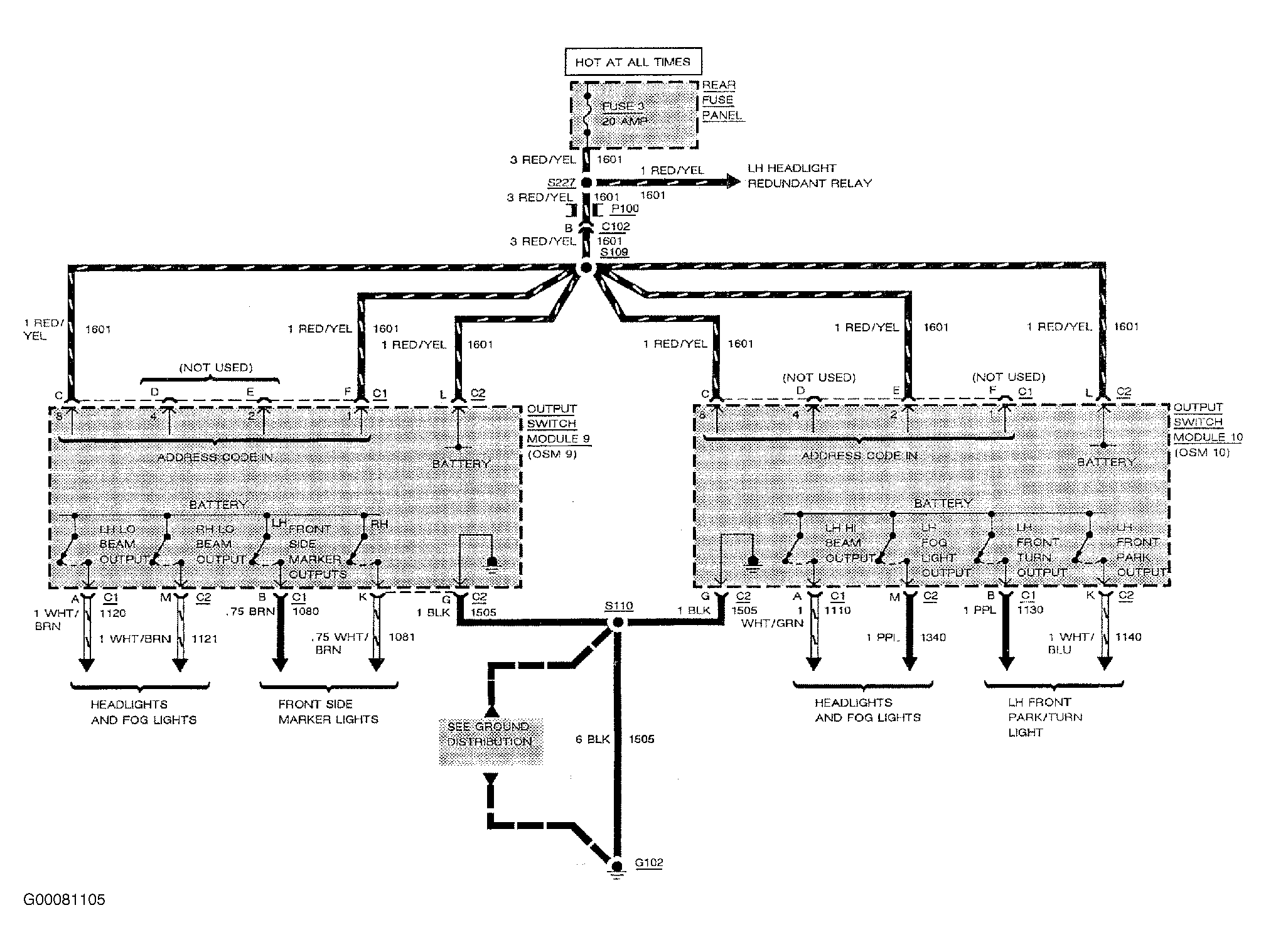

Fig 12: Power & Ground Circuit (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 13: Power & Ground Circuit (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
