Lighting System Check

Begin lighting system system diagnosis with Lighting System Check. See Fig 1 .To retrieve diagnositic codes, see SELF-DIAGNOSTIC SYSTEM .

NOTE: For lighting Chart A-1, see A CHARTS (LIGHTING) .

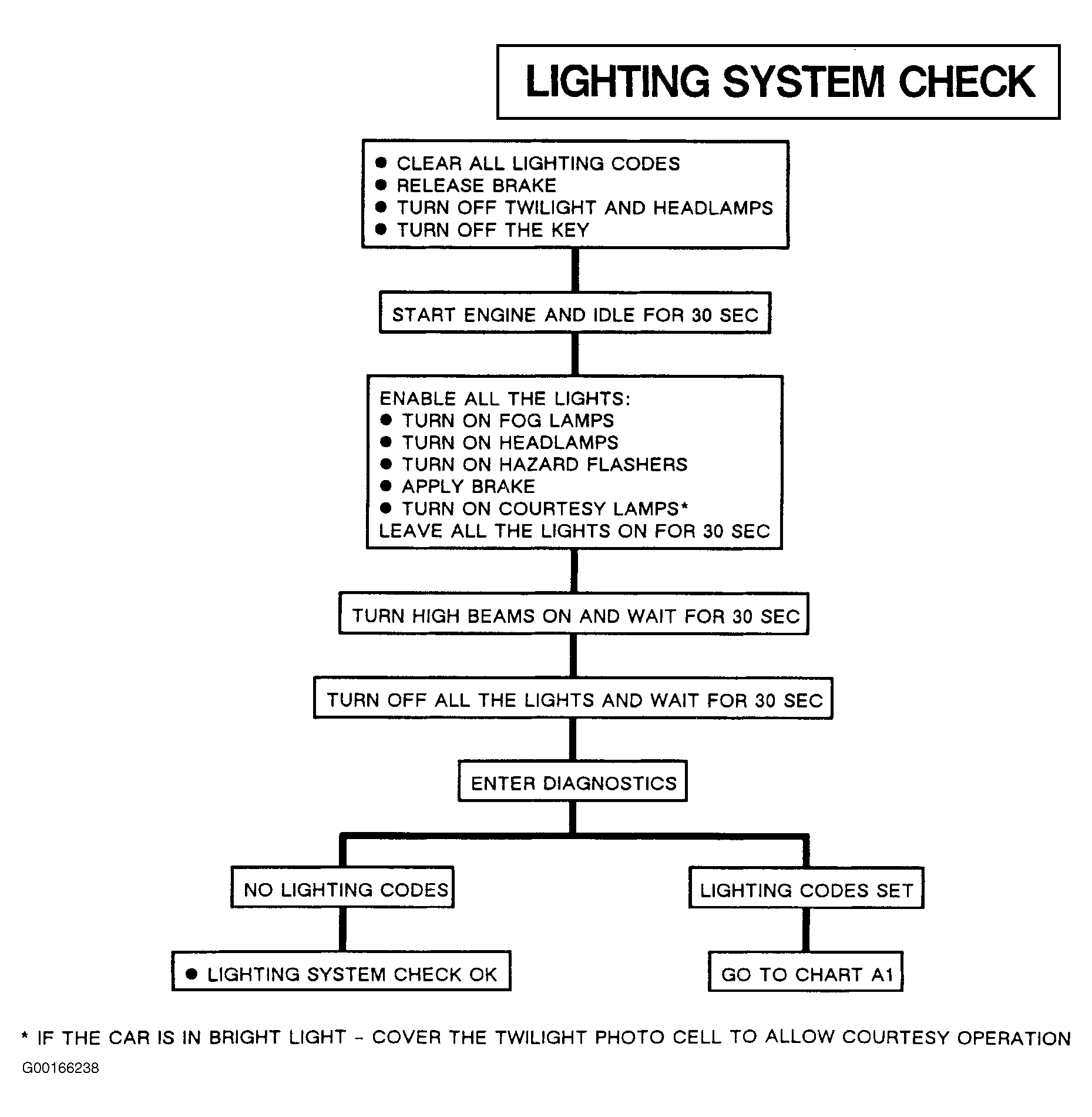

Fig 1: Lighting System Check

Courtesy of GENERAL MOTORS CORP.
